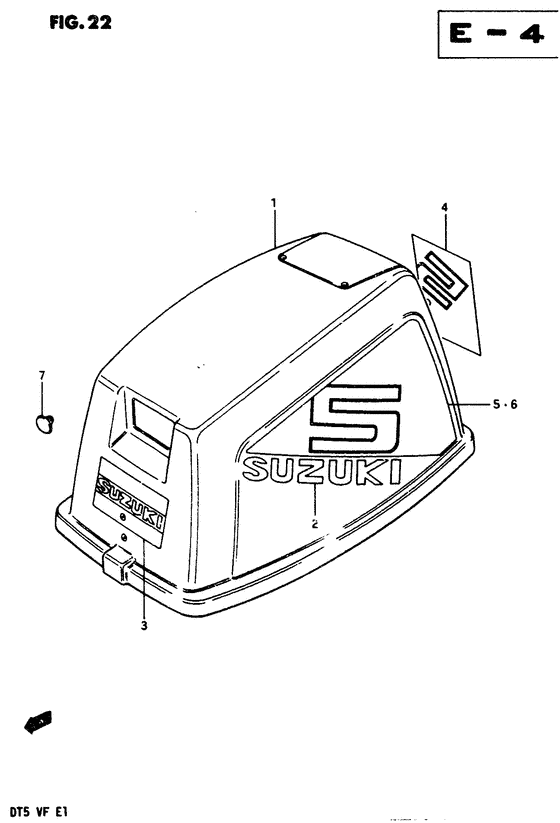

Engine cover 2 (E7, e13, e38, e40) Diagram Suzuki DT5 S/L
- Year
- 1984
- Model
- DT5
- Year
- 1984
- Engine
- 0501-451193~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan
- Colour
- Francois Whte №2, Arctic Silver (01T/02M)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61401-98860-02M
Cover set, engine
|
61401-98860-02M |
— | ||
|
2
|
2
61441-98560-000
Emblem, side
|
61441-98560-000 |
— | ||
| replacements | |||||
|
2
|
2
68111-47C10-019 EMBLEM |
68111-47C10-019 |
from US $11.89 |
||
|
2
|
2
68111-47C00-019
Emblem
|
68111-47C00-019 |
— | ||
|
3
|
3
61422-98560-000
Emblem, front
|
61422-98560-000 |
— | ||
|
4
|
4
61435-98560-000
Emblem, rear
|
61435-98560-000 |
— | ||
|
5
|
5
61443-98560-000
Decurl, side rh
|
61443-98560-000 |
— | ||
|
6
|
6
61453-98560-000
Decurl, side lh
|
61453-98560-000 |
— | ||
|
7
|
7
09250-08005-000 CAP(OD:20) |
09250-08005-000 |
from US $3.86 |
||
