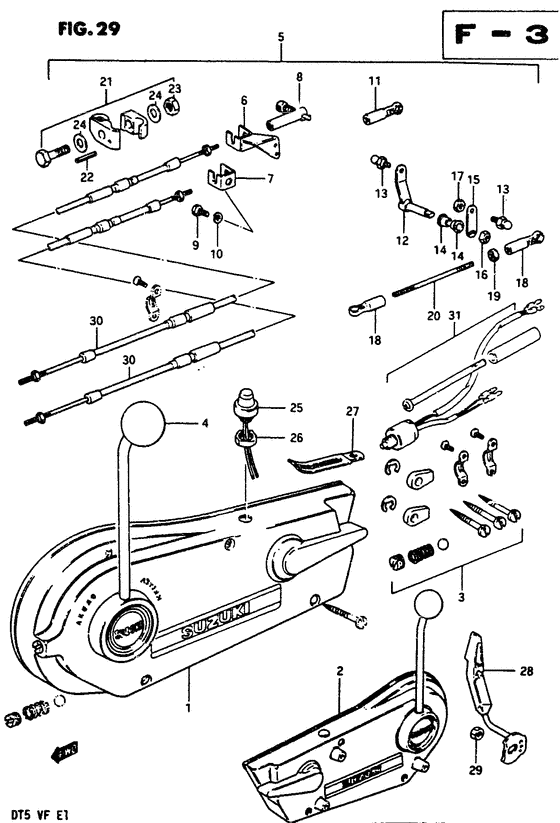

Remote control (Optional;) Diagram Suzuki DT5 S/L
- Year
- 1984
- Model
- DT5
- Year
- 1984
- Engine
- 0501-451193~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan
- Colour
- Francois Whte №2, Arctic Silver (01T/02M)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-95203-000
Box assy, remo-con stbd
|
67200-95203-000 |
— | ||
|
2
|
2
67200-95213-000
Box assy. remo-con port
|
67200-95213-000 |
— | ||
|
3
|
3
67300-95810-000
HOLDER SET,REMOCON CABLE
Holder set; |
67300-95810-000 |
— | ||
|
4
|
4
67214-95200-000
Knob remocon
|
67214-95200-000 |
— | ||
|
5
|
5
67130-98102-02M
Remote control parts assy
|
67130-98102-02M |
— | ||
| replacement | |||||
|
5
|
5
67130-98810-000 PARTS SET,REMOCONRemote control parts assy |
67130-98810-000 |
US $1,324.40 |
||
|
5
|
5
67130-98112-02M
Remote control parts assy
E7,e13,e38,e40 |
67130-98112-02M |
— | ||
| replacement | |||||
|
5
|
5
67130-98810-000 PARTS SET,REMOCONRemote control parts assy E7,e13,e38,e40 |
67130-98810-000 |
US $1,324.40 |
||
|
6
|
6
67340-98100-000
HOLDER,REMOCON CABLE(CLUTCH)
|
67340-98100-000 |
— | ||
|
7
|
7
67341-93400-000
Holder
|
67341-93400-000 |
— | ||
| replacement | |||||
|
7
|
7
67341-93401-000 HOLDER,REMOCON CABLE |
67341-93401-000 |
US $12.88 |
||
|
8
|
8
67440-93701-000 GUIDE,CLUTCH CABLEGuide, clutch cable |
67440-93701-000 |
US $26.40 |
||
|
9
|
9
09100-06113-000 BOLT(6X16) |
09100-06113-000 |
from US $3.04 |
||
|
10
|
10
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
11
|
11
67466-95200-000 CONNECTORConnector, throttle cable |
67466-95200-000 |
US $6.51 |
||
|
12
|
12
67410-98100-02M
Shaft
|
67410-98100-02M |
— | ||
| replacement | |||||
|
12
|
12
67410-98101-000
LEVER,REMOCON THROTTLE
|
67410-98101-000 |
— | ||
|
13
|
13
09119-06047-000 PIVOTPivot, ball Ball, pivot; |
09119-06047-000 |
from US $9.91 |
||
|
14
|
14
63225-93200-000 BUSH,HANDLE RODBush, handle rod Bushing; |
63225-93200-000 |
US $1.95 |
||
|
15
|
15
67417-98100-000
ARM,REMOCON THROTTLE
|
67417-98100-000 |
— | ||
|
16
|
16
09159-08026-000
Nut
|
09159-08026-000 |
— | ||
| replacement | |||||
|
16
|
16
09159-08059-000 NUTNut, clutch lever |
09159-08059-000 |
from US $3.65 |
||
|
17
|
17
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
17
|
17
09140-06001-000
Exhaust pipe nu
E7,e13,e38,e40 |
09140-06001-000 |
— | ||
|
18
|
18
67463-95200-000 CONNECTOR,THROTTLE CONTROLConnector, throttle rod |
67463-95200-000 |
US $2.58 |
||
|
19
|
19
09140-05001-000
Nut
|
09140-05001-000 |
— | ||
| replacement | |||||
|
19
|
19
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
|
20
|
20
67413-98100-000
ROD,THROTTLE CONTROL
|
67413-98100-000 |
— | ||
|
21
|
21
19190-98110-000
ARM SET,REMOTE CONTROL
|
19190-98110-000 |
— | ||
|
22
|
22
63227-93200-000 PIN,HANDLE RODPin, handle rod |
63227-93200-000 |
US $1.52 |
||
|
23
|
23
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
24
|
24
09160-06055-000 WASHER(7X12X1)Washer (7x12x1.0) |
09160-06055-000 |
from US $1.22 |
||
|
25
|
25
37800-93710-000
Switch assy, engine stop
|
37800-93710-000 |
— | ||
| replacement | |||||
|
25
|
25
37800-93714-000 SWITCH ASSY,ENGINE STOPSwitch assy, engine stop |
37800-93714-000 |
US $47.10 |
||
|
26
|
26
09140-14014-000
Nut
|
09140-14014-000 |
— | ||
| replacement | |||||
|
26
|
26
09140-14030-000
NUT
|
09140-14030-000 |
— | ||
|
27
|
27
09404-06401-000
Clamp, oil hose
Model qd/ve |
09404-06401-000 |
— | ||
| replacements | |||||
|
27
|
27
09404-06432-000
CLAMP(L:65)
Model qd/ve |
09404-06432-000 |
— | ||
|
27
|
27
09404-06206-000
CLAMP(L:45)
Model qd/ve |
09404-06206-000 |
— | ||
|
27
|
27
09404-06039-000 Clamp(L:65)Model qd/ve |
09404-06039-000 |
from US $1.82 |
||
|
27
|
27
09404-06031-000 Clamp,rsvr Tank Ovfl HoseModel qd/ve |
09404-06031-000 |
from US $1.37 |
||
|
27
|
27
09404-06201-000
Clamp
Model vf |
09404-06201-000 |
— | ||
| replacements | |||||
|
27
|
27
09404-06432-000
CLAMP(L:65)
Model vf |
09404-06432-000 |
— | ||
|
27
|
27
09404-06206-000
CLAMP(L:45)
Model vf |
09404-06206-000 |
— | ||
|
27
|
27
09404-06039-000 Clamp(L:65)Model vf |
09404-06039-000 |
from US $1.82 |
||
|
27
|
27
09404-06031-000 Clamp,rsvr Tank Ovfl HoseModel vf |
09404-06031-000 |
from US $1.37 |
||
|
28
|
28
21110-98101-02M
Lever, clutch
E7,e13,e38,e40 |
21110-98101-02M |
— | ||
| replacement | |||||
|
28
|
28
21110-98102-0ED
LEVER,CLUTCH(GRAY)
E7,e13,e38,e40 |
21110-98102-0ED |
— | ||
|
29
|
29
09159-08026-000
Nut
E7,e13,e38,e40 |
09159-08026-000 |
— | ||
| replacement | |||||
|
29
|
29
09159-08059-000 NUTNut, clutch lever E7,e13,e38,e40 |
09159-08059-000 |
from US $3.65 |
||
|
30
|
30
67320-95750-000
Cable, control
|
67320-95750-000 |
— | ||
| replacement | |||||
|
30
|
30
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M) |
67320-93J10-000 |
from US $56.81 |
||
|
30
|
30
67320-95740-000
Cable, control
|
67320-95740-000 |
— | ||
| replacement | |||||
|
30
|
30
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M) |
67320-93J10-000 |
from US $56.81 |
||
|
30
|
30
67320-95730-000
Cable, control
|
67320-95730-000 |
— | ||
| replacement | |||||
|
30
|
30
67320-93J20-000 CABLE ASSY,REMOCON(12F:3.7M) |
67320-93J20-000 |
from US $52.99 |
||
|
30
|
30
67320-95720-000
Cable, control
|
67320-95720-000 |
— | ||
| replacement | |||||
|
30
|
30
67320-93J30-000 CABLE ASSY,REMOCON(14F:4.2M) |
67320-93J30-000 |
from US $66.67 |
||
|
30
|
30
67320-95710-000
Cable, control
|
67320-95710-000 |
— | ||
| replacement | |||||
|
30
|
30
67320-93J40-000 CABLE ASSY,REMOCON(16F:4.8M) |
67320-93J40-000 |
from US $61.46 |
||
|
30
|
30
67320-95200-000
Cable, control
|
67320-95200-000 |
— | ||
| replacement | |||||
|
30
|
30
67320-93J50-000 CABLE ASSY,REMOCON(18F:5.4M) |
67320-93J50-000 |
from US $65.87 |
||
|
31
|
31
67140-95300-000
Attachment
Attachment, twin remo-con kit; |
67140-95300-000 |
— | ||
