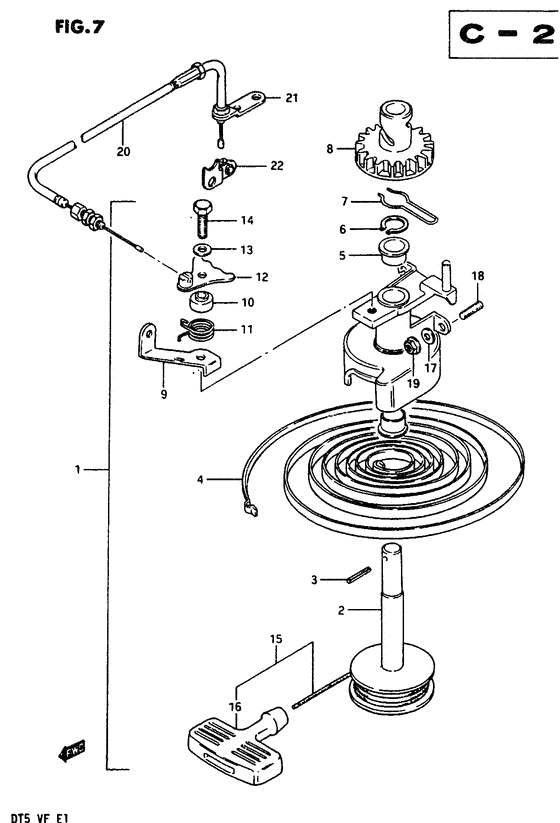

Starter Diagram Suzuki DT5 S/L
- Year
- 1984
- Model
- DT5
- Year
- 1984
- Engine
- 0501-451193~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan
- Colour
- Francois Whte №2, Arctic Silver (01T/02M)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18100-98114-000
Starter assy, recoil
|
18100-98114-000 |
— | ||
| replacement | |||||
|
1
|
1
18100-98115-000
Starter,recoil
|
18100-98115-000 |
— | ||
|
2
|
2
18121-98100-000
REEL
|
18121-98100-000 |
— | ||
|
3
|
3
18344-98100-000
Pin, starter
|
18344-98100-000 |
— | ||
|
4
|
4
18142-98300-000
SPRING,LEAF
|
18142-98300-000 |
— | ||
|
5
|
5
18253-98300-000 BUSHBushing Bushing; |
18253-98300-000 |
US $2.69 |
||
|
6
|
6
18255-98301-000 CIRCLIPCirclip |
18255-98301-000 |
US $2.76 |
||
|
7
|
7
18271-98100-000 SPRING,FRICTIONSpring, friction |
18271-98100-000 |
US $4.56 |
||
|
8
|
8
18261-98100-000
PINION,STARTER
|
18261-98100-000 |
— | ||
|
9
|
9
18291-98102-000
HOLDER,CABLE
|
18291-98102-000 |
— | ||
|
10
|
10
18283-98102-000
Collar
|
18283-98102-000 |
— | ||
|
11
|
11
18284-98101-000 SPRINGSpring, return; |
18284-98101-000 |
US $2.83 |
||
|
12
|
12
18280-98102-000
Stopper
|
18280-98102-000 |
— | ||
|
13
|
13
18335-98100-000
WASHER
|
18335-98100-000 |
— | ||
|
14
|
14
18332-98100-000
Bolt, cable hol
|
18332-98100-000 |
— | ||
| replacement | |||||
|
14
|
14
09100-06122-000
BOLT(6X20)
|
09100-06122-000 |
— | ||
|
15
|
15
18200-98100-000
Grip assy
|
18200-98100-000 |
— | ||
| replacement | |||||
|
15
|
15
18210-93002-000 GRIP ASSY |
18210-93002-000 |
from US $8.76 |
||
|
16
|
16
18210-93001-000
Grip, starter
|
18210-93001-000 |
— | ||
| replacement | |||||
|
16
|
16
18210-93002-000 GRIP ASSY |
18210-93002-000 |
from US $8.76 |
||
|
17
|
17
01517-06168-000
Bolt
|
01517-06168-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
18
|
18
01421-06128-000
Stud bolt 6x12
|
01421-06128-000 |
— | ||
| replacement | |||||
|
18
|
18
09108-06128-000 BOLT,STUD |
09108-06128-000 |
from US $3.15 |
||
|
19
|
19
08316-26068-000
Nut
|
08316-26068-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
20
|
20
18630-98101-000 CABLE ASSY,INTERLOCKCable assy, inter lock |
18630-98101-000 |
US $46.74 |
||
|
21
|
21
18642-98100-000
Holder, cable
|
18642-98100-000 |
— | ||
| replacement | |||||
|
21
|
21
18642-98101-000 HOLDER,CABLEHolder, interlock cable |
18642-98101-000 |
US $3.53 |
||
|
22
|
22
18650-98100-000
Arm, inter lock
|
18650-98100-000 |
— | ||
| replacement | |||||
|
22
|
22
18650-98101-000 ARM,INTERLOCKArm, interlock |
18650-98101-000 |
US $11.41 |
||
