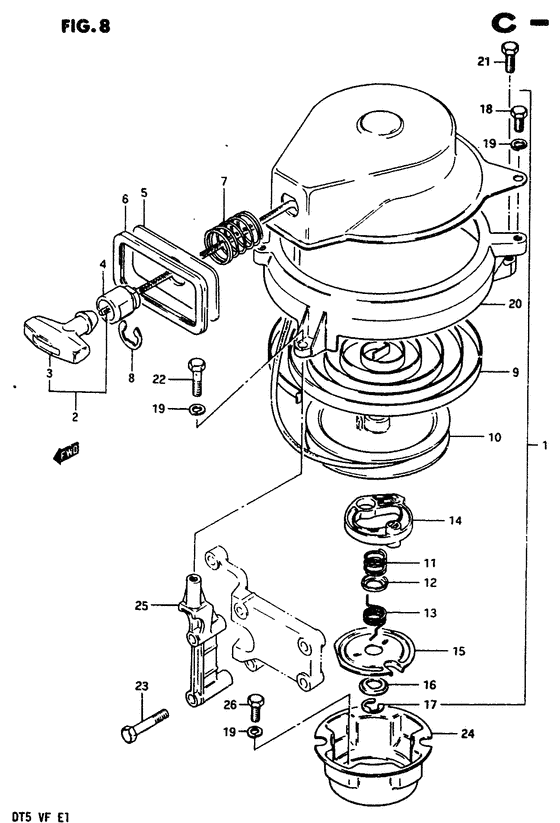

Starter (E7, e13, e38, e40) Diagram Suzuki DT5 S/L
- Year
- 1984
- Model
- DT5
- Year
- 1984
- Engine
- 0501-451193~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan
- Colour
- Francois Whte №2, Arctic Silver (01T/02M)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18100-98120-291
Starter assy, recoil
|
18100-98120-291 |
— | ||
|
2
|
2
18200-93500-000
Grip assy, starter
|
18200-93500-000 |
— | ||
| replacement | |||||
|
2
|
2
18210-93500-000
GRIP
|
18210-93500-000 |
— | ||
|
3
|
3
18210-93500-000
GRIP
|
18210-93500-000 |
— | ||
|
4
|
4
18181-98310-000
Guide rope
Guide, rope; |
18181-98310-000 |
— | ||
|
5
|
5
18191-98120-000
DEFENSER
Defincer; |
18191-98120-000 |
— | ||
|
6
|
6
18192-93000-000 PLATE,GUIDERubber, guide plate Seal rubber, defencer; |
18192-93000-000 |
US $6.96 |
||
|
7
|
7
18196-98120-000
Spring
|
18196-98120-000 |
— | ||
|
8
|
8
18183-93400-000
E ring,recoil s
|
18183-93400-000 |
— | ||
|
9
|
9
18142-98310-000
SPRING,RECOIL
Spring, recoil; |
18142-98310-000 |
— | ||
|
10
|
10
18121-98310-000
REEL
|
18121-98310-000 |
— | ||
|
11
|
11
18153-98310-000 SPRING,FRICTIONSpring, friction; |
18153-98310-000 |
US $0.92 |
||
|
12
|
12
18157-98320-000
COVER,SPRING
Cover, spring; |
18157-98320-000 |
— | ||
|
13
|
13
18155-98310-000
Spring return
Spring, return; |
18155-98310-000 |
— | ||
|
14
|
14
18131-98310-000
Pawl drive
|
18131-98310-000 |
— | ||
|
15
|
15
18151-98320-000
PLATE,FRICTION
Plate, friction; |
18151-98320-000 |
— | ||
|
16
|
16
18335-98310-000
WASHER
|
18335-98310-000 |
— | ||
|
17
|
17
18178-98310-000 CIRCLIPCirclip |
18178-98310-000 |
US $0.70 |
||
|
18
|
18
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
19
|
19
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
20
|
20
14312-98100-02M
Cover, magneto
|
14312-98100-02M |
— | ||
|
21
|
21
01107-06208-000
Bolt
|
01107-06208-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-06207-000 Bolt |
01500-06207-000 |
from US $0.76 |
||
|
22
|
22
09100-06033-000
BOLT(6X35)
|
09100-06033-000 |
— | ||
| replacement | |||||
|
22
|
22
64455-07L00-000 Bolt |
64455-07L00-000 |
from US $2.53 |
||
|
23
|
23
01517-06458-000
Bolt, brace
|
01517-06458-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-06457-000 Bolt |
01550-06457-000 |
from US $0.91 |
||
|
24
|
24
18411-98500-000
Cup, starter
|
18411-98500-000 |
— | ||
|
25
|
25
18711-98500-02M
Brace, recoil starter
|
18711-98500-02M |
— | ||
|
26
|
26
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
