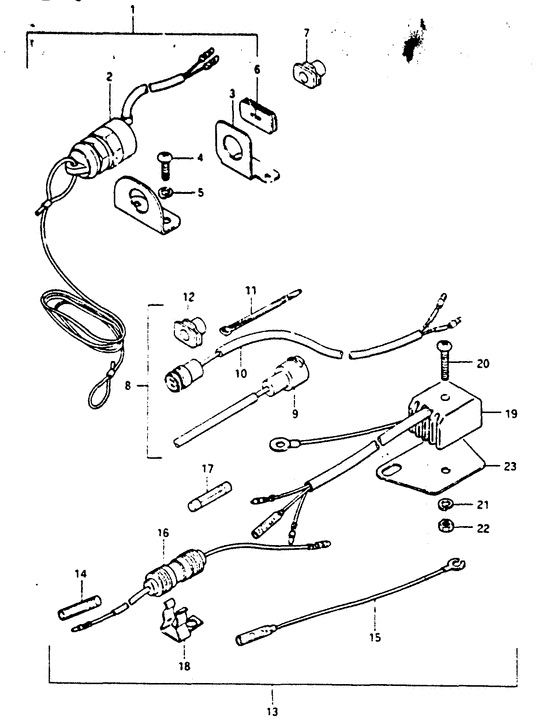

Electrical (Optional;) Diagram Suzuki DT6 S/L
- Year
- 1984
- Model
- DT6
- Year
- 1984
- Engine
- 00601-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 6
- Sales region
- General Export No.1 (P01)
- Colour
- Francois Whte №2 Arctic Silver (01T/02M)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37802-98300-000
Smitch set, emergency
Model qd/ve |
37802-98300-000 |
— | ||
|
1
|
1
37802-98100-000
Switch set, emergercy
Model vf |
37802-98100-000 |
— | ||
|
2
|
2
37820-93705-000
Switch assy, emergency
Model qd/ve |
37820-93705-000 |
— | ||
| replacement | |||||
|
2
|
2
37830-89X51-000
SWITCH ASSY,EMERGENCY & STOP
Model qd/ve |
37830-89X51-000 |
— | ||
|
2
|
2
37820-98110-000
Switch assy, emergency
Model vf |
37820-98110-000 |
— | ||
| replacement | |||||
|
2
|
2
37830-89X51-000
SWITCH ASSY,EMERGENCY & STOP
Model vf |
37830-89X51-000 |
— | ||
|
3
|
3
37950-98501-000
Bracket, emcrg
Bracket, emergency; Model vf |
37950-98501-000 |
— | ||
|
4
|
4
09125-04011-000
SCREW(4X16)
|
09125-04011-000 |
— | ||
|
5
|
5
09162-04002-000
Locker washer
|
09162-04002-000 |
— | ||
|
6
|
6
37824-93900-000
Grommet
Model vf |
37824-93900-000 |
— | ||
| replacement | |||||
|
6
|
6
37824-92D00-000
GROMMET
Model vf |
37824-92D00-000 |
— | ||
|
7
|
7
37824-98100-000
Grommet
Model vf |
37824-98100-000 |
— | ||
|
8
|
8
39600-93900-000
Receptacle set
Consent assy, lamp; |
39600-93900-000 |
— | ||
| replacements | |||||
|
8
|
8
39600-93910-000 Receptacle setConsent assy, lamp; |
39600-93910-000 |
US $45.96 |
||
|
8
|
8
39600-93912-000 Receptacle SetConsent assy, lamp; |
39600-93912-000 |
US $53.97 |
||
|
9
|
9
39602-92900-000
Plug, lighting
|
39602-92900-000 |
— | ||
|
10
|
10
39601-93902-000
Receptacle assy, lighting
|
39601-93902-000 |
— | ||
| replacements | |||||
|
10
|
10
39601-95D00-000
RECEPTACLE
|
39601-95D00-000 |
— | ||
|
10
|
10
39601-95D01-000 Receptacle |
39601-95D01-000 |
US $35.70 |
||
|
11
|
11
36632-95501-000
Clamp, ptt pipe
|
36632-95501-000 |
— | ||
| replacements | |||||
|
11
|
11
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
11
|
11
09407-20404-000
Clamp
|
09407-20404-000 |
— | ||
|
11
|
11
09407-20405-000
Clamp
|
09407-20405-000 |
— | ||
|
12
|
12
39603-93900-000
GROMMET
|
39603-93900-000 |
— | ||
|
13
|
13
32801-98100-000
Rectifier set
|
32801-98100-000 |
— | ||
| replacements | |||||
|
13
|
13
32801-98102-000
RECTIFIER SET
|
32801-98102-000 |
— | ||
|
13
|
13
32801-98103-000 Rectifier Set |
32801-98103-000 |
US $113.34 |
||
|
14
|
14
37132-93700-000 CONNECTOR,WIREConnector, lead wire Connector, read wire; |
37132-93700-000 |
US $1.62 |
||
|
15
|
15
36898-93300-000
Lead wire
Read wire, consent earth; |
36898-93300-000 |
— | ||
|
16
|
16
36740-95252-000
Case, fuse
|
36740-95252-000 |
— | ||
| replacement | |||||
|
16
|
16
36740-95253-000 CASE ASSY,FUSE |
36740-95253-000 |
US $13.14 |
||
|
17
|
17
09481-20001-000 FUSE(20A)Fuse (20a); |
09481-20001-000 |
from US $1.28 |
||
|
18
|
18
36791-95200-000 HOLDER,FUSE CASEHolder, fuse Holder, fuse case; |
36791-95200-000 |
US $2.58 |
||
|
19
|
19
32800-95720-000
Rectifire
|
32800-95720-000 |
— | ||
| replacements | |||||
|
19
|
19
32800-95D01-000
Rectifier Assy
|
32800-95D01-000 |
— | ||
|
19
|
19
32800-95D02-000 Rectifier Assy |
32800-95D02-000 |
from US $60.80 |
||
|
20
|
20
02112-05258-000
Screw
|
02112-05258-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-05257-000 SCREW |
02112-05257-000 |
from US $0.77 |
||
|
21
|
21
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
22
|
22
08310-11058-000
Nut
|
08310-11058-000 |
— | ||
| replacement | |||||
|
22
|
22
08310-00057-000 NUT |
08310-00057-000 |
from US $0.32 |
||
|
23
|
23
32890-98100-000
STAY,RECTIFIER
Stay, rectifier; |
32890-98100-000 |
— | ||
