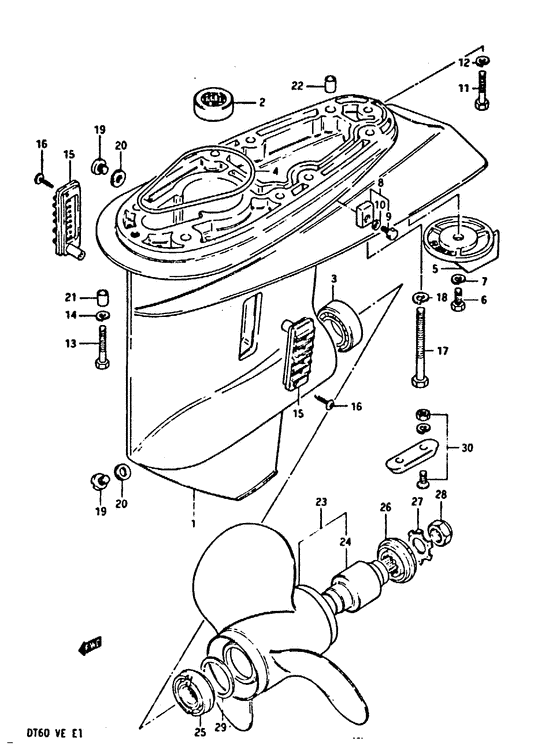

Cear case Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55100-95310-02M
Case assy, gear
|
55100-95310-02M |
— | ||
| replacements | |||||
|
1
|
1
09116-06094-000 BOLT(6X15) |
09116-06094-000 |
US $0.81 |
||
|
1
|
1
17635-95301-000
FILTER,SUB WATER
|
17635-95301-000 |
— | ||
|
2
|
2
09263-26008-000
Bearing (26*34*30)
|
09263-26008-000 |
— | ||
| replacement | |||||
|
2
|
2
09263-26023-000 BEARING(26X34X30)Bearing, pinion |
09263-26023-000 |
from US $38.40 |
||
|
3
|
3
09265-35001-000 BEARING(35X72X24.25)Bearing, propeller shaft |
09265-35001-000 |
US $56.30 |
||
|
4
|
4
55122-95300-000
Seal gear case
|
55122-95300-000 |
— | ||
|
5
|
5
55125-95300-02M
Trim tab
|
55125-95300-02M |
— | ||
| replacement | |||||
|
5
|
5
55125-95500-000 TAB ZINC ANODE,TRIM |
55125-95500-000 |
US $70.04 |
||
|
6
|
6
09100-08215-000 BOLT(8X16) |
09100-08215-000 |
from US $2.52 |
||
|
7
|
7
09162-08003-000
Lock washer
|
09162-08003-000 |
— | ||
| replacement | |||||
|
7
|
7
09162-08007-000 WASHER,LOCKLock washer |
09162-08007-000 |
from US $2.35 |
||
|
8
|
8
55320-95310-000
Zinc set
Zinc set, protection; |
55320-95310-000 |
— | ||
| replacement | |||||
|
8
|
8
55320-95311-000 ZINC SET,PROTECTIONZinc set, protection; |
55320-95311-000 |
US $14.78 |
||
|
9
|
9
09100-06019-000
Bolt
|
09100-06019-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
10
|
10
09160-06015-000
Washer
|
09160-06015-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
11
|
11
09100-08214-000
Bolt (8*50)
S/l type |
09100-08214-000 |
— | ||
| replacement | |||||
|
11
|
11
09118-08106-000 BOLT(8X50)Bolt (8x50) S/l type |
09118-08106-000 |
from US $2.43 |
||
|
12
|
12
09162-08003-000
Lock washer
S/l type |
09162-08003-000 |
— | ||
| replacement | |||||
|
12
|
12
09162-08007-000 WASHER,LOCKLock washer S/l type |
09162-08007-000 |
from US $2.35 |
||
|
13
|
13
09100-08216-000
Bolt
S/l type |
09100-08216-000 |
— | ||
| replacement | |||||
|
13
|
13
09100-08160-000 BOLT(8X45)Bolt (8*45) S/l type |
09100-08160-000 |
US $29.80 |
||
|
14
|
14
09162-08003-000
Lock washer
S/l type |
09162-08003-000 |
— | ||
| replacement | |||||
|
14
|
14
09162-08007-000 WASHER,LOCKLock washer S/l type |
09162-08007-000 |
from US $2.35 |
||
|
15
|
15
17631-95201-000
Filter, water
|
17631-95201-000 |
— | ||
| replacements | |||||
|
15
|
15
03112-04309-000 SCREW |
03112-04309-000 |
from US $0.76 |
||
|
15
|
15
17631-94600-000 FILTER,WATER |
17631-94600-000 |
US $12.95 |
||
|
16
|
16
03142-04259-000 SCREW |
03142-04259-000 |
from US $0.80 |
||
|
17
|
17
09100-10175-000
Bolt transom
Bolt (10*100); |
09100-10175-000 |
— | ||
| replacement | |||||
|
17
|
17
09117-10024-XC0 BOLT(10X100)Bolt (10*100); |
09117-10024-XC0 |
US $226.30 |
||
|
18
|
18
09162-10002-000
Lock washer
|
09162-10002-000 |
— | ||
| replacement | |||||
|
18
|
18
09162-10005-000 WASHER,LOCKLock washer |
09162-10005-000 |
from US $1.28 |
||
|
19
|
19
09248-10004-000
Plug, drain
|
09248-10004-000 |
— | ||
| replacement | |||||
|
19
|
19
09248-10008-000 PLUG(10X7.5) |
09248-10008-000 |
from US $1.28 |
||
|
20
|
20
09168-10022-000 GASKET(10X17X1.5)Gasket (10*17*1.5); |
09168-10022-000 |
from US $1.28 |
||
|
21
|
21
09206-11001-000
Dowel pin
|
09206-11001-000 |
— | ||
| replacement | |||||
|
21
|
21
09206-11016-000
PIN(8.4X11X12)
|
09206-11016-000 |
— | ||
|
22
|
22
09206-11005-000
Dowel pin (od:11, l:20)
|
09206-11005-000 |
— | ||
| replacement | |||||
|
22
|
22
09206-11017-000 PIN(8.4X11X20)Pin (8.4x11x20) |
09206-11017-000 |
from US $2.56 |
||
|
23
|
23
58100-94301-01T
Propeller (3x11-1/2x9)
S900 |
58100-94301-01T |
— | ||
| replacements | |||||
|
23
|
23
58100-88L03-019
PROPELLER(3X11-1/2X9)
S900 |
58100-88L03-019 |
— | ||
|
23
|
23
58100-88LC0-019 Propeller Comp(3X11-1/2X9)S900 |
58100-88LC0-019 |
US $185.84 |
||
|
23
|
23
58100-95211-01T
Propeller (3x11-1/2x10)
S1000 |
58100-95211-01T |
— | ||
| replacements | |||||
|
23
|
23
58100-88L13-019
PROPELLER(3X11-1/2X10)
S1000 |
58100-88L13-019 |
— | ||
|
23
|
23
58100-88LD0-019 Propeller Comp(3X11-1/2X10)S1000 |
58100-88LD0-019 |
US $185.84 |
||
|
23
|
23
58100-95221-01T
Propeller (3x11-1/2x11)
S1100 |
58100-95221-01T |
— | ||
| replacements | |||||
|
23
|
23
58100-88L23-019
PROPELLER(3X11-1/2X11)
S1100 |
58100-88L23-019 |
— | ||
|
23
|
23
58100-88LE0-019 Propeller Comp(3X11-1/2X11)S1100 |
58100-88LE0-019 |
US $185.84 |
||
|
23
|
23
58100-95392-01T
Propeller (3x11-5/8x12)
S1200 |
58100-95392-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-88LA0-019 PROPELLER(3X11-5/8X12)S1200 |
58100-88LA0-019 |
US $185.84 |
||
|
23
|
23
58100-94312-01T
Propeller (3x11-1/2x13)
S1301 |
58100-94312-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-88LB0-019 PROPELLER(3X11-1/2X13)S1301 |
58100-88LB0-019 |
US $185.84 |
||
|
23
|
23
58100-95352-01T
Propeller (3x11-3/8x14)
S1400 |
58100-95352-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-88L52-019 PROPELLER(3X11-3/8X14)S1400 |
58100-88L52-019 |
from US $217.81 |
||
|
23
|
23
58100-95362-01T
Propeller (3x11-1/4x15)
S1500 |
58100-95362-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-88L62-019
PROPELLER(3X11-1/4X15)
S1500 |
58100-88L62-019 |
— | ||
|
23
|
23
58100-95372-01T
Propeller (3x11-1/8x16)
S1600 |
58100-95372-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-88L72-019
PROPELLER(3X11-1/8X16)
S1600 |
58100-88L72-019 |
— | ||
|
23
|
23
58100-95381-01T
Propeller (3x11x17)
S1700 |
58100-95381-01T |
— | ||
| replacements | |||||
|
23
|
23
58100-88L83-019
PROPELLER(3X11X17)
S1700 |
58100-88L83-019 |
— | ||
|
23
|
23
58100-88LF0-019 Propeller Comp(3X11X17)S1700 |
58100-88LF0-019 |
US $405.84 |
||
|
24
|
24
58120-95320-000
Bush, propeller
|
58120-95320-000 |
— | ||
| replacement | |||||
|
24
|
24
58120-88L01-000 BUSH,PROPELLER |
58120-88L01-000 |
US $54.72 |
||
|
25
|
25
57632-95310-000
STOPPER,PROPELLER BUSH
|
57632-95310-000 |
— | ||
|
26
|
26
57633-94300-000
SPACER,PROPELLER NUT
Spacer, propeller nut; |
57633-94300-000 |
— | ||
| replacement | |||||
|
26
|
26
57633-94301-000 SPACER,PROPELLER NUTSpacer, propeller nut; |
57633-94301-000 |
US $40.48 |
||
|
27
|
27
57635-95300-000 WASHER,PROPELLER NUT LOCKWasher, propeller nut lock; |
57635-95300-000 |
US $2.83 |
||
|
28
|
28
09159-18004-000 NUT |
09159-18004-000 |
from US $15.42 |
||
|
29
|
29
09160-32006-000
WASHER(32.6X45X1)
|
09160-32006-000 |
— | ||
|
30
|
30
55300-95500-000 ZINC ASSY,PROTECTIONZinc, protection Zinc, protector; Opt |
55300-95500-000 |
from US $15.84 |
||
