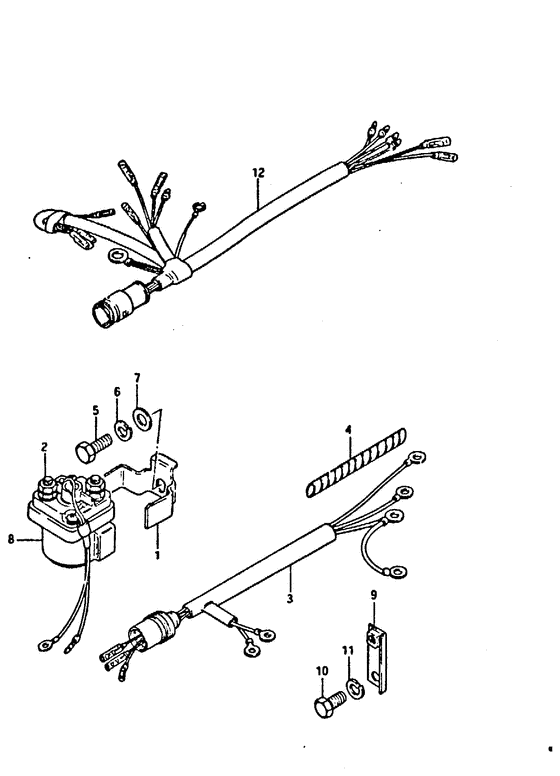

Electrical Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31805-96350-000 BRACKET,STARTING MOTOR RELAYBracket, starter relay Bracket, starting motor; |
31805-96350-000 |
US $2.08 |
||
|
2
|
2
31800-95502-000
Relay, starter
|
31800-95502-000 |
— | ||
| replacement | |||||
|
2
|
2
31800-94401-000 RELAY ASSY,STARTING MOTORRelay, starter |
31800-94401-000 |
US $120.80 |
||
|
3
|
3
33830-95302-000
Cable assy, trim
|
33830-95302-000 |
— | ||
|
4
|
4
34863-94500-000
Tube remo-con h
L:50 |
34863-94500-000 |
— | ||
| replacement | |||||
|
4
|
4
33833-91J00-000 TUBE,SWITCH LEAD(L:250)L:50 |
33833-91J00-000 |
US $4.64 |
||
|
5
|
5
01107-06208-000
Bolt
|
01107-06208-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-06207-000 Bolt |
01500-06207-000 |
from US $0.76 |
||
|
6
|
6
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
7
|
7
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
8
|
8
38422-94510-000
Damper
|
38422-94510-000 |
— | ||
|
9
|
9
38414-95300-000
Bracket trim re
|
38414-95300-000 |
— | ||
|
10
|
10
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
11
|
11
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
12
|
12
36610-95320-000
Wiring harness assy
E7, e13, e40 |
36610-95320-000 |
— | ||
