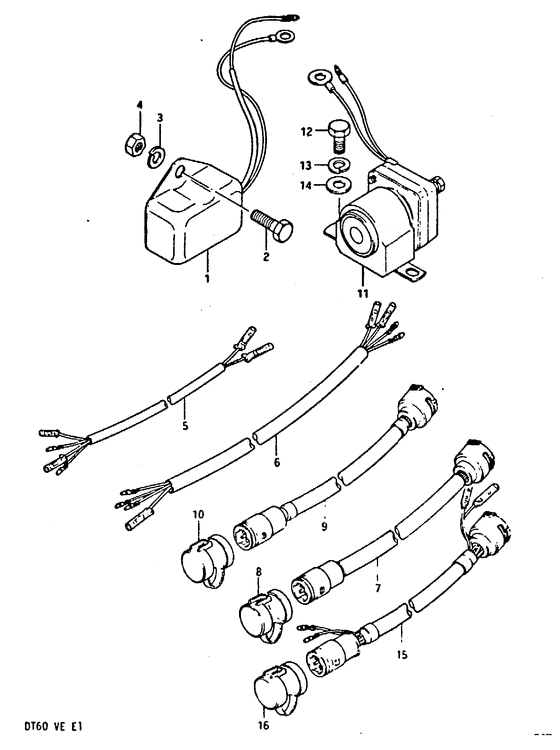

Electrical (Optional;) Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32500-95721-000
Regulator assy, voltage
|
32500-95721-000 |
— | ||
| replacement | |||||
|
1
|
1
32500-95722-000 REGULATOR ASSY,VOLTAGERegulator assy, voltage |
32500-95722-000 |
US $809.60 |
||
|
2
|
2
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
3
|
3
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
4
|
4
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
4
|
4
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
5
|
5
37853-95251-000
Wire harness,tr
Wiring harness, toggle switch; |
37853-95251-000 |
— | ||
|
6
|
6
36640-95500-000
Wire harness
Wiring harness, relay control; |
36640-95500-000 |
— | ||
|
7
|
7
36620-95202-000
Wiring harness, extension
|
36620-95202-000 |
— | ||
| replacement | |||||
|
7
|
7
36620-87D20-000 WIRE,REMOCON EXTENSION(L:5000)Wiring harness, extension |
36620-87D20-000 |
US $133.95 |
||
|
8
|
8
36631-94300-000 CAP,REMOTE CONTROL HARNESS |
36631-94300-000 |
US $2.98 |
||
|
9
|
9
36620-95300-000
Wiring harness, extension
|
36620-95300-000 |
— | ||
| replacement | |||||
|
9
|
9
36620-95302-000 WIRE,REMOCON EXTENSION(L:2000)Wiring harness, extension |
36620-95302-000 |
US $96.78 |
||
|
10
|
10
36631-94300-000 CAP,REMOTE CONTROL HARNESS |
36631-94300-000 |
US $2.98 |
||
|
11
|
11
38410-94540-000
RELAY ASSY,TRIM
Relay, down in trim; E7, e13, e40 c:e1, e17, e28 |
38410-94540-000 |
— | ||
|
12
|
12
09100-06019-000
Bolt
E7, e13, e40 c:e1, e17, e28 |
09100-06019-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-06167-000 BoltE7, e13, e40 c:e1, e17, e28 |
01550-06167-000 |
from US $0.68 |
||
|
13
|
13
09162-06001-000
Lock washer
E7, e13, e40 c:e1, e17, e28 |
09162-06001-000 |
— | ||
| replacement | |||||
|
13
|
13
09162-06006-000 WASHER,LOCKLock washer E7, e13, e40 c:e1, e17, e28 |
09162-06006-000 |
from US $2.35 |
||
|
14
|
14
09160-06015-000
Washer
E7, e13, e40 c:e1, e17, e28 |
09160-06015-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-06082-000 WASHER(6.5X13X1.0)E7, e13, e40 c:e1, e17, e28 |
09160-06082-000 |
from US $0.96 |
||
|
15
|
15
36620-95320-000
Wiring harness, ext 9 wires
|
36620-95320-000 |
— | ||
|
16
|
16
36631-94300-000 CAP,REMOTE CONTROL HARNESS |
36631-94300-000 |
US $2.98 |
||
