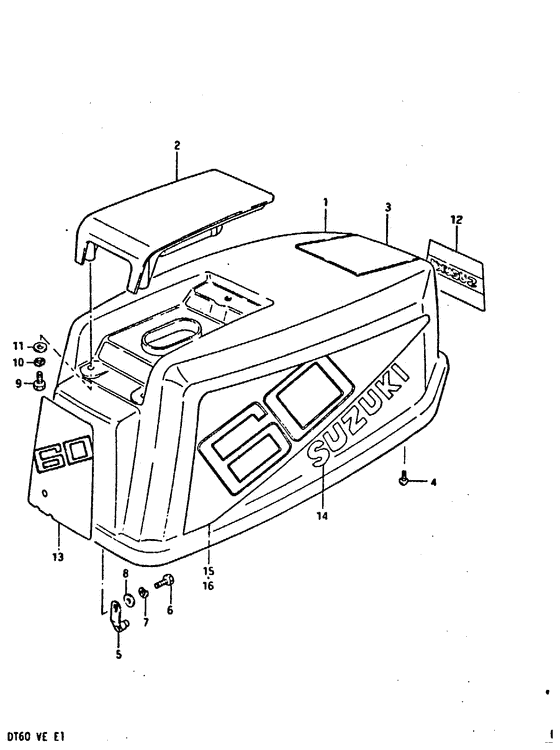

Engine cover (E7, e13, e40) Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61402-95880-02M
Cover set, engine
|
61402-95880-02M |
— | ||
| replacement | |||||
|
1
|
1
61631-95310-000
HOOK,LWR ENGINE COVER
|
61631-95310-000 |
— | ||
|
2
|
2
61431-95201-02M
Handle, tilt up
|
61431-95201-02M |
— | ||
| replacement | |||||
|
2
|
2
61431-95202-0ED
HANDLE,TILT UP
|
61431-95202-0ED |
— | ||
|
3
|
3
61481-95310-02M
Cap, engine cover
|
61481-95310-02M |
— | ||
|
4
|
4
03242-04169-000
Screw
|
03242-04169-000 |
— | ||
| replacement | |||||
|
4
|
4
03242-0416B-000 SCREW |
03242-0416B-000 |
from US $2.88 |
||
|
5
|
5
61610-96300-000
Fastener
|
61610-96300-000 |
— | ||
| replacement | |||||
|
5
|
5
61610-96302-000
FASTENER
|
61610-96302-000 |
— | ||
|
6
|
6
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
7
|
7
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
8
|
8
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
9
|
9
09100-06019-000
Bolt
|
09100-06019-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
10
|
10
09162-06001-000
Lock washer
|
09162-06001-000 |
— | ||
| replacement | |||||
|
10
|
10
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
11
|
11
09160-06036-000 WASHER(6.5X18X1.5)Washer, 6.5x18x1.5 |
09160-06036-000 |
from US $1.60 |
||
|
12
|
12
61421-95251-000
Mark
|
61421-95251-000 |
— | ||
|
13
|
13
61435-95361-000
Mark
Mark, emblem rear; |
61435-95361-000 |
— | ||
|
14
|
14
61441-95360-000
Emblem, suzuki
|
61441-95360-000 |
— | ||
| replacement | |||||
|
14
|
14
68181-17D00-019 EMBLEM,COWLING UNDER,LEmblem, side |
68181-17D00-019 |
from US $19.14 |
||
|
15
|
15
61443-95361-000
Mark
|
61443-95361-000 |
— | ||
|
16
|
16
61453-95361-000
Mark
|
61453-95361-000 |
— | ||
