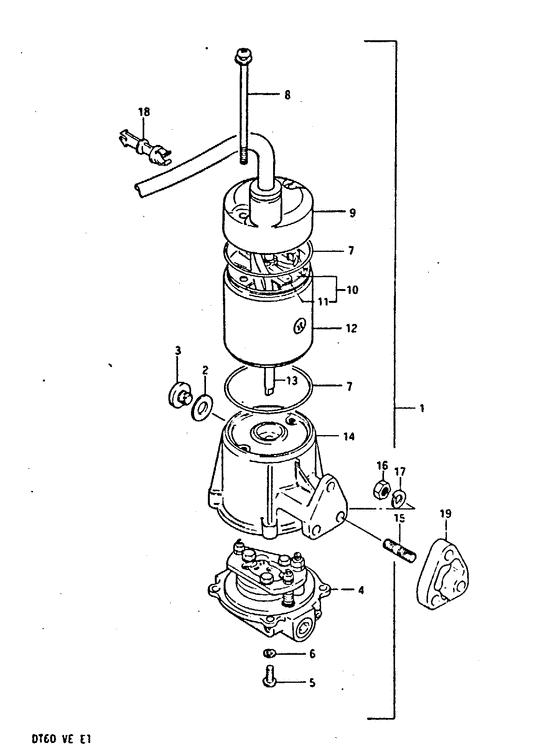

Power unit Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48500-95200-02M
Power trim/tilt assy
|
48500-95200-02M |
— | ||
| replacements | |||||
|
1
|
1
33832-95511-000 CABLE ASSY,PTT RELAYCable, trim ground |
33832-95511-000 |
US $13.03 |
||
|
1
|
1
38410-94552-000 RELAY ASSY,TRIM |
38410-94552-000 |
US $131.01 |
||
|
1
|
1
48500-95550-0EP POWER UNIT,POWER TRIM(BLACK) |
48500-95550-0EP |
US $1,558.32 |
||
|
2
|
2
09168-10022-000 GASKET(10X17X1.5)Gasket (10*17*1.5); |
09168-10022-000 |
from US $1.28 |
||
|
3
|
3
09248-10004-000
Plug, drain
|
09248-10004-000 |
— | ||
| replacement | |||||
|
3
|
3
09248-10008-000 PLUG(10X7.5) |
09248-10008-000 |
from US $1.28 |
||
|
4
|
4
48502-95200-000
Pump/vf-ve booy assy
|
48502-95200-000 |
— | ||
| replacement | |||||
|
4
|
4
48502-94530-000
PUMP & VALVE BODY ASSY
|
48502-94530-000 |
— | ||
|
5
|
5
09125-05029-000
Screw
|
09125-05029-000 |
— | ||
| replacement | |||||
|
5
|
5
09125-05074-000
SCREW(5X16)
|
09125-05074-000 |
— | ||
|
6
|
6
09160-05010-000
Washer
|
09160-05010-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-05029-000 WASHER(5.5X12X0.8) |
09160-05029-000 |
from US $1.12 |
||
|
7
|
7
09280-70006-000 O ring |
09280-70006-000 |
US $6.04 |
||
| replacement | |||||
|
7
|
7
09280-70005-000 O RING(D:3.1,ID:69.4)Band (d:3.1 id:69.4) |
09280-70005-000 |
from US $3.94 |
||
|
8
|
8
31281-94520-000
Screw
|
31281-94520-000 |
— | ||
| replacement | |||||
|
8
|
8
31281-94510-000 BOLT,THROUGHBolt, housing |
31281-94510-000 |
US $11.04 |
||
|
9
|
9
31170-94520-02M
Cover, upper
|
31170-94520-02M |
— | ||
|
10
|
10
31173-94520-000
Brush holder assy
|
31173-94520-000 |
— | ||
|
11
|
11
31133-94520-000
Brush
|
31133-94520-000 |
— | ||
| replacement | |||||
|
11
|
11
31133-94521-000
Brush
|
31133-94521-000 |
— | ||
|
12
|
12
31110-94520-02M
Yoke assy
|
31110-94520-02M |
— | ||
|
13
|
13
31311-94520-000
Armature
|
31311-94520-000 |
— | ||
|
14
|
14
48570-94521-02M
Reservoir assy
|
48570-94521-02M |
— | ||
|
15
|
15
09108-08137-000 BOLT,STUDBolt, stud Stud bolt; |
09108-08137-000 |
from US $8.23 |
||
|
16
|
16
09140-08003-000
Nut, trim cylinder ran
|
09140-08003-000 |
— | ||
| replacements | |||||
|
16
|
16
09140-08023-XC0 NUT |
09140-08023-XC0 |
from US $1.93 |
||
|
16
|
16
09140-08016-000
Nut
|
09140-08016-000 |
— | ||
|
17
|
17
09162-08003-000
Lock washer
|
09162-08003-000 |
— | ||
| replacement | |||||
|
17
|
17
09162-08007-000 WASHER,LOCKLock washer |
09162-08007-000 |
from US $2.35 |
||
|
18
|
18
33835-95500-000
Clamp,motor cab
Clamp, ptt motor cable; |
33835-95500-000 |
— | ||
|
19
|
19
48131-95200-000
Spacer, power u
Spacer, power unit; |
48131-95200-000 |
— | ||
