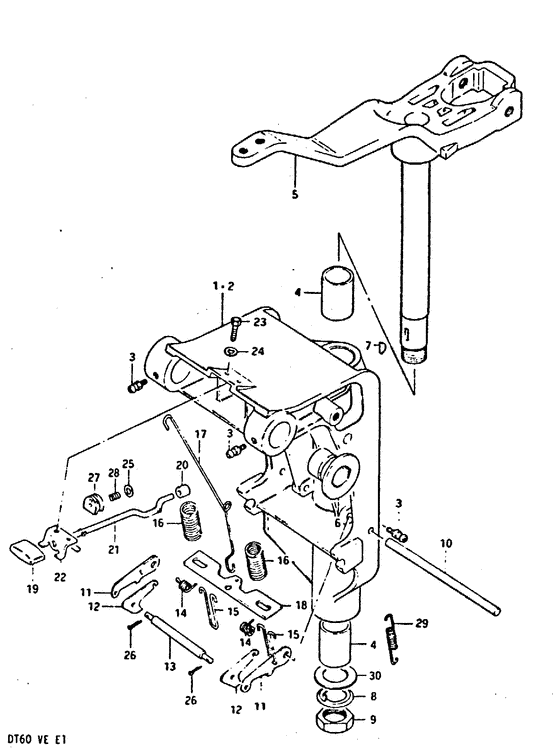

Swivel bracket Diagram Suzuki DT60C S/L/LL/UL
- Year
- 1984
- Model
- DT60C
- Year
- 1984
- Engine
- 06001-401001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43111-95250-02M
Bracket, swivel
L/ll/ul type |
43111-95250-02M |
— | ||
|
2
|
2
43111-95750-02M
Bracket, swivel
S type |
43111-95750-02M |
— | ||
|
3
|
3
22511-99000-000
Grease nipple
|
22511-99000-000 |
— | ||
| replacement | |||||
|
3
|
3
22511-99011-000 NIPPLE,GREASE |
22511-99011-000 |
from US $2.40 |
||
|
4
|
4
09306-26005-000
Bush, steering
|
09306-26005-000 |
— | ||
|
5
|
5
43750-95250-02M
Bracket, steering
L/ll/ul type |
43750-95250-02M |
— | ||
| replacement | |||||
|
5
|
5
43750-95254-0ED
BRACKET,STEERING(GRAY)
L/ll/ul type |
43750-95254-0ED |
— | ||
|
5
|
5
43750-95750-02M
Bracket, steering
S type |
43750-95750-02M |
— | ||
| replacement | |||||
|
5
|
5
43750-95754-0ED
BRACKET,STEERING(GRAY)
S type |
43750-95754-0ED |
— | ||
|
6
|
6
09306-22002-000
Bushing
|
09306-22002-000 |
— | ||
| replacement | |||||
|
6
|
6
43211-95250-000
BUSH,CLAMP SHAFT SWIVEL
|
43211-95250-000 |
— | ||
|
7
|
7
09420-05003-000 KEY |
09420-05003-000 |
US $45.30 |
||
|
8
|
8
09166-25004-000
Washer, pilot shaft
|
09166-25004-000 |
— | ||
|
9
|
9
09140-24008-000
Nut, pilot shaft
|
09140-24008-000 |
— | ||
| replacement | |||||
|
9
|
9
09140-24010-000 NUT |
09140-24010-000 |
US $1.89 |
||
|
10
|
10
45245-95201-000
Shaft, reverse lock arm
E7, e13, e40, ce1, ce17, ce28 |
45245-95201-000 |
— | ||
| replacement | |||||
|
10
|
10
45245-95202-000
SHAFT,REVERSE LOCK ARM
E7, e13, e40, ce1, ce17, ce28 |
45245-95202-000 |
— | ||
|
11
|
11
45241-95201-000
Link, reverse lock arm
E7, e13, e40, ce1, ce17, ce28 |
45241-95201-000 |
— | ||
| replacement | |||||
|
11
|
11
45241-95202-000
Link lock arm
E7, e13, e40, ce1, ce17, ce28 |
45241-95202-000 |
— | ||
|
12
|
12
45231-95200-000
Arm, reverse lock
E7, e13, e40, ce1, ce17, ce28 |
45231-95200-000 |
— | ||
| replacement | |||||
|
12
|
12
45231-95201-000
Arm reverse loc
E7, e13, e40, ce1, ce17, ce28 |
45231-95201-000 |
— | ||
|
13
|
13
45243-95201-000
PIN
E7, e13, e40, ce1, ce17, ce28 |
45243-95201-000 |
— | ||
|
14
|
14
09444-12001-000
Spring
E7, e13, e40, ce1, ce17, ce28 |
09444-12001-000 |
— | ||
| replacement | |||||
|
14
|
14
09448-12018-000
SPRING
E7, e13, e40, ce1, ce17, ce28 |
09448-12018-000 |
— | ||
|
15
|
15
45244-95200-000
Spring stopper
E7, e13, e40, ce1, ce17, ce28 |
45244-95200-000 |
— | ||
|
16
|
16
09440-21005-000
Spring
E7, e13, e40, ce1, ce17, ce28 |
09440-21005-000 |
— | ||
|
17
|
17
45252-96302-000
Link, release lever
E7, e13, e40, ce1, ce17, ce28 |
45252-96302-000 |
— | ||
| replacement | |||||
|
17
|
17
45252-96303-000 LINK,RELEASE LEVERLink, release lever E7, e13, e40, ce1, ce17, ce28 |
45252-96303-000 |
US $4.97 |
||
|
18
|
18
45242-95251-000
PLATE,REVERSE LOCK ARM
E7, e13, e40, ce1, ce17, ce28 |
45242-95251-000 |
— | ||
|
19
|
19
45255-96300-000
Knob, release lever
E7, e13, e40, ce1, ce17, ce28 |
45255-96300-000 |
— | ||
| replacement | |||||
|
19
|
19
45255-96302-000 KNOB,RELEASE LEVERKnob, release lever E7, e13, e40, ce1, ce17, ce28 |
45255-96302-000 |
US $4.64 |
||
|
20
|
20
45257-93900-000 BUSH,RELEASE LEVERBush, release lever E7, e13, e40, ce1, ce17, ce28 |
45257-93900-000 |
US $1.32 |
||
|
21
|
21
45260-95250-000
Lever release
E7, e13, e40, ce1, ce17, ce28 |
45260-95250-000 |
— | ||
|
22
|
22
45311-93900-02M
Bracket, release lever
E7, e13, e40, ce1, ce17, ce28 |
45311-93900-02M |
— | ||
| replacement | |||||
|
22
|
22
45311-93900-0ED
BRACKET,RELEASE LEVER
E7, e13, e40, ce1, ce17, ce28 |
45311-93900-0ED |
— | ||
|
23
|
23
09100-05011-000
Bolt
Bolt (5*12); E7, e13, e40, ce1, ce17, ce28 |
09100-05011-000 |
— | ||
|
24
|
24
09160-05010-000
Washer
E7, e13, e40, ce1, ce17, ce28 |
09160-05010-000 |
— | ||
| replacement | |||||
|
24
|
24
09160-05029-000 WASHER(5.5X12X0.8)E7, e13, e40, ce1, ce17, ce28 |
09160-05029-000 |
from US $1.12 |
||
|
25
|
25
09160-04012-000 WASHER(4.2X10X1)Washer (4.2x10x1) Washer (4.2*10*1); E7, e13, e40, ce1, ce17, ce28 |
09160-04012-000 |
from US $1.31 |
||
|
26
|
26
09204-01001-000
Cotter pin
E7, e13, e40, ce1, ce17, ce28 |
09204-01001-000 |
— | ||
| replacement | |||||
|
26
|
26
09204-01002-000 PINCotter pin E7, e13, e40, ce1, ce17, ce28 |
09204-01002-000 |
from US $1.12 |
||
|
27
|
27
09319-04001-000 BUSHE7, e13, e40, ce1, ce17, ce28 |
09319-04001-000 |
US $11.80 |
||
|
28
|
28
09440-04021-000 SPRINGE7, e13, e40, ce1, ce17, ce28 |
09440-04021-000 |
US $8.50 |
||
|
29
|
29
09443-05013-000 SPRINGE7, e13, e40, ce1, ce17, ce28 |
09443-05013-000 |
US $26.50 |
||
|
30
|
30
09181-26006-000
Shim t:0.3
Shim (0.3); |
09181-26006-000 |
— | ||
|
30
|
30
09181-26007-000
Shim (0.5)
|
09181-26007-000 |
— | ||
