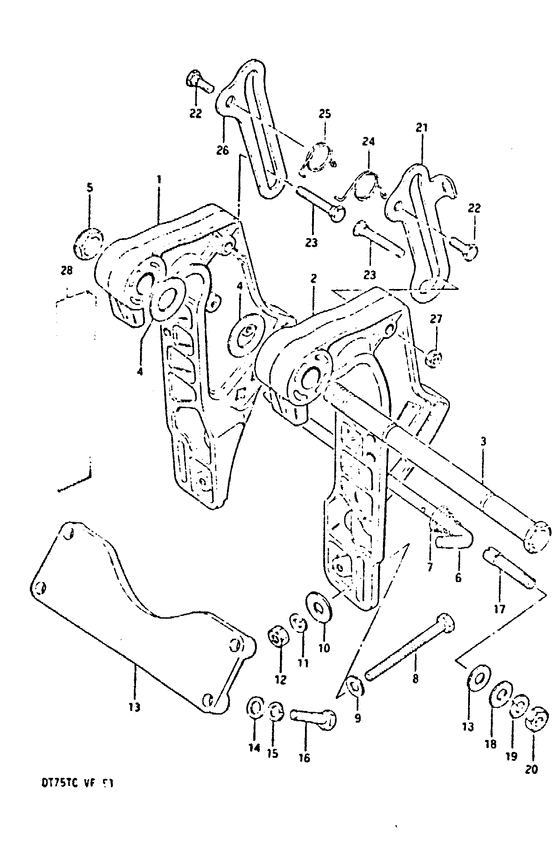

Clamp bracket (Model qd) Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-95203-02M
Bracket, clamp rh
|
41111-95203-02M |
— | ||
|
2
|
2
41121-95230-02M
Bracket, clamp lh
|
41121-95230-02M |
— | ||
|
3
|
3
41130-95500-000
Clamp bkt tube
|
41130-95500-000 |
— | ||
|
4
|
4
09161-22001-000
Washer
|
09161-22001-000 |
— | ||
|
5
|
5
09159-22002-000
Nut
|
09159-22002-000 |
— | ||
| replacement | |||||
|
5
|
5
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
8
|
8
09100-10175-000
Bolt transom
Bolt, transom (10*100); |
09100-10175-000 |
— | ||
| replacement | |||||
|
8
|
8
09117-10024-XC0 BOLT(10X100)Bolt, transom (10*100); |
09117-10024-XC0 |
US $226.30 |
||
|
9
|
9
09160-10040-000
Washer
|
09160-10040-000 |
— | ||
| replacement | |||||
|
9
|
9
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
10
|
10
09160-10083-000 WASHER(10.5X30X3.2)Washer (10.5x30x3.2) Washer (10.5*30.3*2); |
09160-10083-000 |
US $17.30 |
||
|
11
|
11
09162-10005-000 WASHER,LOCKLock washer |
09162-10005-000 |
from US $1.28 |
||
|
12
|
12
09140-10015-000
Nut
|
09140-10015-000 |
— | ||
| replacement | |||||
|
12
|
12
09140-10031-000 NUT |
09140-10031-000 |
from US $1.49 |
||
|
17
|
17
48211-95510-000
Pin,trim down l
Pin; |
48211-95510-000 |
— | ||
|
18
|
18
09160-12038-000
Shim
|
09160-12038-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-12067-000 WASHER(12.5X23X1)Washer, emergency sw |
09160-12067-000 |
from US $4.73 |
||
|
19
|
19
09162-12002-000
Lock washer
|
09162-12002-000 |
— | ||
| replacement | |||||
|
19
|
19
09162-12005-000 WASHER,LOCKLock washer (12.2x21.5x3) |
09162-12005-000 |
from US $1.51 |
||
|
20
|
20
09140-12020-000
Nut
|
09140-12020-000 |
— | ||
| replacement | |||||
|
20
|
20
09140-12029-000 NUT |
09140-12029-000 |
from US $4.66 |
||
