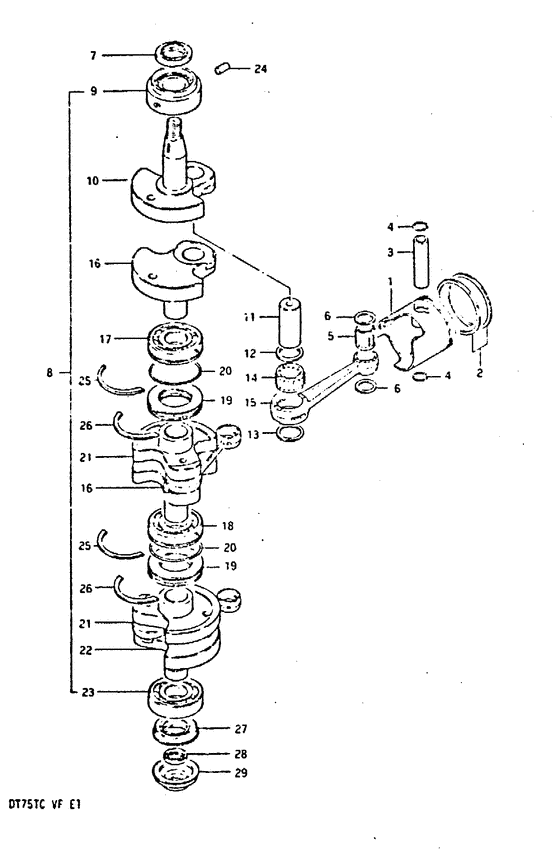

Crankshaft Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12110-95322-000
Piston
?????748, to 12110-95323 |
12110-95322-000 |
— | ||
| replacement | |||||
|
1
|
1
12110-95331-000
PISTON(84.00MM)
?????748, to 12110-95323 |
12110-95331-000 |
— | ||
|
1
|
1
12110-95512-000
Piston
402749~ |
12110-95512-000 |
— | ||
| replacement | |||||
|
1
|
1
12110-95516-000
PISTON STD. (84mm)
402749~ |
12110-95516-000 |
— | ||
|
1
|
1
12110-95322-025
Piston (os:0.25)
Opt, ~404060 |
12110-95322-025 |
— | ||
| replacement | |||||
|
1
|
1
12100-95331-025
PISTON SET(OS:0.25)
Opt, ~404060 |
12100-95331-025 |
— | ||
|
1
|
1
12110-95323-025
Piston (os:0.25)
Opt, 404061~ |
12110-95323-025 |
— | ||
| replacement | |||||
|
1
|
1
12100-95331-025
PISTON SET(OS:0.25)
Opt, 404061~ |
12100-95331-025 |
— | ||
|
1
|
1
12110-95322-050
Piston (os:0.50)
Opt, ~404060 |
12110-95322-050 |
— | ||
| replacement | |||||
|
1
|
1
12100-95331-050
PISTON SET(OS:0.5)
Opt, ~404060 |
12100-95331-050 |
— | ||
|
1
|
1
12110-95323-050
Piston (os:0.50)
Opt, 404061~ |
12110-95323-050 |
— | ||
| replacement | |||||
|
1
|
1
12100-95331-050
PISTON SET(OS:0.5)
Opt, 404061~ |
12100-95331-050 |
— | ||
|
2
|
2
12140-95311-000
Ring set, piston
~402748, model qd/ve/vf:e13, e40, te13, te40 |
12140-95311-000 |
— | ||
| replacement | |||||
|
2
|
2
12140-87D02-000
RING SET,PISTON
~402748, model qd/ve/vf:e13, e40, te13, te40 |
12140-87D02-000 |
— | ||
|
2
|
2
12140-95302-000
RING SET,PISTON
Ring set, piston (b1.5); 402749~ |
12140-95302-000 |
— | ||
|
2
|
2
12140-95311-025
Ring set, piston (os:0.25)
Opt |
12140-95311-025 |
— | ||
| replacement | |||||
|
2
|
2
12140-95320-025
RING SET,PISTON(OS:0.25)
Opt |
12140-95320-025 |
— | ||
|
2
|
2
12140-95311-050
Ring set, piston (os:0.5)
Opt |
12140-95311-050 |
— | ||
| replacement | |||||
|
2
|
2
12140-95320-050
RING SET,PISTON(OS:0.50)
Opt |
12140-95320-050 |
— | ||
|
3
|
3
12151-95500-000
Pin, piston
|
12151-95500-000 |
— | ||
| replacement | |||||
|
3
|
3
12151-87E01-000 PIN,PISTON |
12151-87E01-000 |
US $13.47 |
||
|
4
|
4
09381-20004-000 CIRCLIPSnap ring |
09381-20004-000 |
from US $1.52 |
||
|
5
|
5
09263-20034-000 BEARING(20X25X27.9)Bearing (20*25*27.9) Bearing, piston pin; |
09263-20034-000 |
US $22.24 |
||
|
6
|
6
09169-20001-000 WASHERWasher Washer, connecting rod; |
09169-20001-000 |
US $5.63 |
||
|
7
|
7
09283-30029-000
SEAL,OIL(30X47X7)
Oil seal, upper (30*47*8); |
09283-30029-000 |
— | ||
|
8
|
8
12200-95531-000
Crankshaft assy
~404156 |
12200-95531-000 |
— | ||
| replacement | |||||
|
8
|
8
12200-95640-000
CRANKSHAFT ASSY
~404156 |
12200-95640-000 |
— | ||
|
8
|
8
12200-95513-000
Crankshaft assy
504157~ |
12200-95513-000 |
— | ||
| replacement | |||||
|
8
|
8
12200-95640-000
CRANKSHAFT ASSY
504157~ |
12200-95640-000 |
— | ||
|
9
|
9
09264-30006-000
Rc 30x72x33 brg
~402979 |
09264-30006-000 |
— | ||
|
9
|
9
09264-40001-000
BEARING(40X72X33)
402980~ |
09264-40001-000 |
— | ||
|
10
|
10
12221-95503-000
Crankshaft,uppe
|
12221-95503-000 |
— | ||
|
11
|
11
12211-95503-000 PIN,CRANKPin, crank (7x28x64) Pin, crank (7*28*64); |
12211-95503-000 |
US $70.69 |
||
|
12
|
12
09160-28011-000
Washer
|
09160-28011-000 |
— | ||
|
12
|
12
08211-28363-000 WASHERWasher (t:2.0) 402980~ |
08211-28363-000 |
US $22.40 |
||
|
13
|
13
09160-28012-000
WASHER(28X35X2.5)
|
09160-28012-000 |
— | ||
|
14
|
14
09263-28012-000
BEARING(28X36X19.8)
|
09263-28012-000 |
— | ||
|
15
|
15
12161-95504-000
Rod,connecting
|
12161-95504-000 |
— | ||
|
16
|
16
12231-95501-000
Crankshaft, middle upper
~402979 |
12231-95501-000 |
— | ||
| replacement | |||||
|
16
|
16
12231-95502-000
CRANKSHAFT,MIDDLE
~402979 |
12231-95502-000 |
— | ||
|
16
|
16
12231-95502-000
CRANKSHAFT,MIDDLE
402980~ |
12231-95502-000 |
— | ||
|
17
|
17
09262-30053-000
Bearing, middle lower
|
09262-30053-000 |
— | ||
| replacement | |||||
|
17
|
17
09269-30012-000 BEARING(30X72X19)Bearing (30x72x19) |
09269-30012-000 |
from US $117.88 |
||
|
18
|
18
09264-30007-000
Bearing, middle lower
|
09264-30007-000 |
— | ||
| replacement | |||||
|
18
|
18
09269-30012-000 BEARING(30X72X19)Bearing (30x72x19) |
09269-30012-000 |
from US $117.88 |
||
|
19
|
19
12321-95204-000
Labyrinth seal
~402979 |
12321-95204-000 |
— | ||
|
19
|
19
12321-95210-000
Seal, labyrinth
402980~ |
12321-95210-000 |
— | ||
| replacements | |||||
|
19
|
19
12323-95600-000
SEAL,RING
402980~ |
12323-95600-000 |
— | ||
|
19
|
19
12324-95600-000
SEAL,OUTER
402980~ |
12324-95600-000 |
— | ||
|
20
|
20
09280-63001-000
O RING(D:1.9,ID:63.1)
O ring (id:63.1, d:1.9); |
09280-63001-000 |
— | ||
| replacement | |||||
|
20
|
20
09280-63005-000 O RingO ring (id:63.1, d:1.9); |
09280-63005-000 |
from US $3.42 |
||
|
21
|
21
12233-95500-000
Wheel, middle crankshaft
~402979, to 12232-95500 |
12233-95500-000 |
— | ||
| replacements | |||||
|
21
|
21
12211-95503-000 PIN,CRANKPin, crank (7x28x64) ~402979, to 12232-95500 |
12211-95503-000 |
US $70.69 |
||
|
21
|
21
12323-95600-000
SEAL,RING
~402979, to 12232-95500 |
12323-95600-000 |
— | ||
|
21
|
21
12324-95600-000
SEAL,OUTER
~402979, to 12232-95500 |
12324-95600-000 |
— | ||
|
21
|
21
12232-95500-000
Wheel, middle crankshaft
402980~ |
12232-95500-000 |
— | ||
| replacements | |||||
|
21
|
21
12323-95600-000
SEAL,RING
402980~ |
12323-95600-000 |
— | ||
|
21
|
21
12324-95600-000
SEAL,OUTER
402980~ |
12324-95600-000 |
— | ||
|
22
|
22
12240-95503-000
Crankshaft, lower
|
12240-95503-000 |
— | ||
| replacement | |||||
|
22
|
22
12240-95504-000
CRANKSHAFT,UNDER
|
12240-95504-000 |
— | ||
|
23
|
23
09262-30049-000
Щbearing, crankshaft
30*72*19 |
09262-30049-000 |
— | ||
| replacement | |||||
|
23
|
23
09262-30055-000 BEARING(30X72X19)30*72*19 |
09262-30055-000 |
from US $28.80 |
||
|
24
|
24
04221-04089-000 PINPin, bal sprocket driven |
04221-04089-000 |
from US $0.76 |
||
|
25
|
25
09390-72008-000 C RINGC ring (id:69.6,od:78) Ring, bearing; |
09390-72008-000 |
US $2.13 |
||
|
26
|
26
09390-72006-000
Seal ring
|
09390-72006-000 |
— | ||
|
27
|
27
09283-30042-000
Oil seal (28.5*59*10)
|
09283-30042-000 |
— | ||
| replacements | |||||
|
27
|
27
09283-30062-000
SEAL,OIL(30X55X8)
|
09283-30062-000 |
— | ||
|
27
|
27
09283-30077-000 Seal,oil(30X55X8) |
09283-30077-000 |
from US $9.73 |
||
|
28
|
28
09282-20003-000
SEAL,OIL(20X30X6)
20*30*6, ~302337 |
09282-20003-000 |
— | ||
|
29
|
29
11431-95502-000 HOUSING,UNDER OIL SEALHousing, oil seal |
11431-95502-000 |
US $213.44 |
||
