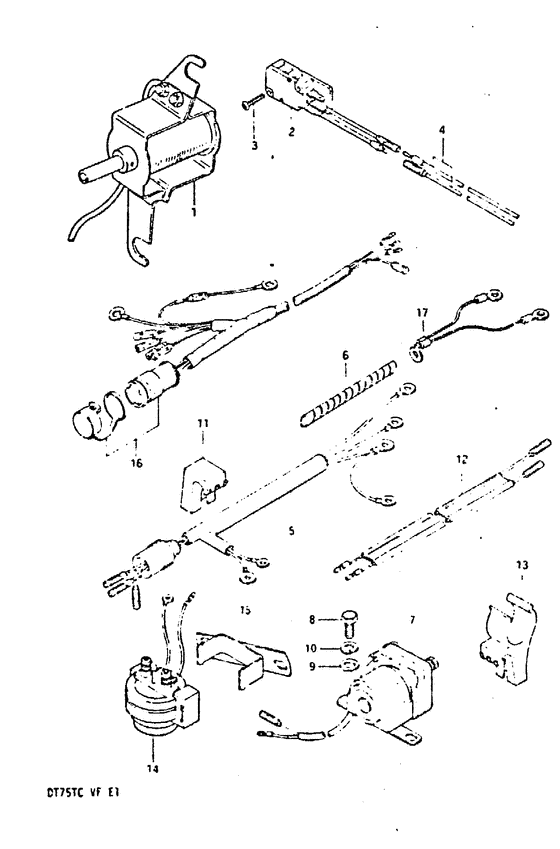

Electrical Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38600-95501-000
Solenoid assy, choke
~302337 |
38600-95501-000 |
— | ||
| replacement | |||||
|
1
|
1
38600-95520-000
SOLENOID ASSY,CHOKE
~302337 |
38600-95520-000 |
— | ||
|
1
|
1
38600-95510-000
Solendid assy, choke
402338~ |
38600-95510-000 |
— | ||
| replacement | |||||
|
1
|
1
38600-95520-000
SOLENOID ASSY,CHOKE
402338~ |
38600-95520-000 |
— | ||
|
2
|
2
37721-95551-000
Switch, neutral
Opt |
37721-95551-000 |
— | ||
| replacement | |||||
|
2
|
2
37721-94601-000 SWITCH ASSY,NEUTRALOpt |
37721-94601-000 |
US $27.97 |
||
|
3
|
3
02112-03168-000
Screw
Opt |
02112-03168-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-0316B-000 SCREWOpt |
02112-0316B-000 |
from US $3.71 |
||
|
4
|
4
36820-95550-000
Lead, neutral switch
Opt, l:700 |
36820-95550-000 |
— | ||
| replacement | |||||
|
4
|
4
36820-95560-000 LEAD,NEUTRAL SWITCH(L:700)Opt, l:700 |
36820-95560-000 |
US $5.37 |
||
|
5
|
5
33830-95513-000
Cable, trim relay in
|
33830-95513-000 |
— | ||
|
6
|
6
38423-95501-000
Tube, trim relay lead
2pcs...l:150@r100 |
38423-95501-000 |
— | ||
| replacement | |||||
|
6
|
6
33833-91J00-000 TUBE,SWITCH LEAD(L:250)2pcs...l:150@r100 |
33833-91J00-000 |
US $4.64 |
||
|
7
|
7
38410-95510-000
Trim relay, up in
To 38410-94540 |
38410-95510-000 |
— | ||
| replacement | |||||
|
7
|
7
38410-94540-000
RELAY ASSY,TRIM
To 38410-94540 |
38410-94540-000 |
— | ||
|
8
|
8
09100-06113-000 BOLT(6X16) |
09100-06113-000 |
from US $3.04 |
||
|
9
|
9
09160-06015-000
Washer
|
09160-06015-000 |
— | ||
| replacement | |||||
|
9
|
9
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
10
|
10
09162-06001-000
Lock washer
|
09162-06001-000 |
— | ||
| replacement | |||||
|
10
|
10
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
11
|
11
36641-95500-000
STOPPER,RELAY HARNESS
|
36641-95500-000 |
— | ||
|
12
|
12
36645-95500-000
Lead wire,trim
|
36645-95500-000 |
— | ||
|
13
|
13
36616-95300-000
Holder, connector
|
36616-95300-000 |
— | ||
| replacement | |||||
|
13
|
13
36616-95301-000 HOLDER,CONNECTORHolder, connector |
36616-95301-000 |
US $4.42 |
||
|
14
|
14
38410-94540-000
RELAY ASSY,TRIM
Relay, trim, up in; Model ve/vf |
38410-94540-000 |
— | ||
|
15
|
15
38415-95200-000
Bracket relay
Bracket, trim relay; |
38415-95200-000 |
— | ||
|
17
|
17
36895-95300-000
LEAD,ENGINE GROUND
Lead, engine ground; 504157~ |
36895-95300-000 |
— | ||
