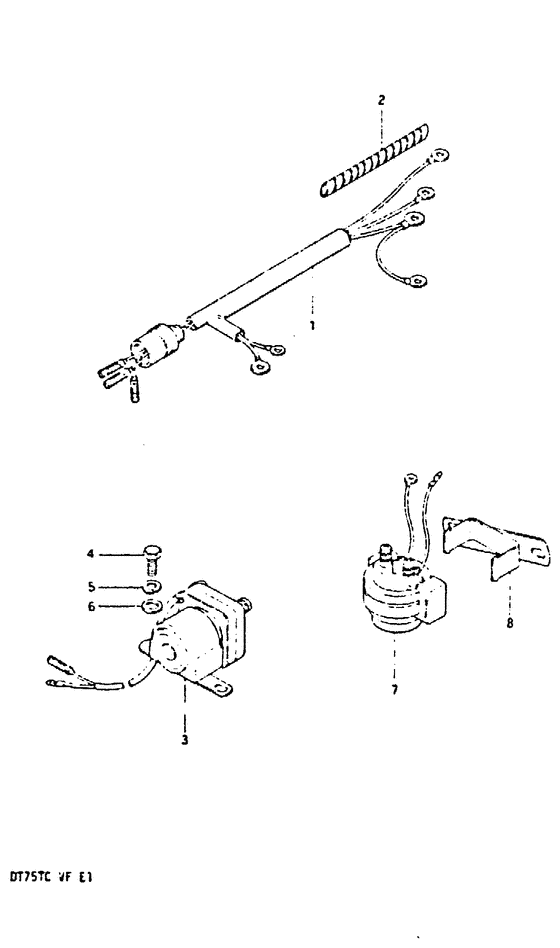

Electrical (Optional; 1) (model qo/ve/vf: e13, e40, ce1, ce17) Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33830-95513-000
Cable, trim relay in
L:680 |
33830-95513-000 |
— | ||
|
2
|
2
38423-95501-000
Tube, trim relay lead
L:150@r100 |
38423-95501-000 |
— | ||
| replacement | |||||
|
2
|
2
33833-91J00-000 TUBE,SWITCH LEAD(L:250)L:150@r100 |
33833-91J00-000 |
US $4.64 |
||
|
3
|
3
38410-95510-000
Trim relay, up in
|
38410-95510-000 |
— | ||
| replacement | |||||
|
3
|
3
38410-94540-000
RELAY ASSY,TRIM
|
38410-94540-000 |
— | ||
|
4
|
4
09100-06113-000 BOLT(6X16) |
09100-06113-000 |
from US $3.04 |
||
|
5
|
5
09162-06001-000
Lock washer
|
09162-06001-000 |
— | ||
| replacement | |||||
|
5
|
5
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
6
|
6
09160-06015-000
Washer
|
09160-06015-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
7
|
7
38410-94540-000
RELAY ASSY,TRIM
Trim relay, up in; Model ve/vf |
38410-94540-000 |
— | ||
|
8
|
8
38415-95200-000
Bracket relay
|
38415-95200-000 |
— | ||
