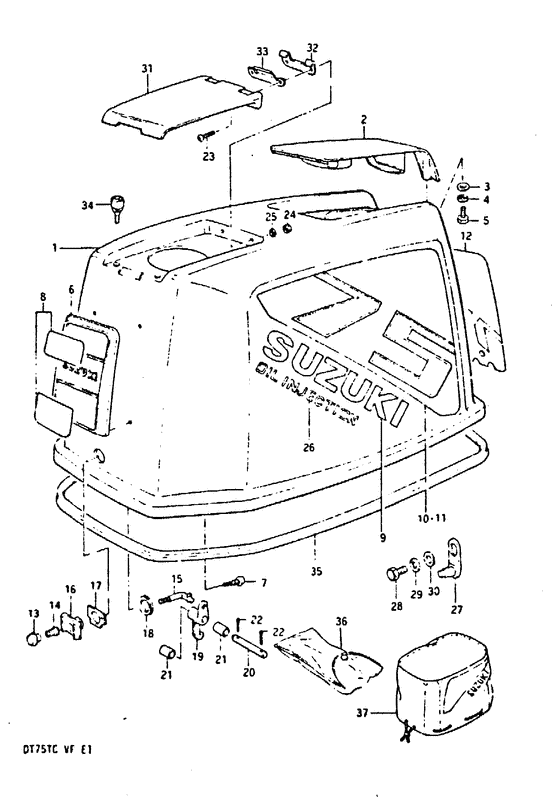

Engine cover (Model vf) Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61403-95860-02M
Cover set, engine
|
61403-95860-02M |
— | ||
| replacement | |||||
|
1
|
1
61631-95310-000
HOOK,LWR ENGINE COVER
|
61631-95310-000 |
— | ||
|
2
|
2
61431-95501-02M
Handle, tilt up
|
61431-95501-02M |
— | ||
| replacement | |||||
|
2
|
2
61431-95501-0ED
HANDLE,TILT UP
|
61431-95501-0ED |
— | ||
|
3
|
3
09160-06036-000 WASHER(6.5X18X1.5)Washer, 6.5x18x1.5 Washer (6.5*18*1.5); |
09160-06036-000 |
from US $1.60 |
||
|
4
|
4
09162-06001-000
Lock washer
|
09162-06001-000 |
— | ||
| replacement | |||||
|
4
|
4
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
5
|
5
09100-06113-000 BOLT(6X16) |
09100-06113-000 |
from US $3.04 |
||
|
6
|
6
61421-94400-000
Emblem, front
|
61421-94400-000 |
— | ||
|
7
|
7
03242-05109-000
Screw
|
03242-05109-000 |
— | ||
| replacements | |||||
|
7
|
7
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
7
|
7
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
8
|
8
61422-95561-000
Mark,fr emblem
Mark, upper; |
61422-95561-000 |
— | ||
|
9
|
9
61441-94560-000
Emblem,eng cove
|
61441-94560-000 |
— | ||
|
10
|
10
61443-95620-000
Decal eng cover
|
61443-95620-000 |
— | ||
|
11
|
11
61433-95620-000
Decal port "75"
|
61433-95620-000 |
— | ||
|
12
|
12
61435-95630-000
Mark emblem rr
|
61435-95630-000 |
— | ||
|
13
|
13
61660-95500-000
KNOB,BOOK UN FASTEN
|
61660-95500-000 |
— | ||
|
14
|
14
09441-12001-000 SPRING |
09441-12001-000 |
US $22.40 |
||
|
15
|
15
61653-95501-000
Unfasten hook s
|
61653-95501-000 |
— | ||
|
16
|
16
61651-95501-000
Holder,hook spr
|
61651-95501-000 |
— | ||
|
17
|
17
61652-95500-000
Gasket
Packing (t:1.5); |
61652-95500-000 |
— | ||
|
18
|
18
61654-95500-000
NUT
|
61654-95500-000 |
— | ||
|
19
|
19
61641-95500-000
Hook, release
|
61641-95500-000 |
— | ||
|
20
|
20
61642-95500-000
PIN,ENGINE COVER UN FASTEN
Pin (l:61); |
61642-95500-000 |
— | ||
|
21
|
21
09180-06078-000
Spacer
Spacer (6.1*8*15); |
09180-06078-000 |
— | ||
|
22
|
22
09385-06003-000
CLIP
|
09385-06003-000 |
— | ||
|
23
|
23
09125-06021-000
Screw
|
09125-06021-000 |
— | ||
| replacement | |||||
|
23
|
23
09125-06067-000 SCREW(6X16)Screw (6x16) |
09125-06067-000 |
from US $1.35 |
||
|
24
|
24
09140-06004-000
Nut
|
09140-06004-000 |
— | ||
| replacement | |||||
|
24
|
24
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
25
|
25
09160-06015-000
Washer
|
09160-06015-000 |
— | ||
| replacement | |||||
|
25
|
25
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
26
|
26
61442-94560-000
Mark, oil injection
|
61442-94560-000 |
— | ||
| replacement | |||||
|
26
|
26
61442-94600-019
MARK,OIL INJECTION
|
61442-94600-019 |
— | ||
|
27
|
27
61610-95511-000
Fastener
|
61610-95511-000 |
— | ||
| replacement | |||||
|
27
|
27
61610-95514-000 FASTENER |
61610-95514-000 |
US $10.78 |
||
|
28
|
28
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
28
|
28
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
29
|
29
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
29
|
29
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
30
|
30
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
30
|
30
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
31
|
31
61481-95521-02M
Lid, oil tank filler
|
61481-95521-02M |
— | ||
| replacement | |||||
|
31
|
31
61481-95522-0ED
LID,OIL TANK FILLER
|
61481-95522-0ED |
— | ||
|
32
|
32
61482-94510-000 HINGE,OIL FILLER LIDHinge, oil tank filler lid Hinge, oil filler lid; |
61482-94510-000 |
US $3.83 |
||
|
33
|
33
61485-95500-000 SPRING,OIL FILLER LIDSpring, oil filler lid |
61485-95500-000 |
US $3.83 |
||
|
34
|
34
09321-05019-000 CUSHIONCushion, engine cover Cushion, oil filler lid; |
09321-05019-000 |
from US $1.60 |
||
|
35
|
35
61112-95208-000
Seal under cove
|
61112-95208-000 |
— | ||
|
36
|
36
09800-81800-000
Tool
|
09800-81800-000 |
— | ||
| replacements | |||||
|
36
|
36
09800-01001-000
TOOL ASSY
|
09800-01001-000 |
— | ||
|
36
|
36
09800-01016-000 Tool Assy |
09800-01016-000 |
US $63.20 |
||
|
37
|
37
68110-95510-000
Cover, weather
Opt |
68110-95510-000 |
— | ||
| replacement | |||||
|
37
|
37
68110-94510-000
ENGINE COVER
Opt |
68110-94510-000 |
— | ||
