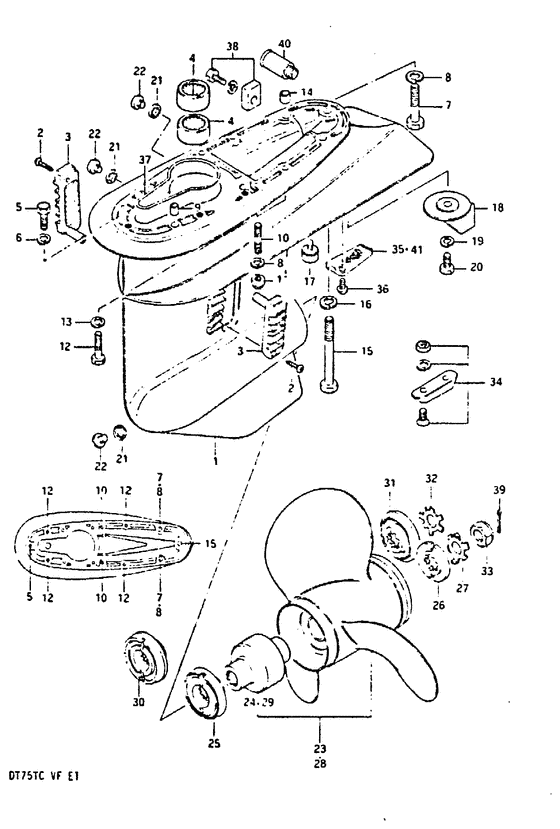

Gear case Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55100-95850-02M
Case set, gear
~302198, to 55100-95851-02m |
55100-95850-02M |
— | ||
| replacement | |||||
|
1
|
1
55320-95311-000 ZINC SET,PROTECTION~302198, to 55100-95851-02m |
55320-95311-000 |
US $14.78 |
||
|
1
|
1
55100-95851-02M
Case set, gear
302199~402753 to 55100-95852-02m |
55100-95851-02M |
— | ||
|
1
|
1
55100-95852-02M
Case set, gear
402754~ |
55100-95852-02M |
— | ||
|
2
|
2
03142-04259-000 SCREW |
03142-04259-000 |
from US $0.80 |
||
|
3
|
3
17631-95201-000
Filter, water
~302198, to 17631-95202 |
17631-95201-000 |
— | ||
| replacements | |||||
|
3
|
3
03112-04309-000 SCREW~302198, to 17631-95202 |
03112-04309-000 |
from US $0.76 |
||
|
3
|
3
17631-94600-000 FILTER,WATER~302198, to 17631-95202 |
17631-94600-000 |
US $12.95 |
||
|
3
|
3
17631-95202-000
Filter, water
302199~ |
17631-95202-000 |
— | ||
| replacement | |||||
|
3
|
3
17631-94600-000 FILTER,WATER302199~ |
17631-94600-000 |
US $12.95 |
||
|
4
|
4
09263-29004-000 BEARING(29X38X20)Bearing, pinion |
09263-29004-000 |
from US $25.02 |
||
|
5
|
5
09100-08112-000
Bolt
8*30 |
09100-08112-000 |
— | ||
| replacement | |||||
|
5
|
5
09100-08232-000 BOLT(8X30)8*30 |
09100-08232-000 |
US $2.43 |
||
|
6
|
6
09162-08007-000 WASHER,LOCKLock washer |
09162-08007-000 |
from US $2.35 |
||
|
7
|
7
09100-08216-000
Bolt
|
09100-08216-000 |
— | ||
| replacement | |||||
|
7
|
7
09100-08160-000 BOLT(8X45)Bolt (8*45) |
09100-08160-000 |
US $29.80 |
||
|
8
|
8
09162-08003-000
Lock washer
|
09162-08003-000 |
— | ||
| replacement | |||||
|
8
|
8
09162-08007-000 WASHER,LOCKLock washer |
09162-08007-000 |
from US $2.35 |
||
|
9
|
9
09206-11001-000
Dowel pin
|
09206-11001-000 |
— | ||
| replacement | |||||
|
9
|
9
09206-11016-000
PIN(8.4X11X12)
|
09206-11016-000 |
— | ||
|
10
|
10
09108-08154-000
BOLT,STUD
|
09108-08154-000 |
— | ||
|
11
|
11
09159-08059-000 NUTNut, clutch lever |
09159-08059-000 |
from US $3.65 |
||
|
12
|
12
09100-10149-000
BOLT(10X55)
Bolt (10*55); |
09100-10149-000 |
— | ||
|
13
|
13
09162-10005-000 WASHER,LOCKLock washer |
09162-10005-000 |
from US $1.28 |
||
|
14
|
14
09206-13006-000
Pin
|
09206-13006-000 |
— | ||
| replacement | |||||
|
14
|
14
09206-13017-000 PIN(13X10.4X20)Pin |
09206-13017-000 |
from US $2.88 |
||
|
15
|
15
09100-10205-000
Bolt (1<-100)
|
09100-10205-000 |
— | ||
| replacement | |||||
|
15
|
15
09117-10024-XC0 BOLT(10X100) |
09117-10024-XC0 |
US $226.30 |
||
|
16
|
16
09162-10005-000 WASHER,LOCKLock washer |
09162-10005-000 |
from US $1.28 |
||
|
17
|
17
55320-95310-000
Zinc set
Zinc, protection; |
55320-95310-000 |
— | ||
| replacement | |||||
|
17
|
17
55320-95311-000 ZINC SET,PROTECTIONZinc, protection; |
55320-95311-000 |
US $14.78 |
||
|
18
|
18
55125-95202-02M
Trim tab
|
55125-95202-02M |
— | ||
| replacement | |||||
|
18
|
18
55125-95500-000 TAB ZINC ANODE,TRIM |
55125-95500-000 |
US $70.04 |
||
|
19
|
19
09162-08003-000
Lock washer
|
09162-08003-000 |
— | ||
| replacement | |||||
|
19
|
19
09162-08007-000 WASHER,LOCKLock washer |
09162-08007-000 |
from US $2.35 |
||
|
20
|
20
09100-08215-000 BOLT(8X16)Bolt (8*16); |
09100-08215-000 |
from US $2.52 |
||
|
21
|
21
09168-10022-000 GASKET(10X17X1.5) |
09168-10022-000 |
from US $1.28 |
||
|
22
|
22
09248-10005-000 Plug |
09248-10005-000 |
US $6.28 |
||
| replacement | |||||
|
22
|
22
09248-10008-000 PLUG(10X7.5) |
09248-10008-000 |
from US $1.28 |
||
|
23
|
23
58100-95500-01T
Propeller (3*342.9*381)
U1500 |
58100-95500-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-95500-019
PROPELLER(13-1/2X15)
U1500 |
58100-95500-019 |
— | ||
|
23
|
23
58100-95511-01T
Propeller (3*13-1/4*17)
U1700 |
58100-95511-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-95511-019 PROPELLER(3X13-1/4X17)Propeller (13x17) U1700 |
58100-95511-019 |
US $381.26 |
||
|
23
|
23
58100-95521-01T
Propeller (3*13*19)
U1900 |
58100-95521-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-95521-019
PROPELLER(3X13X19)
U1900 |
58100-95521-019 |
— | ||
|
23
|
23
58100-95530-01T
Propeller (3*330.2*533.4)
U2100 |
58100-95530-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-95530-019 PROPELLER(3X13X21)Propeller (3x13x21) U2100 |
58100-95530-019 |
US $474.55 |
||
|
23
|
23
58100-95540-01T
Propeller (3*349.2*330.2)
U1300 |
58100-95540-01T |
— | ||
| replacement | |||||
|
23
|
23
58100-95540-019
PROPELLER(3X13-3/4X13)
U1300 |
58100-95540-019 |
— | ||
|
24
|
24
58120-95500-000
BUSH,PROPELLER
Bushing, propeller; U type |
58120-95500-000 |
— | ||
|
25
|
25
57635-95503-000 STOPPER,PROPELLER BUSHStopper Stopper, propeller bushing; U type |
57635-95503-000 |
US $85.74 |
||
|
26
|
26
57633-95500-000
Spacer
U type, model qd |
57633-95500-000 |
— | ||
| replacement | |||||
|
26
|
26
57633-95501-000 SPACER,PROPELLER NUTU type, model qd |
57633-95501-000 |
US $39.74 |
||
|
26
|
26
57633-95501-000 SPACER,PROPELLER NUTSpacer, propeller nut; U type, model ve/vf |
57633-95501-000 |
US $39.74 |
||
|
27
|
27
57635-95300-000 WASHER,PROPELLER NUT LOCKWasher, nut lock; U type |
57635-95300-000 |
US $2.83 |
||
|
28
|
28
58100-94512-01T
Propeller (3*13-1/4*17)
V1700 |
58100-94512-01T |
— | ||
| replacement | |||||
|
28
|
28
58100-94512-019 PROPELLER(3X13-1/4X17)Propeller (13 1/4x17) V1700 |
58100-94512-019 |
US $207.92 |
||
|
28
|
28
58100-94522-01T
Propeller (3*13*19)
V1900, from 58100-94542-01t |
58100-94522-01T |
— | ||
| replacement | |||||
|
28
|
28
58100-94522-019 PROPELLER(3X13X19)Propeller (13x19) V1900, from 58100-94542-01t |
58100-94522-019 |
US $250.24 |
||
|
28
|
28
58100-94532-01T
Propeller (3*13*21)
V2100, from 58100-94552-01t |
58100-94532-01T |
— | ||
| replacement | |||||
|
28
|
28
58100-94532-019
PROPELLER(3X13X21)
V2100, from 58100-94552-01t |
58100-94532-019 |
— | ||
|
28
|
28
58100-94500-01T
Propeller (3*13-1/2*15)
V1500 |
58100-94500-01T |
— | ||
| replacement | |||||
|
28
|
28
58100-94500-019 PROPELLER(3X13-1/2X15)Propeller (13 1/2x15) V1500 |
58100-94500-019 |
US $608 |
||
|
29
|
29
58120-94510-000
Bushing, propeller
V type, model qd, to 58120-94520 |
58120-94510-000 |
— | ||
| replacement | |||||
|
29
|
29
58120-94520-000 BUSH,PROPELLERV type, model qd, to 58120-94520 |
58120-94520-000 |
US $55.57 |
||
|
29
|
29
58120-94520-000 BUSH,PROPELLERBushing, propeller; V type, model ve/vf |
58120-94520-000 |
US $55.57 |
||
|
30
|
30
57635-94502-000 STOPPER,PROPELLER BUSHStopper, propeller bushing; V type |
57635-94502-000 |
US $87.95 |
||
|
31
|
31
57633-94500-000 SPACER,PROPELLER NUTSpacer, propeller nut; V type |
57633-94500-000 |
US $20.98 |
||
|
32
|
32
57634-94500-000 WASHER,PROPELLER NUT LOCKWasher, propeller nut lock; V type |
57634-94500-000 |
US $1.98 |
||
|
33
|
33
09159-18004-000 NUT |
09159-18004-000 |
from US $15.42 |
||
|
34
|
34
55300-95500-000 ZINC ASSY,PROTECTIONZinc, protection Zinc assy, protection; Opt |
55300-95500-000 |
from US $15.84 |
||
|
35
|
35
17635-95500-000
Filter
|
17635-95500-000 |
— | ||
| replacement | |||||
|
35
|
35
17635-95501-000 FILTER,SUB WATER |
17635-95501-000 |
US $3.02 |
||
|
36
|
36
09125-06053-000 SCREW(6X16)Screw, tiller handle cover |
09125-06053-000 |
from US $1.07 |
||
|
37
|
37
55122-95500-000
RING,GEAR CASE SEAL
|
55122-95500-000 |
— | ||
|
38
|
38
55320-95310-000
Zinc set
Zinc, propeller; |
55320-95310-000 |
— | ||
| replacement | |||||
|
38
|
38
55320-95311-000 ZINC SET,PROTECTIONZinc, propeller; |
55320-95311-000 |
US $14.78 |
||
|
39
|
39
09204-03003-000 PINPin; |
09204-03003-000 |
from US $1.12 |
||
|
40
|
40
55181-95200-000 ATTACHMENT,FLUSH HOSEAttachment, flush hose |
55181-95200-000 |
US $9.28 |
||
|
41
|
41
17635-95510-000 PLATE,GEAR CASEOpt |
17635-95510-000 |
US $4.05 |
||
