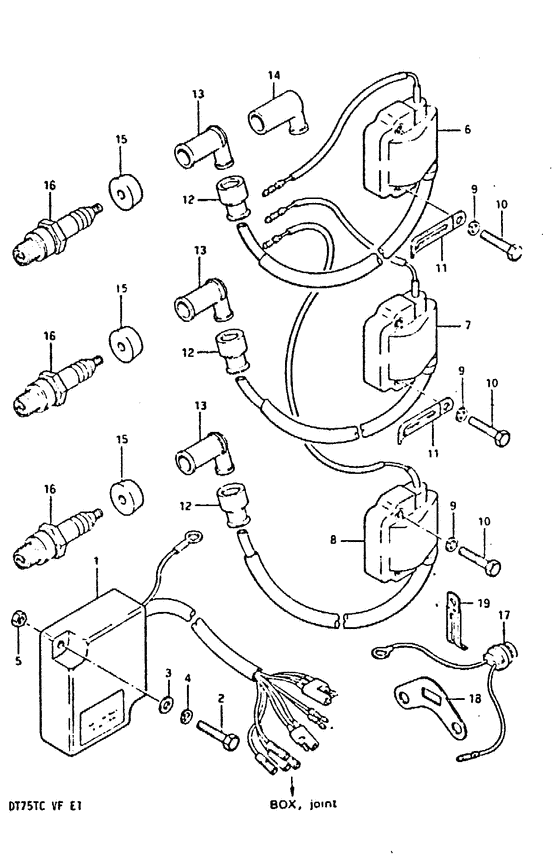

Ignition Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32900-95510-000
CDI UNIT ASSY
~404156 |
32900-95510-000 |
— | ||
|
1
|
1
32900-95520-000
C.d. unit, ignition
504157~ |
32900-95520-000 |
— | ||
| replacement | |||||
|
1
|
1
32900-95522-000
UNIT,CDI
504157~ |
32900-95522-000 |
— | ||
|
2
|
2
01107-06258-000
Bolt
|
01107-06258-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-06257-000 Bolt |
01500-06257-000 |
from US $0.96 |
||
|
3
|
3
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
4
|
4
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
5
|
5
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
6
|
6
33410-95500-000
Coil assy, ignition (1)
|
33410-95500-000 |
— | ||
| replacement | |||||
|
6
|
6
33410-95501-000
COIL ASSY,IGNITION NO.1
|
33410-95501-000 |
— | ||
|
7
|
7
33420-95500-000
Coil assy, ignition (2)
|
33420-95500-000 |
— | ||
|
8
|
8
33430-95500-000
Coil assy, ignition (3)
|
33430-95500-000 |
— | ||
| replacement | |||||
|
8
|
8
33430-95501-000
Ignition coil,n
|
33430-95501-000 |
— | ||
|
9
|
9
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
10
|
10
01107-06308-000
Bolt
|
01107-06308-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-06307-000 Bolt |
01500-06307-000 |
from US $0.80 |
||
|
11
|
11
09404-06202-000
Clamp
|
09404-06202-000 |
— | ||
| replacements | |||||
|
11
|
11
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
11
|
11
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
11
|
11
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
11
|
11
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
12
|
12
33542-98000-000
Seal, hightension coad
|
33542-98000-000 |
— | ||
| replacement | |||||
|
12
|
12
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
||
|
13
|
13
33510-22010-000 CAP ASSY,SPARK PLUG |
33510-22010-000 |
from US $10.34 |
||
| replacement | |||||
|
13
|
13
33510-97313-000 Cap,spark plug |
33510-97313-000 |
from US $19.87 |
||
|
15
|
15
33541-93310-000
Seal, spark plug
|
33541-93310-000 |
— | ||
| replacement | |||||
|
15
|
15
33541-93950-000 SEAL,SPARK PLUG CAP |
33541-93950-000 |
US $7.47 |
||
|
16
|
16
09482-00151-000 PLUG,SPARK(B8HS) |
09482-00151-000 |
US $4.78 |
||
|
17
|
17
34850-95510-000
SWITCH,HEAT
Thermo unit; |
34850-95510-000 |
— | ||
|
18
|
18
34853-94500-000
Supporter
|
34853-94500-000 |
— | ||
| replacement | |||||
|
18
|
18
34853-94600-000 SUPPORTER,ENGINE TEMP SENSORSuport, engine temp sensor |
34853-94600-000 |
US $3.50 |
||
|
19
|
19
09404-10201-000
Clamp
|
09404-10201-000 |
— | ||
| replacements | |||||
|
19
|
19
09404-10204-000
CLAMP(L:62)
|
09404-10204-000 |
— | ||
|
19
|
19
09404-10206-000 Clamp |
09404-10206-000 |
from US $3.21 |
||
