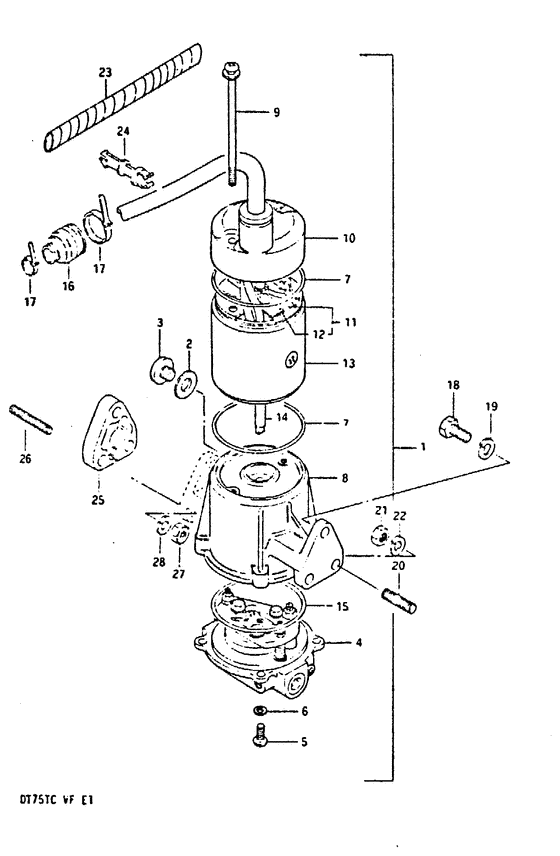

Power unit Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48500-95520-02M
Power unit assy, power trim
Model qd, to 48500-95521-02m |
48500-95520-02M |
— | ||
| replacements | |||||
|
1
|
1
33832-95511-000 CABLE ASSY,PTT RELAYCable, trim ground Model qd, to 48500-95521-02m |
33832-95511-000 |
US $13.03 |
||
|
1
|
1
38410-94552-000 RELAY ASSY,TRIMModel qd, to 48500-95521-02m |
38410-94552-000 |
US $131.01 |
||
|
1
|
1
48500-95550-0EP POWER UNIT,POWER TRIM(BLACK)Model qd, to 48500-95521-02m |
48500-95550-0EP |
US $1,558.32 |
||
|
1
|
1
48500-95533-02M
Power uint assy, power trim
|
48500-95533-02M |
— | ||
| replacements | |||||
|
1
|
1
33832-95511-000 CABLE ASSY,PTT RELAYCable, trim ground |
33832-95511-000 |
US $13.03 |
||
|
1
|
1
38410-94552-000 RELAY ASSY,TRIM |
38410-94552-000 |
US $131.01 |
||
|
1
|
1
48500-95550-0EP POWER UNIT,POWER TRIM(BLACK) |
48500-95550-0EP |
US $1,558.32 |
||
|
1
|
1
48500-95281-02M
Power trim/tilt assy (silver)
Opt port |
48500-95281-02M |
— | ||
| replacements | |||||
|
1
|
1
33832-95511-000 CABLE ASSY,PTT RELAYCable, trim ground Opt port |
33832-95511-000 |
US $13.03 |
||
|
1
|
1
38410-94552-000 RELAY ASSY,TRIMOpt port |
38410-94552-000 |
US $131.01 |
||
|
1
|
1
48500-95680-0ED
POWER UNIT ASSY,PORT SIDE(GRAY
Opt port |
48500-95680-0ED |
— | ||
|
2
|
2
09168-10022-000 GASKET(10X17X1.5) |
09168-10022-000 |
from US $1.28 |
||
|
3
|
3
09248-10005-000 Plug |
09248-10005-000 |
US $6.28 |
||
| replacement | |||||
|
3
|
3
09248-10008-000 PLUG(10X7.5) |
09248-10008-000 |
from US $1.28 |
||
|
4
|
4
48502-95521-000
Valve booy
Model qd |
48502-95521-000 |
— | ||
| replacement | |||||
|
4
|
4
48502-94530-000
PUMP & VALVE BODY ASSY
Model qd |
48502-94530-000 |
— | ||
|
4
|
4
48502-94522-000
Valve body
Model ve/vf |
48502-94522-000 |
— | ||
| replacement | |||||
|
4
|
4
48502-94530-000
PUMP & VALVE BODY ASSY
Model ve/vf |
48502-94530-000 |
— | ||
|
5
|
5
09125-05048-000 SCREW(5X16) |
09125-05048-000 |
from US $3.45 |
||
| replacement | |||||
|
5
|
5
09136-05041-000 SCREW(5X20)Screw, rod adjuster |
09136-05041-000 |
from US $1.78 |
||
|
6
|
6
09160-05032-000
Washer 5.5x10x0
|
09160-05032-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-05029-000 WASHER(5.5X12X0.8) |
09160-05029-000 |
from US $1.12 |
||
|
7
|
7
09280-70006-000 O ring |
09280-70006-000 |
US $6.04 |
||
| replacement | |||||
|
7
|
7
09280-70005-000 O RING(D:3.1,ID:69.4)Band (d:3.1 id:69.4) |
09280-70005-000 |
from US $3.94 |
||
|
8
|
8
48570-94521-02M
Reservoir assy
|
48570-94521-02M |
— | ||
|
9
|
9
31281-94520-000
Screw
|
31281-94520-000 |
— | ||
| replacement | |||||
|
9
|
9
31281-94510-000 BOLT,THROUGHBolt, housing |
31281-94510-000 |
US $11.04 |
||
|
10
|
10
31170-94520-02M
Cover, upper
|
31170-94520-02M |
— | ||
|
11
|
11
31173-94520-000
Brush holder assy
|
31173-94520-000 |
— | ||
|
12
|
12
31133-94520-000
Brush
|
31133-94520-000 |
— | ||
| replacement | |||||
|
12
|
12
31133-94521-000
Brush
|
31133-94521-000 |
— | ||
|
13
|
13
31110-94520-02M
Yoke assy
|
31110-94520-02M |
— | ||
|
14
|
14
31311-94520-000
Armature
|
31311-94520-000 |
— | ||
|
15
|
15
48585-94520-000 O RINGO ring, valve body |
48585-94520-000 |
US $4.20 |
||
|
16
|
16
33899-95500-000
Seal, ptt cable
|
33899-95500-000 |
— | ||
|
17
|
17
36632-95501-000
Clamp, ptt pipe
|
36632-95501-000 |
— | ||
| replacements | |||||
|
17
|
17
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
17
|
17
09407-20404-000
Clamp
|
09407-20404-000 |
— | ||
|
17
|
17
09407-20405-000
Clamp
|
09407-20405-000 |
— | ||
|
18
|
18
09100-08219-000 BOLT(8X22)Bolt (8x22) |
09100-08219-000 |
US $43.80 |
||
|
19
|
19
09162-08003-000
Lock washer
|
09162-08003-000 |
— | ||
| replacement | |||||
|
19
|
19
09162-08007-000 WASHER,LOCKLock washer |
09162-08007-000 |
from US $2.35 |
||
|
20
|
20
09108-08130-000 BOLT,STUDStud bolt; |
09108-08130-000 |
US $7.45 |
||
|
21
|
21
09140-08016-000
Nut
|
09140-08016-000 |
— | ||
| replacement | |||||
|
21
|
21
09140-08023-XC0 NUT |
09140-08023-XC0 |
from US $1.93 |
||
|
22
|
22
09162-08007-000 WASHER,LOCKLock washer |
09162-08007-000 |
from US $2.35 |
||
|
23
|
23
38423-95501-000
Tube, trim relay lead
|
38423-95501-000 |
— | ||
| replacement | |||||
|
23
|
23
33833-91J00-000 TUBE,SWITCH LEAD(L:250) |
33833-91J00-000 |
US $4.64 |
||
|
24
|
24
33835-95500-000
Clamp,motor cab
Tce1:std |
33835-95500-000 |
— | ||
|
25
|
25
48131-95200-000
Spacer, power u
Spacer power unit; Opt port |
48131-95200-000 |
— | ||
|
26
|
26
09108-08137-000 BOLT,STUDBolt, stud Stud bolt; Opt port |
09108-08137-000 |
from US $8.23 |
||
|
27
|
27
09140-08016-000
Nut
Opt port |
09140-08016-000 |
— | ||
| replacement | |||||
|
27
|
27
09140-08023-XC0 NUTOpt port |
09140-08023-XC0 |
from US $1.93 |
||
|
28
|
28
09162-08007-000 WASHER,LOCKLock washer Opt port |
09162-08007-000 |
from US $2.35 |
||
