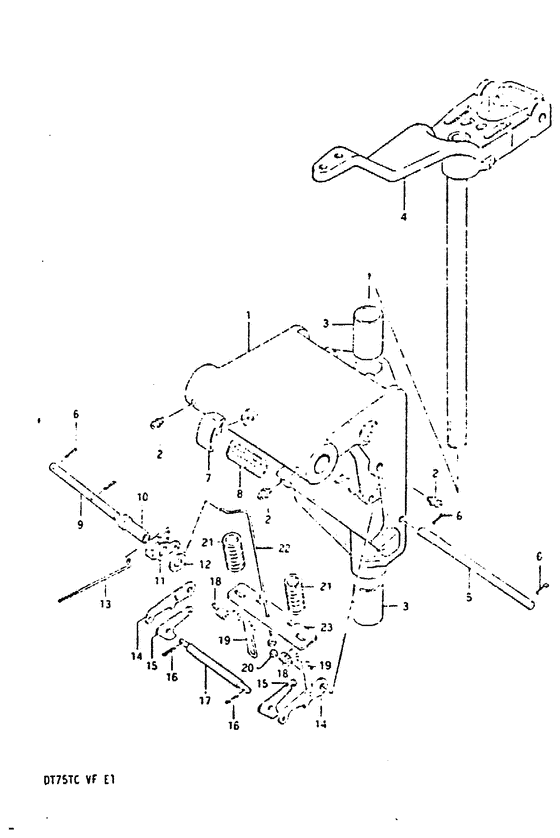

Swivel bracket (Model qd) Diagram Suzuki DT75 L/UL
- Year
- 1984
- Model
- DT75
- Year
- 1984
- Engine
- 07501-402330~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43111-95205-02M
Bracket swivel(
|
43111-95205-02M |
— | ||
|
2
|
2
22511-99000-000
Grease nipple
|
22511-99000-000 |
— | ||
| replacement | |||||
|
2
|
2
22511-99011-000 NIPPLE,GREASE |
22511-99011-000 |
from US $2.40 |
||
|
3
|
3
09306-26005-000
Bush, steering
Bushing, steering; |
09306-26005-000 |
— | ||
|
4
|
4
43750-95221-02M
Bracket, steering (l type)
|
43750-95221-02M |
— | ||
