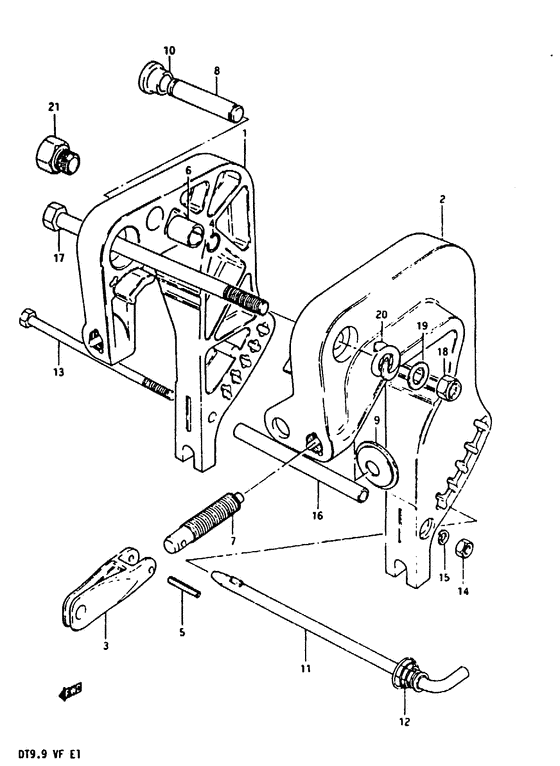

Clamp bracket Diagram Suzuki DT9.9 S/L/UL
- Year
- 1984
- Model
- DT9.9
- Year
- 1984
- Engine
- 00993-406191~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-93902-02M
Bracket, clamp stbo
|
41111-93902-02M |
— | ||
| replacements | |||||
|
1
|
1
09303-14003-000 BUSH |
09303-14003-000 |
US $23.90 |
||
|
1
|
1
41110-89E20-0ED
BRACKET,CLAMP STBD
|
41110-89E20-0ED |
— | ||
|
1
|
1
45420-92DL0-000 PIN,TILT LOCK |
45420-92DL0-000 |
US $29.60 |
||
|
2
|
2
41121-93901-02M
Bracket, clamp port
~407193 |
41121-93901-02M |
— | ||
|
2
|
2
41121-93902-02M
Bracket, clamp port
407194~ |
41121-93902-02M |
— | ||
|
3
|
3
41212-93000-02M
Handle, clamp
|
41212-93000-02M |
— | ||
| replacement | |||||
|
3
|
3
41212-93001-0ED
HANDLE,CLAMP(GRAY)
|
41212-93001-0ED |
— | ||
|
4
|
4
09380-11007-000
Circlip
|
09380-11007-000 |
— | ||
|
5
|
5
09205-06012-000 Spring pin |
09205-06012-000 |
from US $1.04 |
||
| replacement | |||||
|
5
|
5
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) |
09205-06007-000 |
from US $1.04 |
||
|
6
|
6
09303-14003-000 BUSH |
09303-14003-000 |
US $23.90 |
||
|
7
|
7
41211-93910-000
Screw clamp
Screw, clamp, l:78; |
41211-93910-000 |
— | ||
| replacement | |||||
|
7
|
7
41211-93920-000 SCREW,CLAMPScrew, clamp, l:90 Screw, clamp, l:78; |
41211-93920-000 |
US $13.14 |
||
|
7
|
7
41211-93002-000
Screw, clamp, l:78
Opt |
41211-93002-000 |
— | ||
| replacement | |||||
|
7
|
7
41211-93920-000 SCREW,CLAMPScrew, clamp, l:90 Opt |
41211-93920-000 |
US $13.14 |
||
|
7
|
7
41211-93702-000
Screw, clamp, l:90
Opt |
41211-93702-000 |
— | ||
| replacement | |||||
|
7
|
7
41211-93920-000 SCREW,CLAMPScrew, clamp, l:90 Opt |
41211-93920-000 |
US $13.14 |
||
|
7
|
7
41211-93712-000
Screw, clamp, l:68
E1:opt, |
41211-93712-000 |
— | ||
| replacement | |||||
|
7
|
7
41211-93900-000 SCREW,CLAMPScrew, clamp, l:68 E1:opt, |
41211-93900-000 |
US $17.60 |
||
|
8
|
8
41222-93910-000 PIN,TAIL STOPPERPin, tilt stopper |
41222-93910-000 |
US $17.30 |
||
|
9
|
9
41213-98100-000
PLATE,CLAMP
Plate, clamp; |
41213-98100-000 |
— | ||
| replacement | |||||
|
9
|
9
41213-94J01-000 PLATE,CLAMPPlate, clamp; |
41213-94J01-000 |
US $3.04 |
||
|
10
|
10
41221-96300-000
Knob, tilt stopper
|
41221-96300-000 |
— | ||
| replacement | |||||
|
10
|
10
41221-96301-000 KNOB,TILT STOPPER PINKnob, tilt stopper |
41221-96301-000 |
US $2.74 |
||
|
11
|
11
45420-93900-000
Pin tilt lock
|
45420-93900-000 |
— | ||
| replacement | |||||
|
11
|
11
45420-9390V-000
PIN,TILT LOCK
|
45420-9390V-000 |
— | ||
|
12
|
12
09441-17001-000 SPRING |
09441-17001-000 |
US $2.24 |
||
|
13
|
13
09100-06105-000
Bolt
|
09100-06105-000 |
— | ||
|
14
|
14
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
15
|
15
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
16
|
16
09180-06113-02M
Spacer
|
09180-06113-02M |
— | ||
|
17
|
17
09100-10199-000
BOLT(10X170)
|
09100-10199-000 |
— | ||
|
18
|
18
09159-10050-000 NUT |
09159-10050-000 |
US $5.92 |
||
|
19
|
19
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
20
|
20
09440-22006-000
Spring
|
09440-22006-000 |
— | ||
| replacement | |||||
|
20
|
20
09440-22008-000 SPRINGSpring, tiller handle brkt |
09440-22008-000 |
US $16.72 |
||
|
21
|
21
41141-94300-000
Attachment,cabl
Attachment, steering cable; Opt |
41141-94300-000 |
— | ||
| replacement | |||||
|
21
|
21
41141-94301-000 ATTACHMENT,STEERING ADJUSTERAttachment, steering cable; Opt |
41141-94301-000 |
US $52.99 |
||
