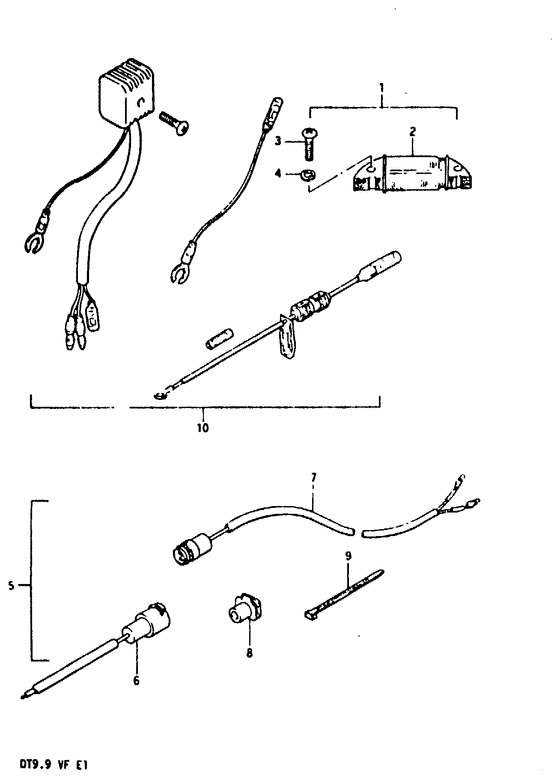

Electrical (Optional;) Diagram Suzuki DT9.9 S/L/UL
- Year
- 1984
- Model
- DT9.9
- Year
- 1984
- Engine
- 00993-406191~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32200-93900-000
Coil set, lighting
|
32200-93900-000 |
— | ||
| replacement | |||||
|
1
|
1
32200-93901-000 COIL SET,LIGHTINGCoil, lighting |
32200-93901-000 |
from US $66.98 |
||
|
2
|
2
32120-93900-000
Coil, lighting
|
32120-93900-000 |
— | ||
| replacement | |||||
|
2
|
2
32200-93901-000 COIL SET,LIGHTINGCoil, lighting |
32200-93901-000 |
from US $66.98 |
||
|
3
|
3
02112-06258-000
Screw
|
02112-06258-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-06257-000 SCREW |
02112-06257-000 |
from US $0.80 |
||
|
4
|
4
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
5
|
5
39600-93900-000
Receptacle set
Receptacle set; |
39600-93900-000 |
— | ||
| replacements | |||||
|
5
|
5
39600-93910-000 Receptacle setReceptacle set; |
39600-93910-000 |
US $45.96 |
||
|
5
|
5
39600-93912-000 Receptacle SetReceptacle set; |
39600-93912-000 |
US $53.97 |
||
|
6
|
6
39602-93900-000 PLUG ASSY,LAMP CORDPlug, lighting Plug assy, lighting; |
39602-93900-000 |
US $38.27 |
||
|
7
|
7
39601-93902-000
Receptacle assy, lighting
|
39601-93902-000 |
— | ||
| replacements | |||||
|
7
|
7
39601-95D00-000
RECEPTACLE
|
39601-95D00-000 |
— | ||
|
7
|
7
39601-95D01-000 Receptacle |
39601-95D01-000 |
US $35.70 |
||
|
8
|
8
39603-93900-000
GROMMET
|
39603-93900-000 |
— | ||
|
9
|
9
36632-95501-000
Clamp, ptt pipe
|
36632-95501-000 |
— | ||
| replacements | |||||
|
9
|
9
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
9
|
9
09407-20404-000
Clamp
|
09407-20404-000 |
— | ||
|
9
|
9
09407-20405-000
Clamp
|
09407-20405-000 |
— | ||
|
10
|
10
32801-93901-000
Rectifier set
|
32801-93901-000 |
— | ||
| replacements | |||||
|
10
|
10
32801-96304-000
RECTIFIER SET
|
32801-96304-000 |
— | ||
|
10
|
10
32801-96305-000
Rectifier Set
|
32801-96305-000 |
— | ||
|
10
|
10
32801-96306-000 Rectifier Set |
32801-96306-000 |
US $101.20 |
||
