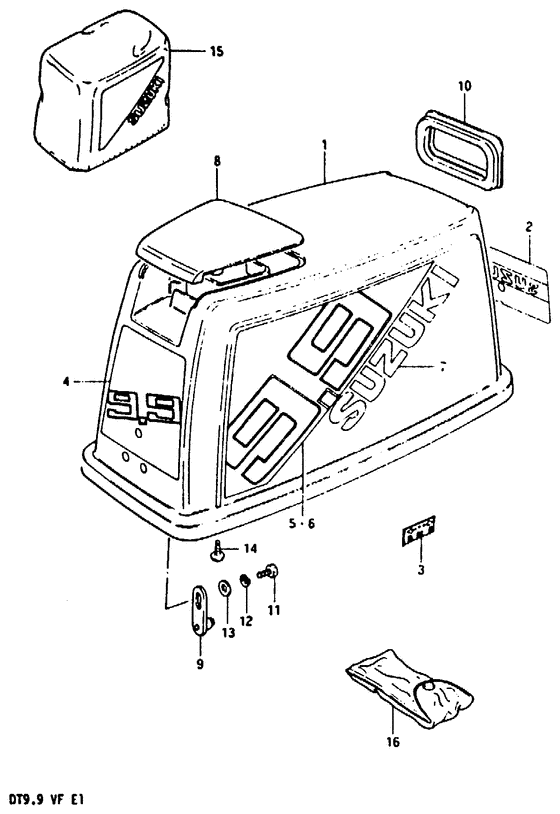

Engine cover Diagram Suzuki DT9.9 S/L/UL
- Year
- 1984
- Model
- DT9.9
- Year
- 1984
- Engine
- 00993-406191~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61402-93820-02M
Cover set, engine
~410065 |
61402-93820-02M |
— | ||
| replacement | |||||
|
1
|
1
61631-94410-000
HOOK,LWR ENGINE COVER
~410065 |
61631-94410-000 |
— | ||
|
1
|
1
61402-93821-02M
Cover set, engine
410066~ |
61402-93821-02M |
— | ||
| replacement | |||||
|
1
|
1
61631-94410-000
HOOK,LWR ENGINE COVER
410066~ |
61631-94410-000 |
— | ||
|
2
|
2
61422-93952-000
Mark fr emblem
Mark, emblem, front; |
61422-93952-000 |
— | ||
|
3
|
3
21131-96003-000
Mark,clutch shi
|
21131-96003-000 |
— | ||
| replacements | |||||
|
3
|
3
21131-96010-000
MARK,CLUTCH SHIFT
|
21131-96010-000 |
— | ||
|
3
|
3
21131-91J00-YAY
Mark,clutch Shift
|
21131-91J00-YAY |
— | ||
|
4
|
4
61435-93951-000
Mark rr emblem
|
61435-93951-000 |
— | ||
|
5
|
5
61443-93952-000
Decal eng cover
Decal, cover, rh; |
61443-93952-000 |
— | ||
|
6
|
6
61453-93952-000
Decal eng cover
Decal, cover, lh; |
61453-93952-000 |
— | ||
|
7
|
7
61441-96300-000
Emblem, suzuki
|
61441-96300-000 |
— | ||
| replacement | |||||
|
7
|
7
68111-32B10-019
EMBLEM,FUEL TANK(BLACK)
|
68111-32B10-019 |
— | ||
|
8
|
8
61431-93901-02M
Handle, tilt up
|
61431-93901-02M |
— | ||
| replacement | |||||
|
8
|
8
61431-93901-0ED
HANDLE,TILT UP
|
61431-93901-0ED |
— | ||
|
9
|
9
61610-96301-000
Fastener
|
61610-96301-000 |
— | ||
| replacement | |||||
|
9
|
9
61610-96302-000
FASTENER
|
61610-96302-000 |
— | ||
|
10
|
10
61622-93901-000
SEAL,RECOIL STARTER
Seal, recoil starter; |
61622-93901-000 |
— | ||
|
11
|
11
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
12
|
12
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
13
|
13
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
14
|
14
03242-06169-000
Screw, tilt handle
|
03242-06169-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
15
|
15
68110-93010-000
Cover, weather
Opt |
68110-93010-000 |
— | ||
| replacement | |||||
|
15
|
15
68110-94400-000
ENGINE COVER
Opt |
68110-94400-000 |
— | ||
|
16
|
16
09800-81800-000
Tool
|
09800-81800-000 |
— | ||
| replacements | |||||
|
16
|
16
09800-01001-000
TOOL ASSY
|
09800-01001-000 |
— | ||
|
16
|
16
09800-01016-000 Tool Assy |
09800-01016-000 |
US $63.20 |
||
