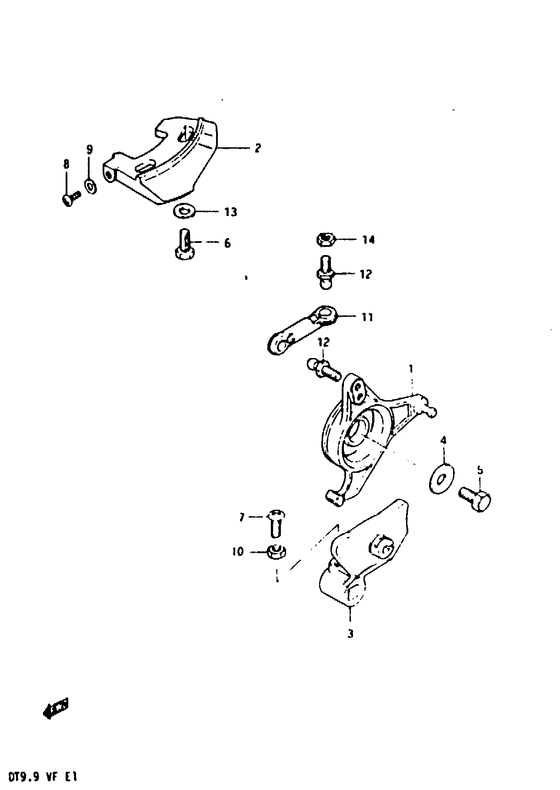

Throttle control Diagram Suzuki DT9.9 S/L/UL
- Year
- 1984
- Model
- DT9.9
- Year
- 1984
- Engine
- 00993-406191~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19121-93901-000 LEVER,THROTTLE CONTROL |
19121-93901-000 |
US $24.80 |
||
| replacement | |||||
|
1
|
1
19121-90L00-000
LEVER,THROTTLE CONTROL
|
19121-90L00-000 |
— | ||
|
2
|
2
19141-93901-000
Cam throttle
|
19141-93901-000 |
— | ||
|
3
|
3
19811-93900-000 LIMITER,THROTTLELimiter, throttle |
19811-93900-000 |
US $12.77 |
||
|
4
|
4
09160-06046-000 WASHER(6.5X20X1.5)Washer (6.5x20x1.5) Washer (6.5*20*1.5); |
09160-06046-000 |
from US $1.44 |
||
|
5
|
5
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
6
|
6
01107-05128-000
Bolt
|
01107-05128-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-05127-000 Bolt |
01500-05127-000 |
from US $3.32 |
||
|
7
|
7
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
8
|
8
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
9
|
9
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
10
|
10
08310-11058-000
Nut
|
08310-11058-000 |
— | ||
| replacement | |||||
|
10
|
10
08310-00057-000 NUT |
08310-00057-000 |
from US $0.32 |
||
|
11
|
11
19132-94500-000
Connector
~410065 |
19132-94500-000 |
— | ||
| replacement | |||||
|
11
|
11
19132-94501-000 CONNECTOR~410065 |
19132-94501-000 |
US $5.92 |
||
|
11
|
11
19132-94501-000 CONNECTOR410066~ |
19132-94501-000 |
US $5.92 |
||
|
12
|
12
09119-05010-000 PIVOTPivot, throttle lever Pawl pivot; |
09119-05010-000 |
from US $3.79 |
||
|
13
|
13
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
14
|
14
09140-05001-000
Nut
|
09140-05001-000 |
— | ||
| replacement | |||||
|
14
|
14
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
