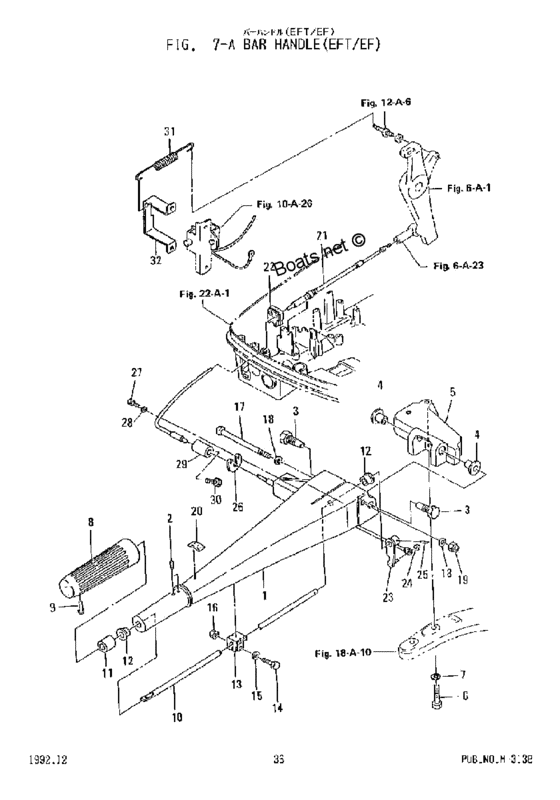

Bar handle (eft-ef) Diagram Tohatsu M90A
- Year
- 2002
- Model
- M90A
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
00
|
00
3B7-63041-0 Throttle Shaft |
3B7-63041-0 |
from US $48.96 |
||
|
00
|
00
3B7-66226-0 Grommet |
3B7-66226-0 |
from US $10.80 |
||
|
00
|
00
3B7-63051-0 Handle bBLUE |
3B7-63051-0 |
US $140.48 |
||
|
00
|
00
3B7-63203-0 Bolt 8-105 |
3B7-63203-0 |
from US $12.67 |
||
| replacement | |||||
|
00
|
00
3B7-63203-1 Bolt |
3B7-63203-1 |
from US $11.09 |
||
|
00
|
00
3B7-63054-0 Collar Throttle Cable |
3B7-63054-0 |
from US $10.37 |
||
| replacement | |||||
|
00
|
00
3B7-63054-1 Collar Throttle Cable |
3B7-63054-1 |
from US $8.93 |
||
|
00
|
00
3B7-63011-0 Handle a |
3B7-63011-0 |
US $421.51 |
||
|
00
|
00
345-63048-0 Throttle Shaft Damper |
345-63048-0 |
US $1.44 |
||
|
00
|
00
3B7-63064-0 Lever Throttle Shaft |
3B7-63064-0 |
from US $20.59 |
||
| replacement | |||||
|
00
|
00
3B7-63068-0 Lever |
3B7-63068-0 |
from US $18 |
||
|
00
|
00
3B7S63051-1 Handle BGRAY |
3B7S63051-1 |
from US $102.61 |
||
|
00
|
00
940-13080-0 Washer |
940-13080-0 |
US $0.58 |
||
| replacement | |||||
|
00
|
00
940103-0800 Washer |
940103-0800 |
from US $0.99 |
||
|
00
|
00
3B7-63054-1 Collar Throttle Cable |
3B7-63054-1 |
from US $8.93 |
||
|
00
|
00
350-63046-0 Bushing |
350-63046-0 |
from US $1.40 |
||
|
00
|
00
930403-0400 Nylon Nut |
930403-0400 |
from US $1.44 |
||
|
00
|
00
916114-0845 Bolt |
916114-0845 |
from US $1.87 |
||
|
00
|
00
930403-0800 Nylon Nut |
930403-0800 |
from US $2.81 |
||
|
00
|
00
910-43061-0 Bolt |
910-43061-0 |
from US $1.15 |
||
| replacement | |||||
|
00
|
00
910403-0610 Bolt |
910403-0610 |
US $1.30 |
||
|
00
|
00
3B2-63035-0 Friction Piece Grip |
3B2-63035-0 |
from US $3.74 |
||
| replacement | |||||
|
00
|
00
3B2-63035-1 Friction Piece |
3B2-63035-1 |
from US $3.02 |
||
|
00
|
00
951403-0316 Spring Pin |
951403-0316 |
from US $0.56 |
||
|
00
|
00
941303-0800 Spring Washer |
941303-0800 |
from US $0.56 |
||
|
00
|
00
334-72019-0 Label Throttle |
334-72019-0 |
from US $1.35 |
||
| replacement | |||||
|
00
|
00
369-72019-1 Throttle Decal |
369-72019-1 |
US $26.64 |
||
|
00
|
00
3B7-63736-0 Spring |
3B7-63736-0 |
from US $7.06 |
||
|
00
|
00
353-63029-0 Screw |
353-63029-0 |
from US $1.58 |
||
|
00
|
00
910103-0620 Bolt |
910103-0620 |
from US $1.01 |
||
|
00
|
00
3B7-63604-0 Throttle Cable Holder |
3B7-63604-0 |
from US $18 |
||
|
00
|
00
350-63012-0 Grip |
350-63012-0 |
US $33.79 |
||
| replacement | |||||
|
00
|
00
350-63012-2 Grip |
350-63012-2 |
from US $21.31 |
||
|
00
|
00
3B7-63600-0 Throttle cable |
3B7-63600-0 |
from US $86.40 |
||
|
00
|
00
353-63201-1 Bolt Handle A |
353-63201-1 |
from US $22.46 |
||
| replacement | |||||
|
00
|
00
353-63201-2 Bolt |
353-63201-2 |
from US $19.58 |
||
|
00
|
00
3B7-63737-0 Stay |
3B7-63737-0 |
from US $31.10 |
||
|
00
|
00
940-13060-0
Washer
|
940-13060-0 |
— | ||
| replacement | |||||
|
00
|
00
940103-0600 Washer |
940103-0600 |
US $0.84 |
||
|
00
|
00
910103-0510 Bolt |
910103-0510 |
from US $0.72 |
||
|
00
|
00
920-83052-0 Screw |
920-83052-0 |
from US $0.86 |
||
| replacement | |||||
|
00
|
00
920803-0520 Screw |
920803-0520 |
from US $0.86 |
||
|
00
|
00
3B7-63600-1 Throttle cable |
3B7-63600-1 |
US $106.65 |
||
|
00
|
00
353-63207-0 Collar |
353-63207-0 |
from US $1.12 |
||
|
00
|
00
930103-0600 Nut |
930103-0600 |
from US $1.01 |
||
|
00
|
00
941303-0500 Spring Washer |
941303-0500 |
from US $0.86 |
||
|
01
|
01
3B7-63011-1 Handle aBLUE |
3B7-63011-1 |
US $421.51 |
||
|
01
|
01
3B7S63011-2 Handle aGRAY |
3B7S63011-2 |
from US $269.66 |
||
