	Description	OEM Part #	Price
00	00 940-13040-0 Washer	940-13040-0	US $0.29
	replacement
00	00 940103-0400 Washer	940103-0400	from US $0.71
00	00 3B7-83715-0 Cable Joint	3B7-83715-0	US $5.46
	replacement
00	00 3B7-83715-2 Cable Joint	3B7-83715-2	from US $4.03
00	00 332-66308-0 Washer (3C8-66308-0)	332-66308-0	from US $1.15
	replacement
00	00 3C8-66308-0 Washer	3C8-66308-0	from US $1.15
00	00 951503-0212 Split Pin	951503-0212	from US $0.58
00	00 3B7-63730-0 Washer	3B7-63730-0	from US $1.44
00	00 353-66124-0 Collar, stopper plate	353-66124-0	US $0.77
00	00 353-66215-1 Shift Rod (L)	353-66215-1	from US $22.90
00	00 3B7-66153-0 Spring, shift assist	3B7-66153-0	from US $3.13
	replacement
00	00 3MR-66148-0 Link Rod Assy (Shift)	3MR-66148-0	from US $26.06
00	00 353-83719-0 Washer 8.5-18-1.6	353-83719-0	US $2.64
	replacement
00	00 3AA-83719-0 Washer	3AA-83719-0	from US $2.64
00	00 332-61315-0 Washer	332-61315-0	from US $1.15
00	00 3B2-83865-0 Nut	3B2-83865-0	from US $0.72
00	00 3B7-63713-0 Bushing	3B7-63713-0	from US $1.58
00	00 9650-2-1605 Ball	9650-2-1605	from US $0.43
	replacement
00	00 965002-1605 Ball	965002-1605	from US $0.58
00	00 353-66110-0 Shift Rod Lever	353-66110-0	from US $21.46
00	00 940103-0500 Washer	940103-0500	from US $0.43
00	00 951603-0800 Snap Pin	951603-0800	from US $0.86
00	00 353-83728-0 Cable Pin	353-83728-0	US $10.14
	replacement
00	00 353-83728-1 Pin	353-83728-1	from US $9.65
00	00 353-72013-0 Clutch Decal	353-72013-0	from US $4.03
00	00 3B7-63732-0 Collar 8.4-12-17	3B7-63732-0	from US $1.66
	replacement
00	00 3B7-63732-1 Collar	3B7-63732-1	from US $2.34
00	00 332-66112-0 Spring	332-66112-0	from US $0.86
00	00 930403-1000 Nylon Nut	930403-1000	from US $3.31
00	00 3B7-66152-0 Plug, shift assist	3B7-66152-0	from US $3.50
	replacement
00	00 3MR-66148-0 Link Rod Assy (Shift)	3MR-66148-0	from US $26.06
00	00 951403-0316 Spring Pin	951403-0316	from US $0.56
00	00 930103-0600 Nut	930103-0600	from US $1.01
00	00 3B7-63731-0 Washer	3B7-63731-0	from US $1.73
00	00 940-13060-0 Washer	940-13060-0	—
	replacement
00	00 940103-0600 Washer	940103-0600	US $0.84
00	00 3B7-66224-0 Shaft	3B7-66224-0	from US $42.48
00	00 930103-0500 Nut	930103-0500	US $0.58
00	00 353-66115-1 Holder shift lever stopper	353-66115-1	from US $58.88
00	00 941303-0600 Spring Washer	941303-0600	from US $1.01
00	00 916103-0835 Bolt	916103-0835	US $2.81
	replacement
00	00 9161E3-0835 Bolt	9161E3-0835	from US $2.59
00	00 353-66145-0 Holder shift lever shaft	353-66145-0	from US $4.60
00	00 3B7-66134-0 Shift Lever Rod	3B7-66134-0	from US $34.27
00	00 346-05234-0 Rod Joint	346-05234-0	from US $2.45
00	00 910114-0825 Bolt	910114-0825	from US $1.15
00	00 3B7-66151-0 Shift Assist Case	3B7-66151-0	from US $4.75
	replacement
00	00 3MR-66148-0 Link Rod Assy (Shift)	3MR-66148-0	from US $26.06
00	00 941303-0800 Spring Washer	941303-0800	from US $0.56
00	00 910114-0625 Bolt	910114-0625	from US $0.99
00	00 940-13050-0 Washer	940-13050-0	US $0.29
	replacement
00	00 940103-0500 Washer	940103-0500	from US $0.43
00	00 3B7-66122-0 Shift Arm	3B7-66122-0	from US $8.21
	replacement
00	00 3B7-66122-2 Shift Arm	3B7-66122-2	from US $12.96
00	00 940-13080-0 Washer	940-13080-0	US $0.58
	replacement
00	00 940103-0800 Washer	940103-0800	from US $0.99

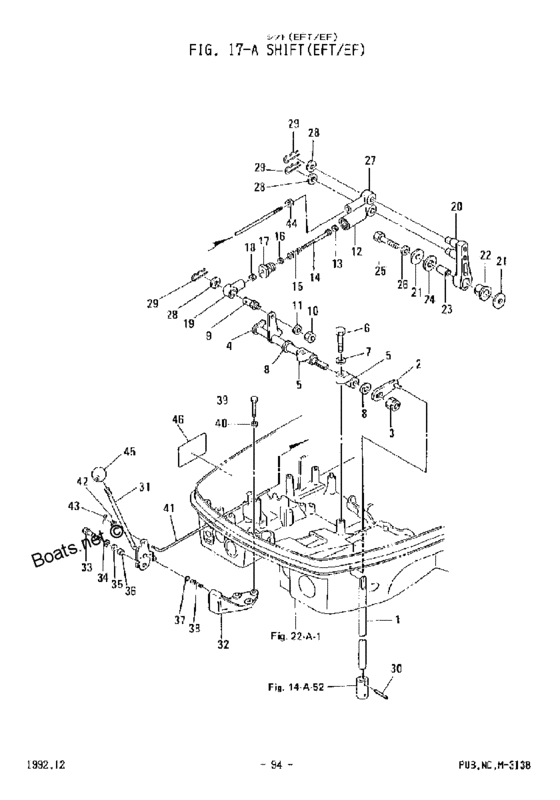

Shift (eft-ef) Diagram Tohatsu M90A General 14623845-812256

Shift (eft-ef) Diagram Tohatsu M90A General 14623845-812256
