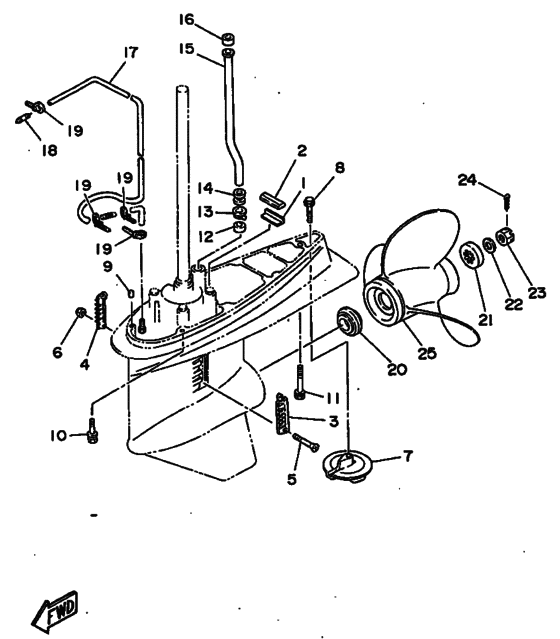

Lower casing & drive Diagram Yamaha 100 ETOL
- Year
- 1997
- Model
- 100A
- Model code
- 64W
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 100
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-45376-00-94
Guide, Seal Damper
CONTENU DE UNITE INFERIEUR |
663-45376-00-94 |
— | ||
| replacement | |||||
|
1
|
1
663-45376-00-00 Guide, Seal DamperCONTENU DE UNITE INFERIEUR |
663-45376-00-00 |
from US $5.82 |
||
|
2
|
2
688-45375-00-00 Damper, SealCONTENU DE UNITE INFERIEUR |
688-45375-00-00 |
from US $6.66 |
||
|
3
|
3
688-45214-02-00 Cover, Water Inlet 1 |
688-45214-02-00 |
from US $9.78 |
||
|
4
|
4
688-45215-02-00 Cover, Water Inlet 2 |
688-45215-02-00 |
from US $8.42 |
||
|
5
|
5
90142-05M03-00 Screw, Countersunk |
90142-05M03-00 |
US $3.26 |
||
| replacement | |||||
|
5
|
5
90152-05M07-00 Screw, Countersunk |
90152-05M07-00 |
from US $3.26 |
||
|
6
|
6
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
7
|
7
6E5-45371-01-00 Tab-Trim |
6E5-45371-01-00 |
from US $25.26 |
||
|
8
|
8
90105-10M67-00 Bolt, Flange |
90105-10M67-00 |
US $8.60 |
||
| replacement | |||||
|
8
|
8
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $6.40 |
||
|
9
|
9
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
10
|
10
90101-10M70-00 Bolt |
90101-10M70-00 |
from US $10.34 |
||
|
11
|
11
90119-10M89-00 Bolt, With Washer |
90119-10M89-00 |
from US $9.07 |
||
| replacement | |||||
|
11
|
11
901-19100-71-00 BOLT WITH WASHER |
901-19100-71-00 |
from US $7.70 |
||
|
12
|
12
6E5-44365-00-00
Damper, Water Seal 1
CONTENU DE UNITE INFERIEUR |
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
12
|
12
6E5-44365-01-00 DAMPER, WATER SEAL 1CONTENU DE UNITE INFERIEUR |
6E5-44365-01-00 |
from US $2.93 |
||
|
13
|
13
6E5-44312-00-00 Cover, Water Pump HousingCONTENU DE UNITE INFERIEUR |
6E5-44312-00-00 |
from US $2.70 |
||
|
14
|
14
6E5-44366-00-00 Damper, Water Seal 2 |
6E5-44366-00-00 |
US $5.55 |
||
|
15
|
15
6E5-44361-00-00 Tube, Water 1 |
6E5-44361-00-00 |
from US $36.70 |
||
|
16
|
16
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
16
|
16
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.93 |
||
|
17
|
17
90445-07MF0-00 Hose (L1030) |
90445-07MF0-00 |
US $27.06 |
||
| replacement | |||||
|
17
|
17
904-4507M-21-00 Hose (L1160) |
904-4507M-21-00 |
from US $16 |
||
|
18
|
18
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $6.23 |
||
|
19
|
19
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
19
|
19
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
19
|
19
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
20
|
20
6E5-45987-01-00 Spacer 1 |
6E5-45987-01-00 |
US $97.26 |
||
| replacement | |||||
|
20
|
20
63P-45987-00-00 Spacer 1 |
63P-45987-00-00 |
from US $69.77 |
||
|
21
|
21
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $27.28 |
||
|
22
|
22
92990-18200-00 Washer |
92990-18200-00 |
from US $3.69 |
||
|
23
|
23
90171-18M04-00 Nut, Castle |
90171-18M04-00 |
from US $12.46 |
||
|
24
|
24
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.36 |
||
|
25
|
25
688-45970-03-98 Propeller (3X13"x19"-K)3X13"X19"-K; UR |
688-45970-03-98 |
US $872.52 |
||
| replacement | |||||
|
25
|
25
688-45970-03-00 Propeller (3X13"x19"-K)3X13"X19"-K; UR |
688-45970-03-00 |
from US $872.52 |
||
|
25
|
25
688-45930-02-98 Propeller (3X13"x17"-K)3X13"X17"-K; UR |
688-45930-02-98 |
US $872.52 |
||
| replacement | |||||
|
25
|
25
688-45930-02-00 Propeller (3X13"x17"-K2)3X13"X17"-K; UR |
688-45930-02-00 |
from US $872.52 |
||
