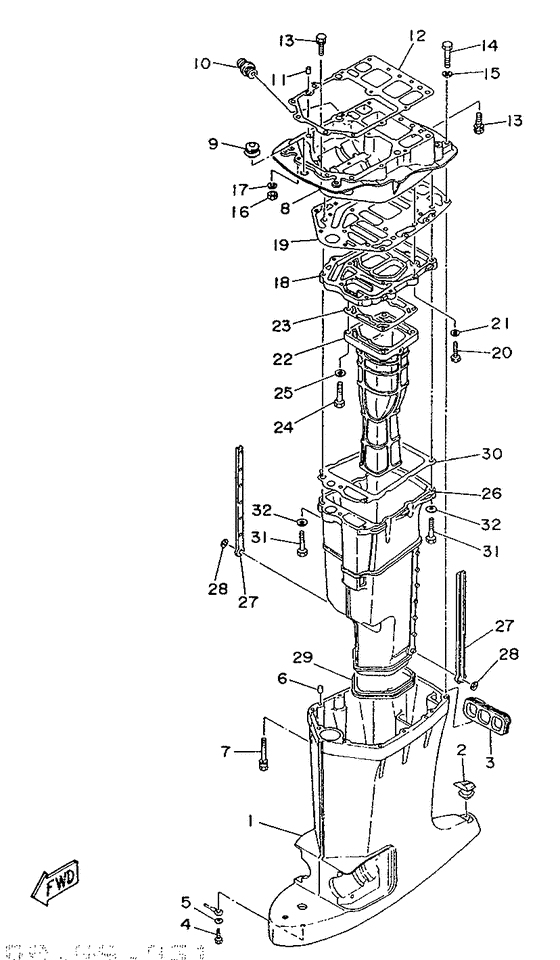

Upper casing Diagram Yamaha 115 ETOL
- Year
- 1996
- Model
- 115B
- Model code
- 6E5
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 115
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-45111-01-8D Casing, Upper |
6E5-45111-01-8D |
US $1,198.56 |
||
| replacement | |||||
|
01
|
01
6E5-45111-02-8D Casing, Upper |
6E5-45111-02-8D |
from US $1,094.82 |
||
|
02
|
02
6E5-45155-00-00 Cap |
6E5-45155-00-00 |
from US $16.01 |
||
|
03
|
03
6E5-42769-00-00 Seal, Rubber |
6E5-42769-00-00 |
US $13.03 |
||
|
04
|
04
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
04
|
04
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
05
|
05
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
06
|
06
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
07
|
07
90119-08M78-00 Bolt, With Washer |
90119-08M78-00 |
US $18.56 |
||
| replacement | |||||
|
07
|
07
90119-08078-00 Bolt, With Washer |
90119-08078-00 |
from US $18.56 |
||
|
08
|
08
6G5-41137-02-94 Guide, Exhaust |
6G5-41137-02-94 |
US $409.20 |
||
| replacement | |||||
|
08
|
08
6G5-41137-02-CA Guide, Exhaust |
6G5-41137-02-CA |
from US $409.20 |
||
|
09
|
09
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
10
|
10
6G5-12581-00-00 Joint, Hose 1 |
6G5-12581-00-00 |
from US $6.38 |
||
|
11
|
11
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
12
|
12
6G5-45113-A1-00 Gasket, Upper Casing |
6G5-45113-A1-00 |
US $63.14 |
||
| replacement | |||||
|
12
|
12
6G5-45113-A2-00 Gasket, Upper Casing |
6G5-45113-A2-00 |
from US $49.01 |
||
|
13
|
13
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
13
|
13
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
14
|
14
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
17
|
17
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
6G5-41131-01-5B Manifold, Ext. 1 |
6G5-41131-01-5B |
US $96.02 |
||
| replacement | |||||
|
18
|
18
6G5-41131-01-CA Manifold, Ext. 1 |
6G5-41131-01-CA |
from US $96.02 |
||
|
19
|
19
6G5-45114-A0-00 Gasket, Upper Casing |
6G5-45114-A0-00 |
US $45.45 |
||
| replacement | |||||
|
19
|
19
6G5-45114-A1-00 Gasket, Upper Casing |
6G5-45114-A1-00 |
from US $30.89 |
||
|
20
|
20
97095-08030-00 Bolt |
97095-08030-00 |
US $2.69 |
||
| replacement | |||||
|
20
|
20
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
22
|
22
6E5-41132-10-5B Manifold, Exhaust |
6E5-41132-10-5B |
US $171.32 |
||
| replacement | |||||
|
22
|
22
6E5-41132-10-CA Manifold, Exhaust |
6E5-41132-10-CA |
from US $86.06 |
||
|
23
|
23
6E5-41134-A0-00 Gasket, Exhaust Manifold |
6E5-41134-A0-00 |
from US $4.04 |
||
|
24
|
24
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
25
|
25
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
26
|
26
6E5-14711-01-5B Muffler 1 |
6E5-14711-01-5B |
US $262.50 |
||
| replacement | |||||
|
26
|
26
6E5-14711-01-CA Muffler 1 |
6E5-14711-01-CA |
from US $262.50 |
||
|
27
|
27
6E5-14737-00-00 Damper, Muffler |
6E5-14737-00-00 |
from US $19.27 |
||
|
28
|
28
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
29
|
29
6E5-45123-00-00 Gasket, Muffler |
6E5-45123-00-00 |
from US $20.12 |
||
|
30
|
30
6E5-41135-A0-00 Gasket, Exhaust Manifold |
6E5-41135-A0-00 |
from US $7.42 |
||
|
31
|
31
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
32
|
32
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
