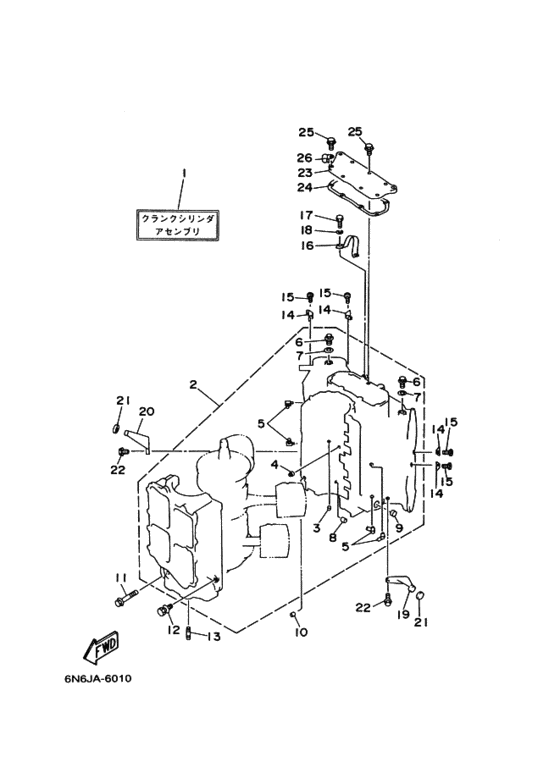

ｼﾘﾝﾀﾞ. ｸﾗﾝｸｹｰｽ 1 Diagram Yamaha 115 ETOL/XL
- Year
- 1999
- Model
- 115C
- Model code
- 6N6
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 115
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6N6-W0090-15-4D Crank Cylinder Assemblyクランクシリンダアセンブリ; 参照; ＵＲ １１５Ｃ ＊１ |
6N6-W0090-15-4D |
US $8,395.20 |
||
| replacement | |||||
|
1
|
1
6N6-W0090-18-1S Crank Cylinder Assyクランクシリンダアセンブリ; 参照; ＵＲ １１５Ｃ ＊１ |
6N6-W0090-18-1S |
from US $8,395.20 |
||
|
1
|
1
6N7-W0090-16-4D Crank Cylinder Assemblyクランクシリンダアセンブリ; ＵＲ １４０Ｃ ＊１ |
6N7-W0090-16-4D |
US $8,263.20 |
||
| replacement | |||||
|
1
|
1
6N7-W0090-20-1S Crank Cylinder Assyクランクシリンダアセンブリ; ＵＲ １４０Ｃ ＊１ |
6N7-W0090-20-1S |
from US $7,689.42 |
||
|
2
|
2
6N6-15100-01-94 Crankcase Assemblyクランクケースアセンブリ; ＵＲ １１５Ｃ |
6N6-15100-01-94 |
US $3,590.40 |
||
| replacement | |||||
|
2
|
2
6N6-15100-10-00 Crankcase Assyクランクケースアセンブリ; ＵＲ １１５Ｃ |
6N6-15100-10-00 |
from US $3,306.86 |
||
|
2
|
2
6N7-15100-01-94 Crankcase Assemblyクランクケースアセンブリ; ＵＲ １４０Ｃ |
6N7-15100-01-94 |
US $4,131.60 |
||
| replacements | |||||
|
2
|
2
6N7-15100-01-1S Crankcase Assyクランクケースアセンブリ; ＵＲ １４０Ｃ |
6N7-15100-01-1S |
US $4,131.60 |
||
|
2
|
2
6N7-15100-02-00 Crankcase Assyクランクケースアセンブリ; ＵＲ １４０Ｃ |
6N7-15100-02-00 |
US $5,134.50 |
||
|
3
|
3
624-11379-00-00 Valve, Check．バルブ，チエツク; |
624-11379-00-00 |
from US $3.72 |
||
|
4
|
4
663-11518-01-00 Lock, Bearing．ロツク，ベアリング; |
663-11518-01-00 |
from US $6.38 |
||
|
5
|
5
6E5-11372-00-00 Nipple, Hose．ニツプル，ホース; |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
5
|
5
6E5-11372-01-00 Nipple, Hose．ニツプル，ホース; |
6E5-11372-01-00 |
from US $8.08 |
||
|
6
|
6
903-4014M-00-00
Plug, Straight Screw
．プラグ，ストレイトスクリユ; |
903-4014M-00-00 |
— | ||
| replacement | |||||
|
6
|
6
90340-14M06-00 Plug, Straight Screw．プラグ，ストレイトスクリユ; |
90340-14M06-00 |
from US $6.51 |
||
|
7
|
7
904-30141-15-00 Gasket．ガスケツト; |
904-30141-15-00 |
from US $2.08 |
||
|
8
|
8
90384-06M07-00 Bush, Bimetal Formed．ブツシユ，バイメタルフオームド; |
90384-06M07-00 |
US $2.55 |
||
|
9
|
9
903-8414M-09-00
Bush, Bimetal Formed
．ブツシユ，バイメタルフオームド; |
903-8414M-09-00 |
— | ||
| replacement | |||||
|
9
|
9
903-84140-11-00 Bush, Bimetal Formed．ブツシユ，バイメタルフオームド; |
903-84140-11-00 |
US $2.83 |
||
|
10
|
10
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.84 |
||
|
11
|
11
90105-10M20-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10M20-00 |
from US $7.51 |
||
|
12
|
12
90119-08M23-00
Bolt, W/washer
|
90119-08M23-00 |
— | ||
|
13
|
13
90116-08M45-00 Bolt, Stud |
90116-08M45-00 |
US $10.48 |
||
| replacement | |||||
|
13
|
13
90116-08M14-00 Bolt, Stud |
90116-08M14-00 |
from US $8.01 |
||
|
14
|
14
6E5-11325-00-00 Anodeアノード; |
6E5-11325-00-00 |
from US $5.40 |
||
|
15
|
15
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.70 |
||
|
16
|
16
6E5-11119-00-00 Hanger, Engineハンガ，エンジン; |
6E5-11119-00-00 |
US $14.31 |
||
| replacement | |||||
|
16
|
16
6E5-11119-01-00 Hanger, Engineハンガ，エンジン; |
6E5-11119-01-00 |
from US $14.31 |
||
|
17
|
17
97013-08020-00 Boltボルト; |
97013-08020-00 |
from US $1.64 |
||
| replacement | |||||
|
17
|
17
97080-08020-00 Bolt(6Td)ボルト; |
97080-08020-00 |
from US $4.05 |
||
|
18
|
18
92903-08100-00 Washer, Springワツシヤ，スプリング; |
92903-08100-00 |
from US $1.63 |
||
| replacement | |||||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
6E5-42761-00-94 Stopperストツパ; |
6E5-42761-00-94 |
US $16.01 |
||
| replacement | |||||
|
19
|
19
6E5-42761-00-1S Stopperストツパ; |
6E5-42761-00-1S |
from US $16.01 |
||
|
20
|
20
6E5-42762-00-94 Stopperストツパ; |
6E5-42762-00-94 |
US $16.01 |
||
| replacement | |||||
|
20
|
20
6E5-42762-00-1S Stopperストツパ; |
6E5-42762-00-1S |
from US $14.47 |
||
|
21
|
21
663-44533-00-00 Damper, Upper Mount Rubberダンパ，アツパーマウントラバー; |
663-44533-00-00 |
from US $5.38 |
||
|
22
|
22
97513-06520-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97513-06520-00 |
from US $1.78 |
||
| replacement | |||||
|
22
|
22
970-24060-20-00 Bolt(3Dm)ボルト，ウイズワツシヤ; |
970-24060-20-00 |
from US $0.91 |
||
|
23
|
23
6K7-11371-01-9M Coverカバー; |
6K7-11371-01-9M |
US $32.02 |
||
| replacement | |||||
|
23
|
23
6K7-11371-01-1S Coverカバー; |
6K7-11371-01-1S |
from US $32.02 |
||
|
24
|
24
6E5-11381-A2-00 Gasket 1 |
6E5-11381-A2-00 |
from US $8.08 |
||
|
25
|
25
97513-06520-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97513-06520-00 |
from US $1.78 |
||
| replacement | |||||
|
25
|
25
970-24060-20-00 Bolt(3Dm)ボルト，ウイズワツシヤ; |
970-24060-20-00 |
from US $0.91 |
||
|
26
|
26
90465-08M07-00 Clamp |
90465-08M07-00 |
US $3.40 |
||
| replacement | |||||
|
26
|
26
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
