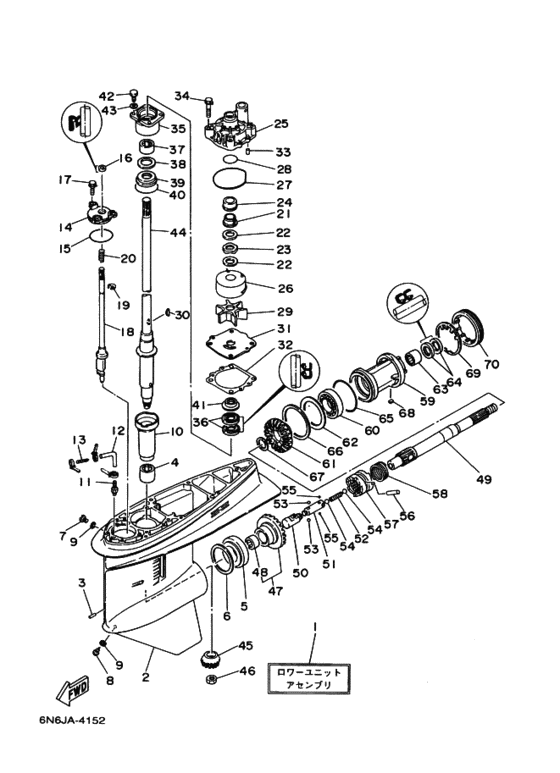

ﾛﾜｰｹｰｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 1 Diagram Yamaha 115 ETOL/XL
- Year
- 1999
- Model
- 115C
- Model code
- 6N6
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 115
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E5-45300-15-8D Lower Unit Assemblyロワーユニツトアセンブリ; ＵＲ ＬＯＮＧ ＊１ |
6E5-45300-15-8D |
US $3,616.80 |
||
| replacements | |||||
|
1
|
1
6E5-45300-18-8D Lower Unit Assyロワーユニツトアセンブリ; ＵＲ ＬＯＮＧ ＊１ |
6E5-45300-18-8D |
US $3,616.80 |
||
|
1
|
1
6E5-45300-1A-8D Lower Unit Assyロワーユニツトアセンブリ; ＵＲ ＬＯＮＧ ＊１ |
6E5-45300-1A-8D |
US $3,619.17 |
||
|
1
|
1
6E5-45300-25-8D Lower Unit Assemblyロワーユニツトアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ ＊１ |
6E5-45300-25-8D |
US $3,616.80 |
||
| replacements | |||||
|
1
|
1
6E5-45300-28-8D Lower Unit Assyロワーユニツトアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ ＊１ |
6E5-45300-28-8D |
US $3,631.22 |
||
|
1
|
1
6E5-45300-2A-8D Lower Unit Assyロワーユニツトアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ ＊１ |
6E5-45300-2A-8D |
US $3,709.71 |
||
|
2
|
2
6E5-45301-03-8D
Casing, Lower
ケーシング，ロワー; |
6E5-45301-03-8D |
— | ||
| replacement | |||||
|
2
|
2
6E5-45301-05-8D Casing, Lowerケーシング，ロワー; |
6E5-45301-05-8D |
from US $1,456.66 |
||
|
3
|
3
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2.36 |
||
|
4
|
4
93315-628U9-00 Bearing |
93315-628U9-00 |
from US $54.86 |
||
|
5
|
5
93332-000U7-00 Bearing |
93332-000U7-00 |
from US $77.34 |
||
|
6
|
6
6E5-45567-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
6E5-45567-01-40 |
US $7.93 |
||
| replacement | |||||
|
6
|
6
6E5-45567-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
6E5-45567-50-00 |
from US $7.93 |
||
|
6
|
6
6E5-45567-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
6E5-45567-01-50 |
US $7.93 |
||
| replacement | |||||
|
6
|
6
6E5-45567-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
6E5-45567-60-00 |
from US $7.93 |
||
|
6
|
6
6E5-45567-01-10 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
6E5-45567-01-10 |
US $7.93 |
||
| replacement | |||||
|
6
|
6
6E5-45567-01-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
6E5-45567-01-00 |
from US $7.93 |
||
|
6
|
6
6E5-45567-01-12 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
6E5-45567-01-12 |
US $7.93 |
||
| replacement | |||||
|
6
|
6
6E5-45567-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
6E5-45567-10-00 |
from US $3.38 |
||
|
6
|
6
6E5-45567-01-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
6E5-45567-01-15 |
US $7.93 |
||
| replacement | |||||
|
6
|
6
6E5-45567-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
6E5-45567-20-00 |
from US $4.04 |
||
|
6
|
6
6E5-45567-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
6E5-45567-01-18 |
US $7.93 |
||
| replacement | |||||
|
6
|
6
6E5-45567-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
6E5-45567-30-00 |
from US $3.38 |
||
|
6
|
6
6E5-45567-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
6E5-45567-01-30 |
US $7.93 |
||
| replacement | |||||
|
6
|
6
6E5-45567-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
6E5-45567-40-00 |
from US $7.93 |
||
|
7
|
7
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
7
|
7
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
8
|
8
688-45341-00-00
Plug, Drain
プラグ，ドレン; |
688-45341-00-00 |
— | ||
| replacement | |||||
|
8
|
8
688-45341-10-00 Plug, Drainプラグ，ドレン; |
688-45341-10-00 |
from US $7.21 |
||
|
9
|
9
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
9
|
9
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
10
|
10
6E5-45536-00-00 Sleeve, Drive Shaftスリーブ，ドライブシヤフト; |
6E5-45536-00-00 |
from US $23.58 |
||
|
11
|
11
6E5-45378-00-00 Nipple, Hoseニツプル，ホース; |
6E5-45378-00-00 |
from US $4.72 |
||
|
12
|
12
904-4507M-E8-00
Hose (L80)
ホース; ＵＲ ＬＯＮＧ |
904-4507M-E8-00 |
— | ||
| replacement | |||||
|
12
|
12
90445-07MF2-00 Hose (L250)ホース; ＵＲ ＬＯＮＧ |
90445-07MF2-00 |
from US $1.98 |
||
|
12
|
12
90445-07ME9-00 Hose (L120)ホース; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
90445-07ME9-00 |
US $1.98 |
||
| replacement | |||||
|
12
|
12
90445-07MF2-00 Hose (L250)ホース; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
90445-07MF2-00 |
from US $1.98 |
||
|
13
|
13
6E5-83558-10-00 End, Nippleエンド，ニツプル; |
6E5-83558-10-00 |
from US $6.23 |
||
|
14
|
14
6E5-45321-00-00 Plateプレート; |
6E5-45321-00-00 |
from US $25.02 |
||
|
15
|
15
93210-58144-00 O-Ring |
93210-58144-00 |
from US $4.43 |
||
| replacement | |||||
|
15
|
15
93210-58677-00 O-Ring |
93210-58677-00 |
from US $3.04 |
||
|
16
|
16
931-06090-14-00 Oil Sealオイルシール; |
931-06090-14-00 |
from US $3.13 |
||
|
17
|
17
90119-06M10-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M10-00 |
US $4.68 |
||
|
18
|
18
6E5-44150-01-00 Shift Cam Assemblyシフトカムアセンブリ; |
6E5-44150-01-00 |
US $549.69 |
||
| replacement | |||||
|
18
|
18
6E5-44150-02-00 Shift Cam Assyシフトカムアセンブリ; |
6E5-44150-02-00 |
from US $501.59 |
||
|
19
|
19
93430-08006-00 Circlipサークリツプ; |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
99001-08600-00 Circlipサークリツプ; |
99001-08600-00 |
from US $1.66 |
||
|
20
|
20
90501-11M10-00 Spring, Compression |
90501-11M10-00 |
from US $5.09 |
||
|
21
|
21
61A-45538-00-00 Spacer 1スペーサ １; |
61A-45538-00-00 |
from US $2.08 |
||
|
22
|
22
90201-22M01-00 Washer, Plateワツシヤ，プレート; |
90201-22M01-00 |
from US $2.50 |
||
|
23
|
23
90206-22M19-00 Washer, Waveワツシヤ，ウエイブ; |
90206-22M19-00 |
from US $4.72 |
||
|
24
|
24
61A-45527-00-00 Collar, Drive Shaftカラー，ドライブシヤフト; |
61A-45527-00-00 |
from US $8.32 |
||
|
25
|
25
61A-44311-01-00 Housing, Water Pumpハウジング，ウオータポンプ; |
61A-44311-01-00 |
from US $28.96 |
||
|
26
|
26
61A-44322-01-00 Insert, Cartridgeインサート，カートリツジ; |
61A-44322-01-00 |
US $53.77 |
||
| replacement | |||||
|
26
|
26
61A-44322-02-00 Insert, Cartridgeインサート，カートリツジ; |
61A-44322-02-00 |
from US $53.77 |
||
|
27
|
27
93210-86M38-00 O-RingＯ−リング; |
93210-86M38-00 |
from US $8.08 |
||
|
28
|
28
932-10371-60-00
O-Ring
|
932-10371-60-00 |
— | ||
| replacement | |||||
|
28
|
28
93210-37M67-00 O-Ring (6G8) |
93210-37M67-00 |
from US $2.77 |
||
|
29
|
29
6E5-44352-00-00 Impellerインペラ; |
6E5-44352-00-00 |
US $48.63 |
||
| replacement | |||||
|
29
|
29
6E5-44352-01-00 Impellerインペラ; |
6E5-44352-01-00 |
from US $42.23 |
||
|
30
|
30
90280-04M05-00 Key, Woodruffキー，ウツドラフ; |
90280-04M05-00 |
from US $10.78 |
||
|
31
|
31
6E5-44323-00-00 Outer Plate, Cartridgeアウタプレート，カートリツジ; |
6E5-44323-00-00 |
from US $22.10 |
||
|
32
|
32
6E5-44315-A0-00 Gasket, Water Pumpガスケツト，ウオータポンプ; |
6E5-44315-A0-00 |
from US $4.99 |
||
|
33
|
33
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
34
|
34
90119-08M14-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-08M14-00 |
from US $3.10 |
||
|
35
|
35
6E5-45331-00-94 Housing, Bearingハウジング，ベアリング; |
6E5-45331-00-94 |
US $102.51 |
||
| replacement | |||||
|
35
|
35
6E5-45331-00-9S Housing, Bearingハウジング，ベアリング; |
6E5-45331-00-9S |
from US $102.51 |
||
|
36
|
36
931-0128M-16-00 Oil Sealオイルシール; |
931-0128M-16-00 |
from US $7.42 |
||
|
37
|
37
93317-330U2-00 Bearing |
93317-330U2-00 |
from US $25.53 |
||
| replacement | |||||
|
37
|
37
93315-430V5-00 Bearing |
93315-430V5-00 |
from US $20.20 |
||
|
38
|
38
6E5-45587-01-10
Shim (T:0.10Mm)
．シム ; Ｔ：０１０ＭＭ; ＵＲ |
6E5-45587-01-10 |
— | ||
| replacement | |||||
|
38
|
38
6E5-45587-01-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
6E5-45587-01-00 |
from US $2.70 |
||
|
38
|
38
6E5-45587-01-12
Shim (T:0.12Mm)
．シム ; Ｔ：０１２ＭＭ; ＵＲ |
6E5-45587-01-12 |
— | ||
| replacement | |||||
|
38
|
38
6E5-45587-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
6E5-45587-10-00 |
from US $2.70 |
||
|
38
|
38
6E5-45587-01-15
Shim (T:0.15Mm)
．シム ; Ｔ：０１５ＭＭ; ＵＲ |
6E5-45587-01-15 |
— | ||
| replacement | |||||
|
38
|
38
6E5-45587-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
6E5-45587-20-00 |
from US $2.36 |
||
|
38
|
38
6E5-45587-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
6E5-45587-01-18 |
US $7.65 |
||
| replacement | |||||
|
38
|
38
6E5-45587-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
6E5-45587-30-00 |
from US $3.04 |
||
|
38
|
38
6E5-45587-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
6E5-45587-01-30 |
US $7.65 |
||
| replacement | |||||
|
38
|
38
6E5-45587-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
6E5-45587-40-00 |
from US $2.36 |
||
|
38
|
38
6E5-45587-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
6E5-45587-01-40 |
US $7.65 |
||
| replacement | |||||
|
38
|
38
6E5-45587-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
6E5-45587-50-00 |
from US $3.04 |
||
|
38
|
38
6E5-45587-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
6E5-45587-01-50 |
US $7.65 |
||
| replacement | |||||
|
38
|
38
6E5-45587-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
6E5-45587-60-00 |
from US $2.02 |
||
|
39
|
39
93341-930U0-00 Bearingベアリング，スラスト; |
93341-930U0-00 |
from US $130.15 |
||
| replacement | |||||
|
39
|
39
93341-930V2-00 Bearingベアリング，スラスト; |
93341-930V2-00 |
from US $128.27 |
||
|
40
|
40
932-1055M-14-00
O-Ring
|
932-1055M-14-00 |
— | ||
| replacement | |||||
|
40
|
40
932-10545-34-00 O-Ring |
932-10545-34-00 |
from US $2.77 |
||
|
41
|
41
6E5-45344-00-00 Cover, Oil Sealカバー，オイルシール; |
6E5-45344-00-00 |
from US $7.42 |
||
|
42
|
42
97095-08025-00 Boltボルト; |
97095-08025-00 |
from US $3.38 |
||
| replacement | |||||
|
42
|
42
98980-08025-00 Screw, Bind (98902-08025-00)ボルト; |
98980-08025-00 |
from US $5.68 |
||
|
43
|
43
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
43
|
43
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
44
|
44
6E5-45501-01-00 Drive Shaft Compドライブシヤフトコンプリート; ＵＲ ＬＯＮＧ |
6E5-45501-01-00 |
from US $928.42 |
||
|
44
|
44
6E5-45501-21-00 Drive Shaft Compドライブシヤフトコンプリート; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
6E5-45501-21-00 |
from US $716.32 |
||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
ドライブシヤフトコンプリート; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
999-99999-99-00 |
— | ||
|
45
|
45
6E5-45551-02-00 Pinion (13T) |
6E5-45551-02-00 |
from US $151.14 |
||
|
46
|
46
90170-16M01-00 Nut |
90170-16M01-00 |
from US $5.74 |
||
|
47
|
47
6E5-45560-01-00 Gear 1 (26T)ギヤ; |
6E5-45560-01-00 |
from US $226.54 |
||
|
48
|
48
933-15425-U7-00 Bearing．ベアリング; |
933-15425-U7-00 |
from US $22.39 |
||
|
49
|
49
6E5-45611-01-00 Shaft, Propellerシヤフト，プロペラ; |
6E5-45611-01-00 |
from US $313.62 |
||
|
50
|
50
6E5-45641-01-00 Shifterシフター; |
6E5-45641-01-00 |
US $133.32 |
||
| replacement | |||||
|
50
|
50
6E5-45641-03-00 Shifterシフター; |
6E5-45641-03-00 |
from US $133.32 |
||
|
51
|
51
6E5-45634-01-00 Slide, Shiftスライド，シフト; |
6E5-45634-01-00 |
from US $41.57 |
||
|
52
|
52
90501-16M37-00 Spring, Compression |
90501-16M37-00 |
from US $2.02 |
||
|
53
|
53
93507-32009-00 Ball 7-32ボール; |
93507-32009-00 |
from US $1.70 |
||
| replacement | |||||
|
53
|
53
93507-32031-00 Ball 7-32ボール; |
93507-32031-00 |
from US $1.63 |
||
|
54
|
54
93511-32017-00 Ballボール; |
93511-32017-00 |
from US $1.66 |
||
| replacement | |||||
|
54
|
54
93511-32027-00 Ballボール; |
93511-32027-00 |
from US $1.66 |
||
|
55
|
55
93503-16003-00 Ballボール; |
93503-16003-00 |
from US $1.39 |
||
|
56
|
56
90250-08M07-00 Pin, Straight |
90250-08M07-00 |
from US $4.39 |
||
|
57
|
57
6E5-45631-01-00 Clutch, Dogクラツチ，ドツグ; |
6E5-45631-01-00 |
US $218.29 |
||
|
58
|
58
6E5-45633-01-00 Ring, Cross Pinリング，クロスピン; |
6E5-45633-01-00 |
from US $10.78 |
||
|
59
|
59
6E5-45332-00-94
Housing, Bearing
ハウジング，ベアリング; |
6E5-45332-00-94 |
— | ||
| replacement | |||||
|
59
|
59
6E5-45332-00-CA Housing, Bearingハウジング，ベアリング; |
6E5-45332-00-CA |
from US $143.40 |
||
|
60
|
60
93306-208U0-00 Bearing |
93306-208U0-00 |
from US $31.26 |
||
|
61
|
61
6E5-45571-01-00 Gear 2 (26T)ギヤ; |
6E5-45571-01-00 |
from US $166.30 |
||
|
62
|
62
6E5-45576-00-00 Washer, Thrust 2ワツシヤ，スラスト; |
6E5-45576-00-00 |
from US $22.39 |
||
|
63
|
63
933-15430-U8-00
Bearing
|
933-15430-U8-00 |
— | ||
| replacement | |||||
|
63
|
63
93315-43061-00 Bearing |
93315-43061-00 |
from US $30.64 |
||
|
64
|
64
931-0130M-17-00 Oil Sealオイルシール; |
931-0130M-17-00 |
from US $6.74 |
||
|
65
|
65
932-1086M-39-00 O-RingＯ−リング; |
932-1086M-39-00 |
from US $7.62 |
||
|
66
|
66
6L6-45577-00-10 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
6L6-45577-00-10 |
US $6.38 |
||
| replacements | |||||
|
66
|
66
999-99999-99-00
Not Available
．シム ; Ｔ：０１０ＭＭ; ＵＲ |
999-99999-99-00 |
— | ||
|
66
|
66
6L6-45577-00-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
6L6-45577-00-00 |
from US $6.38 |
||
|
66
|
66
6L6-45577-00-12 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
6L6-45577-00-12 |
US $6.38 |
||
| replacement | |||||
|
66
|
66
6L6-45577-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
6L6-45577-10-00 |
from US $3.38 |
||
|
66
|
66
6L6-45577-00-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
6L6-45577-00-15 |
US $6.38 |
||
| replacement | |||||
|
66
|
66
6L6-45577-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
6L6-45577-20-00 |
from US $6.80 |
||
|
66
|
66
6L6-45577-00-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
6L6-45577-00-18 |
US $6.38 |
||
| replacement | |||||
|
66
|
66
6L6-45577-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
6L6-45577-30-00 |
from US $6.80 |
||
|
66
|
66
6L6-45577-00-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
6L6-45577-00-30 |
US $6.38 |
||
| replacement | |||||
|
66
|
66
6L6-45577-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
6L6-45577-40-00 |
from US $6.38 |
||
|
66
|
66
6L6-45577-00-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
6L6-45577-00-40 |
US $6.38 |
||
| replacement | |||||
|
66
|
66
6L6-45577-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
6L6-45577-50-00 |
from US $6.38 |
||
|
66
|
66
6L6-45577-00-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
6L6-45577-00-50 |
US $6.38 |
||
| replacement | |||||
|
66
|
66
6L6-45577-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
6L6-45577-60-00 |
from US $6.38 |
||
|
67
|
67
90201-30M92-00 Washer, Plateワツシヤ，プレート; |
90201-30M92-00 |
from US $4.53 |
||
|
68
|
68
902-82040-10-00 Key, Straightキー，ストレイト; |
902-82040-10-00 |
from US $3.60 |
||
|
69
|
69
688-45383-02-00 Washer, Clawワツシヤ，クロー; |
688-45383-02-00 |
from US $11.12 |
||
|
70
|
70
688-45384-00-00 Nut |
688-45384-00-00 |
US $40.77 |
||
| replacement | |||||
|
70
|
70
688-45384-02-00 Nut |
688-45384-02-00 |
from US $20.20 |
||
