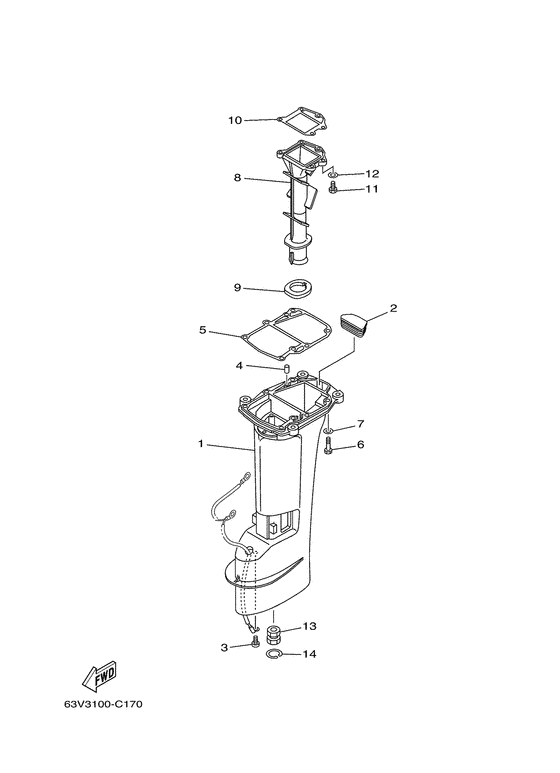

Upper casing Diagram Yamaha 13.5 MHS/L
- Year
- 2004
- Model
- 13.5A
- Model code
- 66S
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 13.5
- Sales region
- Europe (General) (370 / 380)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
63V-45111-05-4D Casing, UpperS |
63V-45111-05-4D |
US $491.04 |
||
| replacement | |||||
|
01
|
01
63V-45111-05-8D CASING, UPPERS |
63V-45111-05-8D |
from US $491.04 |
||
|
01
|
01
63V-45111-15-4D Casing, UpperL |
63V-45111-15-4D |
US $466.56 |
||
|
02
|
02
63V-45126-01-00 Plate, Seal Damper |
63V-45126-01-00 |
from US $10.77 |
||
|
03
|
03
90157-06M06-00 Screw, Pan Head |
90157-06M06-00 |
from US $1.98 |
||
|
04
|
04
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
05
|
05
63V-45113-A1-00 Gasket, Upper Casing |
63V-45113-A1-00 |
from US $14.70 |
||
|
06
|
06
97095-08030-00 Bolt |
97095-08030-00 |
US $2.69 |
||
| replacement | |||||
|
06
|
06
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
07
|
07
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
07
|
07
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
08
|
08
65F-41131-00-5B Manifold, Ext. 1 |
65F-41131-00-5B |
US $107.21 |
||
| replacement | |||||
|
08
|
08
65F-41131-00-CA Manifold, Ext. 1 |
65F-41131-00-CA |
from US $107.21 |
||
|
09
|
09
63V-41135-00-00 Gasket, Exhaust Manifold |
63V-41135-00-00 |
US $10.20 |
||
| replacement | |||||
|
09
|
09
63V-41135-01-00 GASKET, EXHAUST MANIFOLD |
63V-41135-01-00 |
from US $10.20 |
||
|
10
|
10
63V-41133-A1-00 Gasket, Exhaust Manifold 1 |
63V-41133-A1-00 |
from US $10.30 |
||
|
11
|
11
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
12
|
12
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
682-45318-00-00 Bushing, Drive ShaftL |
682-45318-00-00 |
from US $37.44 |
||
|
14
|
14
93420-30042-00 CirclipL |
93420-30042-00 |
from US $2.29 |
||
