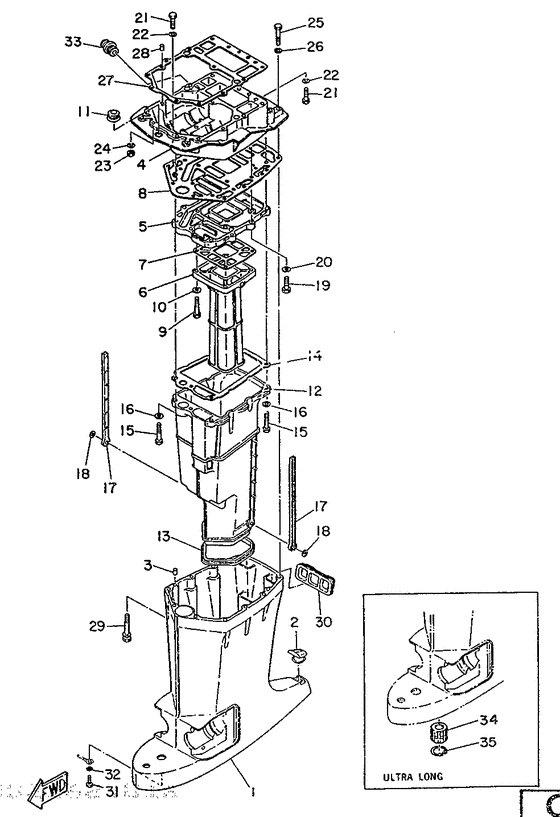

Upper casing Diagram Yamaha 140 ETOL/XL
- Year
- 1987
- Model
- 140A
- Model code
- 6F3
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 140
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-45111-01-EJ
Casing, Upper
Ur |
6E5-45111-01-EJ |
— | ||
| replacement | |||||
|
01
|
01
6E5-45111-02-EJ
CASING,UPPER
Ur |
6E5-45111-02-EJ |
— | ||
|
01
|
01
6E5-45111-20-EJ
Casing, Upper
Ur |
6E5-45111-20-EJ |
— | ||
| replacements | |||||
|
01
|
01
6E5-45111-23-EJ
Casting, Upper
Ur |
6E5-45111-23-EJ |
— | ||
|
01
|
01
6E5-45111-21-EJ
Casing, Upper
Ur |
6E5-45111-21-EJ |
— | ||
|
02
|
02
6E5-45155-00-00 Cap |
6E5-45155-00-00 |
from US $16.01 |
||
|
03
|
03
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
04
|
04
6E5-41137-02-94 Guide, ExhaustUr |
6E5-41137-02-94 |
US $486.95 |
||
| replacement | |||||
|
04
|
04
6E5-41137-03-CA ROD,CHOKE 1Ur |
6E5-41137-03-CA |
from US $320.96 |
||
|
04
|
04
6G5-41137-00-94 Guide, ExhaustUr |
6G5-41137-00-94 |
US $504 |
||
| replacements | |||||
|
04
|
04
6G5-41137-02-CA Guide, ExhaustUr |
6G5-41137-02-CA |
from US $409.20 |
||
|
04
|
04
6G5-41137-KT-94
element
Ur |
6G5-41137-KT-94 |
— | ||
|
05
|
05
6E5-41131-00-9M Manifold, Ext. 1Ur |
6E5-41131-00-9M |
US $164.41 |
||
| replacement | |||||
|
05
|
05
6E5-41131-01-CA Manifold, Ext. 1Ur |
6E5-41131-01-CA |
from US $53.57 |
||
|
05
|
05
6G5-41131-00-9M Manifold, Ext. 1Ur |
6G5-41131-00-9M |
US $96.02 |
||
| replacement | |||||
|
05
|
05
6G5-41131-01-CA Manifold, Ext. 1Ur |
6G5-41131-01-CA |
from US $96.02 |
||
|
06
|
06
6E5-41132-00-9M Manifold, ExhaustManifold, exhaust 2 (115a model) Ur |
6E5-41132-00-9M |
US $160.27 |
||
| replacements | |||||
|
06
|
06
6E5-41132-00-CA Manifold, ExhaustUr |
6E5-41132-00-CA |
from US $89.30 |
||
|
06
|
06
6E5-41132-00-5B Exhaust Manifold 2 (6E5-41132-00-9M)Ur |
6E5-41132-00-5B |
US $160.27 |
||
|
06
|
06
6F3-41132-00-9M
Manifold, Exhaust
Ur |
6F3-41132-00-9M |
— | ||
| replacement | |||||
|
06
|
06
6F3-41132-00-5B
Manifold, Exhaust
Ur |
6F3-41132-00-5B |
— | ||
|
07
|
07
6E5-41134-00-00 Gasket, Exh.mani.2 Exhaust Manifold 2Gasket, exhaust manifold (115a model) Ur |
6E5-41134-00-00 |
US $12.75 |
||
| replacement | |||||
|
07
|
07
6E5-41134-B0-00 Gasket,exhaust ManifoldUr |
6E5-41134-B0-00 |
from US $5.74 |
||
|
07
|
07
6G5-41134-00-00 Gasket, Exhaust ManifoldUr |
6G5-41134-00-00 |
US $9.35 |
||
| replacement | |||||
|
07
|
07
6G5-41134-A1-00 Gasket, Exhaust ManifoldUr |
6G5-41134-A1-00 |
from US $9.35 |
||
|
08
|
08
6E5-45114-00-00 Gasket, Upper CasngGasket, upper casing 2 (115a model) Ur |
6E5-45114-00-00 |
US $41.45 |
||
| replacement | |||||
|
08
|
08
6E5-45114-A0-00 Gasket, Upper CasingUr |
6E5-45114-A0-00 |
from US $29.96 |
||
|
08
|
08
6G5-45114-00-00 Gasket, Upper CasingUr |
6G5-45114-00-00 |
US $45.45 |
||
| replacement | |||||
|
08
|
08
6G5-45114-A1-00 Gasket, Upper CasingUr |
6G5-45114-A1-00 |
from US $30.89 |
||
|
09
|
09
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
09
|
09
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
09
|
09
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
10
|
10
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
11
|
11
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
12
|
12
6E5-14711-00-9M Muffler 1 |
6E5-14711-00-9M |
US $262.50 |
||
| replacement | |||||
|
12
|
12
6E5-14711-01-CA Muffler 1 |
6E5-14711-01-CA |
from US $262.50 |
||
|
13
|
13
6E5-45123-00-00 Gasket, Muffler |
6E5-45123-00-00 |
from US $20.12 |
||
|
14
|
14
6E5-41135-00-00 Gasket, Exhaust Manifold |
6E5-41135-00-00 |
US $15.58 |
||
| replacement | |||||
|
14
|
14
6E5-41135-A0-00 Gasket, Exhaust Manifold |
6E5-41135-A0-00 |
from US $7.42 |
||
|
15
|
15
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
15
|
15
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
15
|
15
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
16
|
16
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
17
|
17
6E5-14737-00-00 Damper, Muffler |
6E5-14737-00-00 |
from US $19.27 |
||
|
18
|
18
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
19
|
19
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
19
|
19
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
20
|
20
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
21
|
21
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
21
|
21
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
23
|
23
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
25
|
25
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
25
|
25
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
25
|
25
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
27
|
27
6E5-45113-02-00 Gasket, Upper CasingGasket, upper casing 1 (115a model) Ur |
6E5-45113-02-00 |
US $62.31 |
||
| replacement | |||||
|
27
|
27
6E5-45113-A0-00 Gasket, Upper CasinUr |
6E5-45113-A0-00 |
from US $62.31 |
||
|
27
|
27
6G5-45113-00-00 Gasket, Upper CasingUr |
6G5-45113-00-00 |
US $70.03 |
||
| replacement | |||||
|
27
|
27
6G5-45113-A2-00 Gasket, Upper CasingUr |
6G5-45113-A2-00 |
from US $49.01 |
||
|
28
|
28
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
29
|
29
90119-08M04-00 Bolt, W/washer |
90119-08M04-00 |
US $18.56 |
||
| replacements | |||||
|
29
|
29
90119-08M78-00 Bolt, With Washer |
90119-08M78-00 |
US $18.56 |
||
|
29
|
29
90119-08078-00 Bolt, With Washer |
90119-08078-00 |
from US $18.56 |
||
|
30
|
30
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
30
|
30
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
33
|
33
6G5-12581-00-00 Joint, Hose 1 |
6G5-12581-00-00 |
from US $6.38 |
||
|
34
|
34
6E5-45318-00-00 Bushing, Drive Shaft |
6E5-45318-00-00 |
from US $62.04 |
||
