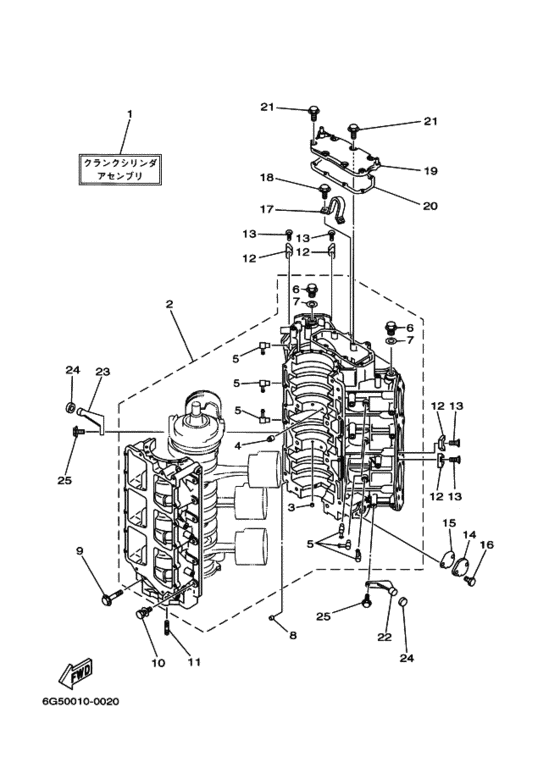

ｼﾘﾝﾀﾞ. ｸﾗﾝｸｹ-ｽ 1 Diagram Yamaha 150 ETOL/XL
- Year
- 2000
- Model
- 150A
- Model code
- 6G4
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64C-W0090-01-1S Crank Cylinder Assy参照; ＵＲ １５０Ａ ＊１ |
64C-W0090-01-1S |
US $11,642.40 |
||
| replacements | |||||
|
1
|
1
64C-W0090-04-1S element参照; ＵＲ １５０Ａ ＊１ |
64C-W0090-04-1S |
US $11,771.13 |
||
|
1
|
1
64C-W0090-07-1S Crank Cylinder Assy参照; ＵＲ １５０Ａ ＊１ |
64C-W0090-07-1S |
US $10,894.32 |
||
|
1
|
1
64D-W0090-01-1S Crank Cylinder Assy参照; ＵＲ １７５Ａ ＊１ |
64D-W0090-01-1S |
US $11,876.54 |
||
|
1
|
1
64E-W0090-02-1S
Crank Cylinder Assy
参照; ＵＲ ２００Ａ ＊１ |
64E-W0090-02-1S |
— | ||
|
2
|
2
64C-15100-21-1S
Crankcase Assy
ＵＲ １５０Ａ |
64C-15100-21-1S |
— | ||
| replacement | |||||
|
2
|
2
999-99042-62-00 Crankcase AssyＵＲ １５０Ａ |
999-99042-62-00 |
from US $5,071.70 |
||
|
2
|
2
64D-15100-21-1S
Crankcase Assy
ＵＲ １７５Ａ |
64D-15100-21-1S |
— | ||
|
2
|
2
64E-15100-21-1S Crankcase AssyＵＲ ２００Ａ |
64E-15100-21-1S |
US $5,240.40 |
||
|
3
|
3
624-11379-00-00 Valve, Check．バルブ，チエツク; |
624-11379-00-00 |
from US $3.72 |
||
|
4
|
4
663-11518-01-00 Lock, Bearing．ロツク，ベアリング; |
663-11518-01-00 |
from US $6.38 |
||
|
5
|
5
646-11370-00-00
Check Valve Assy
．チエツクバルブアセンブリ; |
646-11370-00-00 |
— | ||
| replacement | |||||
|
5
|
5
646-11370-01-00 Check Valve Assy．チエツクバルブアセンブリ; |
646-11370-01-00 |
from US $10.44 |
||
|
6
|
6
903-4014M-00-00
Plug, Straight Screw
．プラグ，ストレイトスクリユ; |
903-4014M-00-00 |
— | ||
| replacement | |||||
|
6
|
6
90340-14M06-00 Plug, Straight Screw．プラグ，ストレイトスクリユ; |
90340-14M06-00 |
from US $6.51 |
||
|
7
|
7
904-30141-15-00 Gasket．ガスケツト; |
904-30141-15-00 |
from US $2.08 |
||
|
8
|
8
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.84 |
||
|
9
|
9
90105-10M20-00 Bolt, Flange |
90105-10M20-00 |
from US $7.51 |
||
|
10
|
10
90119-08M94-00 Bolt, With Washer |
90119-08M94-00 |
from US $3.83 |
||
|
11
|
11
90116-08M45-00 Bolt, Stud |
90116-08M45-00 |
US $10.48 |
||
| replacement | |||||
|
11
|
11
90116-08M14-00 Bolt, Stud |
90116-08M14-00 |
from US $8.01 |
||
|
12
|
12
6E5-11325-00-00 Anode |
6E5-11325-00-00 |
from US $5.40 |
||
|
13
|
13
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
13
|
13
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.70 |
||
|
14
|
14
6R3-1131M-01-00 Cover |
6R3-1131M-01-00 |
from US $6.74 |
||
|
15
|
15
6R3-11397-A0-00
Gasket
|
6R3-11397-A0-00 |
— | ||
|
16
|
16
97013-06016-00 Boltボルト; |
97013-06016-00 |
from US $1.39 |
||
| replacements | |||||
|
16
|
16
97095-06016-00 Boltボルト; |
97095-06016-00 |
US $1.52 |
||
|
16
|
16
97014-06016-00 Bolt, Hexagonボルト; |
97014-06016-00 |
from US $1.39 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
6E5-11119-01-00 Hanger, Engine |
6E5-11119-01-00 |
from US $14.31 |
||
|
18
|
18
90119-08MA3-00 Bolt, With Washer |
90119-08MA3-00 |
from US $2.98 |
||
|
19
|
19
6E5-11371-00-1S Cover |
6E5-11371-00-1S |
from US $22.56 |
||
|
20
|
20
6E5-11381-A2-00 Gasket 1 |
6E5-11381-A2-00 |
from US $8.08 |
||
|
21
|
21
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $2.22 |
||
|
22
|
22
6E5-42761-00-1S Stopper |
6E5-42761-00-1S |
from US $16.01 |
||
|
23
|
23
6E5-42762-00-1S Stopper |
6E5-42762-00-1S |
from US $14.47 |
||
|
24
|
24
663-44533-00-00 Damper, Upper Mount Rubberダンパ，アツパ−マウントラバ−; |
663-44533-00-00 |
from US $5.38 |
||
|
25
|
25
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $2.22 |
||
