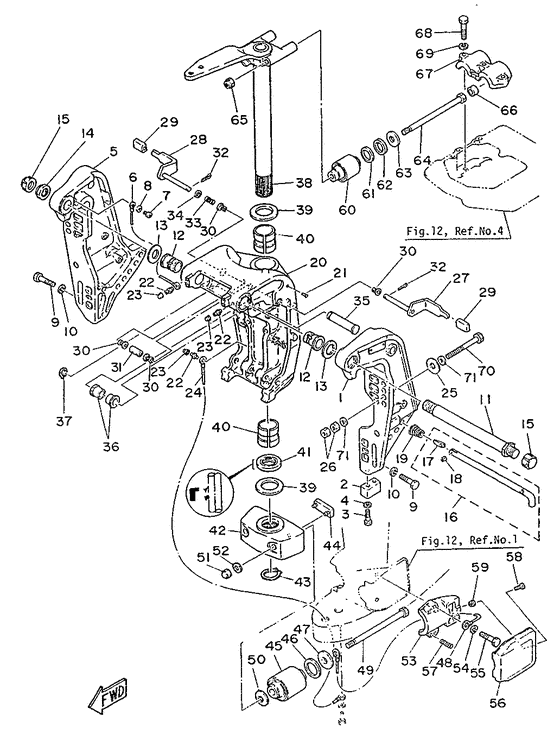

Bracket Diagram Yamaha 175 ETOL/XL
- Year
- 1996
- Model
- 175A
- Model code
- 6G5
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 175
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-43111-01-EJ
Bracket, Clamp
|
6E5-43111-01-EJ |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6E5-45251-00-00 Anode |
6E5-45251-00-00 |
from US $9.59 |
||
|
03
|
03
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
03
|
03
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
05
|
05
6E5-43112-01-EJ
Bracket, Clamp
|
6E5-43112-01-EJ |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
07
|
07
97890-06012-00 Screw, Pan Head |
97890-06012-00 |
US $1.56 |
||
| replacement | |||||
|
07
|
07
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
09
|
09
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
09
|
09
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
10
|
10
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
11
|
11
6E5-43131-00-00 Bolt, Clamp Bracket |
6E5-43131-00-00 |
US $105.83 |
||
| replacement | |||||
|
11
|
11
6R3-43131-00-00 Bolt, Clamp Bracket |
6R3-43131-00-00 |
from US $111.07 |
||
|
12
|
12
90386-25M31-00 Bush |
90386-25M31-00 |
from US $4.04 |
||
|
13
|
13
90201-26M59-00 Washer, Plate |
90201-26M59-00 |
from US $3.04 |
||
|
14
|
14
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
14
|
14
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
15
|
15
663-43145-00-00 Cap, Clamp Bracket |
663-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
15
|
15
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
16
|
16
6E5-43160-01-00
Tilt Rod Assy
|
6E5-43160-01-00 |
— | ||
|
17
|
17
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
18
|
18
91690-30014-00 Pin, Spring |
91690-30014-00 |
from US $1.50 |
||
|
19
|
19
90502-20M03-00 Spring, Conical |
90502-20M03-00 |
from US $6.80 |
||
|
20
|
20
6E5-43311-01-EJ
Bracket, Swivel
U |
6E5-43311-01-EJ |
— | ||
| replacement | |||||
|
20
|
20
6E5-43311-02-EJ
Bracket, Swivel
U |
6E5-43311-02-EJ |
— | ||
|
20
|
20
6E5-43311-21-EJ
Bracket, Swivel
Ur |
6E5-43311-21-EJ |
— | ||
| replacement | |||||
|
20
|
20
6E5-43311-22-EJ
Bracket, Swivel
Ur |
6E5-43311-22-EJ |
— | ||
|
21
|
21
90269-03010-00 Rivet |
90269-03010-00 |
from US $3.40 |
||
|
22
|
22
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
22
|
22
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
23
|
23
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
24
|
24
6E5-82147-20-00 Wire, Lead 5Ur |
6E5-82147-20-00 |
US $16.43 |
||
| replacement | |||||
|
24
|
24
61A-82147-30-00 Wire, Lead 4Ur |
61A-82147-30-00 |
from US $16.43 |
||
|
24
|
24
6E5-82147-00-00 Wire, Lead 5Ur |
6E5-82147-00-00 |
from US $13.14 |
||
|
25
|
25
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
26
|
26
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
|
27
|
27
6E5-43181-00-00
Lever, Tilt Stop
|
6E5-43181-00-00 |
— | ||
| replacement | |||||
|
27
|
27
6E5-43181-01-00
Lever, Tilt Stop (6E5-43181-00-00)
|
6E5-43181-01-00 |
— | ||
|
28
|
28
6E5-43185-00-00
Lever, Tilt Stop
|
6E5-43185-00-00 |
— | ||
| replacement | |||||
|
28
|
28
6E5-43185-01-00
Lever, Tilt Stop (6E5-43185-00-00)
|
6E5-43185-01-00 |
— | ||
|
29
|
29
663-43318-00-00 Cover |
663-43318-00-00 |
from US $5.28 |
||
|
30
|
30
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
31
|
31
90387-10M38-00 Collar |
90387-10M38-00 |
from US $9.15 |
||
|
32
|
32
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
33
|
33
90501-10M21-00 Spring, Compression |
90501-10M21-00 |
US $2.41 |
||
|
34
|
34
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
35
|
35
6E5-43126-00-00 Pin, Upper Shock Mount |
6E5-43126-00-00 |
US $23.94 |
||
| replacement | |||||
|
35
|
35
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
36
|
36
90386-18M44-00 Bush |
90386-18M44-00 |
from US $4.86 |
||
|
37
|
37
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
37
|
37
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.26 |
||
|
38
|
38
6E5-42510-20-EJ
Steering Bracket Assy
Ur |
6E5-42510-20-EJ |
— | ||
|
38
|
38
6E5-42510-00-EJ
Steering Bracket Assy
Ur |
6E5-42510-00-EJ |
— | ||
| replacement | |||||
|
38
|
38
6E5-42510-01-EJ
Steering Bracket Assy
Ur |
6E5-42510-01-EJ |
— | ||
|
39
|
39
90201-38M60-00 Washer, Plate |
90201-38M60-00 |
from US $5.97 |
||
|
40
|
40
90386-38M32-00 Bush |
90386-38M32-00 |
US $29.96 |
||
| replacement | |||||
|
40
|
40
90386-38M89-00 Bush |
90386-38M89-00 |
from US $29.96 |
||
|
41
|
41
93109-38M02-00 Oil Seal |
93109-38M02-00 |
from US $6.48 |
||
|
42
|
42
6E5-44551-00-EJ
Housing, Lower Mount Rubber
|
6E5-44551-00-EJ |
— | ||
| replacement | |||||
|
42
|
42
999-99018-72-00
Housing Lower M0Unt (6E5)
|
999-99018-72-00 |
— | ||
|
43
|
43
93410-37M04-00 Circlip |
93410-37M04-00 |
from US $4.04 |
||
|
44
|
44
6E5-44575-00-00 Damper, Lower Mount Rubber |
6E5-44575-00-00 |
US $14.03 |
||
|
45
|
45
6G5-44555-00-94 Mount Damper, Lower Side |
6G5-44555-00-94 |
US $161.65 |
||
| replacement | |||||
|
45
|
45
6G5-44555-00-00 Mount Damper, Lower Side |
6G5-44555-00-00 |
from US $156.44 |
||
|
46
|
46
90202-32M19-00 Washer, Plate |
90202-32M19-00 |
from US $5.40 |
||
|
47
|
47
90201-16M55-00 Washer, Plate |
90201-16M55-00 |
from US $5.40 |
||
|
48
|
48
6E5-82149-00-00 Wire, Lead 3 |
6E5-82149-00-00 |
from US $7.76 |
||
|
49
|
49
90109-14M10-00 Bolt |
90109-14M10-00 |
US $28.76 |
||
| replacement | |||||
|
49
|
49
90101-14003-00 Bolt |
90101-14003-00 |
from US $24.80 |
||
|
50
|
50
90201-15M58-00 Washer, Plate |
90201-15M58-00 |
from US $5.06 |
||
|
51
|
51
95380-14800-00 Nut |
95380-14800-00 |
from US $10.44 |
||
|
52
|
52
92990-14600-00 Washer |
92990-14600-00 |
from US $6.06 |
||
|
53
|
53
6E5-44552-00-EJ Housing, Lower Mount Rubber |
6E5-44552-00-EJ |
US $84.42 |
||
| replacement | |||||
|
53
|
53
6E5-44552-01-CA Housing, Lower Mount Rubber |
6E5-44552-01-CA |
from US $84.42 |
||
|
54
|
54
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
55
|
55
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
55
|
55
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
55
|
55
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
56
|
56
6E5-44553-00-EJ
Cover, Lower Mount
|
6E5-44553-00-EJ |
— | ||
| replacement | |||||
|
56
|
56
6E5-44553-01-EJ
Cover, Lower Mount
|
6E5-44553-01-EJ |
— | ||
|
57
|
57
90501-16M28-00 Spring, Compression |
90501-16M28-00 |
from US $4.96 |
||
|
58
|
58
92380-06015-00 Screw, Cylinder Head |
92380-06015-00 |
US $2.55 |
||
| replacement | |||||
|
58
|
58
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
59
|
59
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
60
|
60
6G5-44514-00-94 Mount Damper, Upper Side |
6G5-44514-00-94 |
US $125.31 |
||
| replacement | |||||
|
60
|
60
6G5-44514-00-00 Mount Damper, Upper Side |
6G5-44514-00-00 |
from US $111.42 |
||
|
61
|
61
90201-26M57-00 Washer, Plate |
90201-26M57-00 |
from US $6.09 |
||
|
62
|
62
90202-26M18-00 Washer, Plate |
90202-26M18-00 |
from US $6.09 |
||
|
63
|
63
90201-14M56-00 Washer, Plate |
90201-14M56-00 |
from US $7.37 |
||
|
64
|
64
90109-12M09-00 Bolt |
90109-12M09-00 |
US $19.84 |
||
| replacement | |||||
|
64
|
64
90109-12007-00 Bolt |
90109-12007-00 |
from US $19.84 |
||
|
65
|
65
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
66
|
66
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
66
|
66
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
67
|
67
6E5-44511-00-EJ Cover, Upper Mount |
6E5-44511-00-EJ |
US $82.07 |
||
| replacement | |||||
|
67
|
67
6E5-44511-00-00 Cover, Upper Mount |
6E5-44511-00-00 |
from US $56.81 |
||
|
68
|
68
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
68
|
68
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
68
|
68
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
69
|
69
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
70
|
70
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
71
|
71
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
