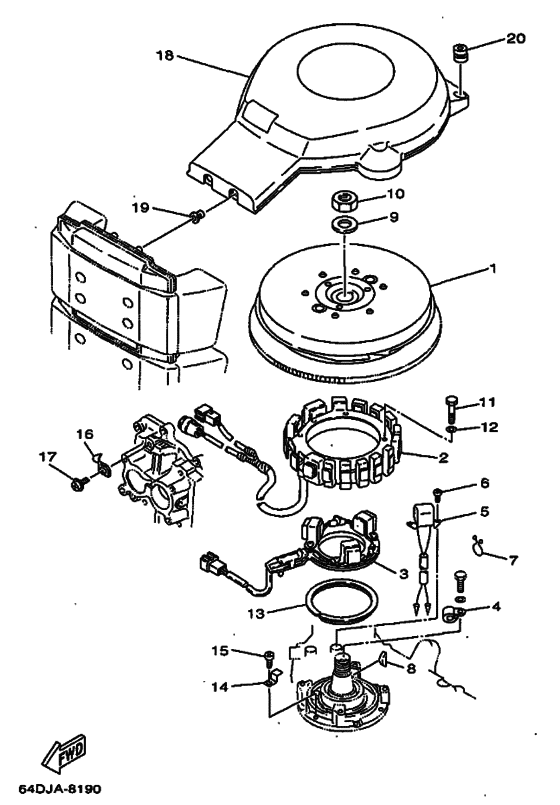

Generator Diagram Yamaha 175 ETOL/XL
- Year
- 1999
- Model
- 175D
- Model code
- 64D
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 175
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64D-85550-02-00 Rotor Assy |
64D-85550-02-00 |
from US $1,584 |
||
|
2
|
2
6R3-85510-00-00 Stator Assyステ−タアセンブリ; |
6R3-85510-00-00 |
from US $843.48 |
||
|
3
|
3
64D-85580-00-00 Coil, Pulserコイル，パルサ; |
64D-85580-00-00 |
from US $416.87 |
||
|
4
|
4
90465-08M07-00 Clamp |
90465-08M07-00 |
US $3.40 |
||
| replacement | |||||
|
4
|
4
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
5
|
5
6R5-85895-01-00 Crank Position Sensorクランクポジシヨンセンダ; |
6R5-85895-01-00 |
from US $160.27 |
||
|
6
|
6
97880-05012-00 Screw, Pan Head |
97880-05012-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
7
|
7
90464-15M11-00 Clamp |
90464-15M11-00 |
US $1.70 |
||
| replacement | |||||
|
7
|
7
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
8
|
8
902-80050-15-00
Key, Woodruff
|
902-80050-15-00 |
— | ||
| replacement | |||||
|
8
|
8
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
9
|
9
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
10
|
10
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
11
|
11
97013-06070-00 Boltボルト; |
97013-06070-00 |
from US $3.64 |
||
|
12
|
12
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
688-41611-00-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
688-41611-00-00 |
from US $11.90 |
||
|
14
|
14
688-41612-00-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
688-41612-00-00 |
from US $5.67 |
||
|
15
|
15
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
16
|
16
6E5-81332-00-00 Plate, Timing |
6E5-81332-00-00 |
from US $6.23 |
||
|
17
|
17
97985-06210-00 Screw Pan Head W/w (6R3)スクリユ，ウイズワツシヤ; |
97985-06210-00 |
from US $1.98 |
||
| replacement | |||||
|
17
|
17
985-80060-10-00 Screw, Pan Head (92503-06010-00スクリユ，ウイズワツシヤ; |
985-80060-10-00 |
from US $1.42 |
||
|
18
|
18
64D-81337-10-00 Cover, Flywheel |
64D-81337-10-00 |
from US $64.69 |
||
|
19
|
19
6G5-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
6G5-82317-00-00 |
from US $4.11 |
||
|
20
|
20
663-82317-01-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
663-82317-01-00 |
US $5.28 |
||
| replacement | |||||
|
20
|
20
663-82317-02-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
663-82317-02-00 |
from US $5.06 |
||
