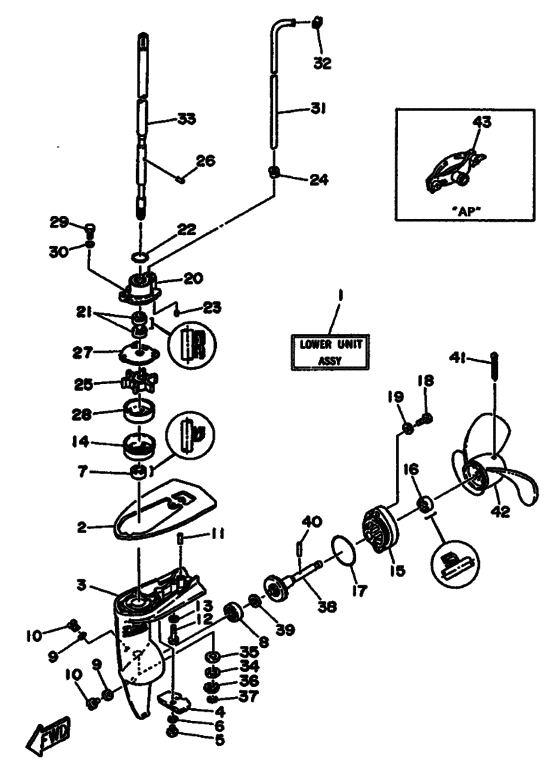

Lower casing & drive Diagram Yamaha 2 MHS
- Year
- 1996
- Model
- 2B
- Model code
- 6A1
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A1-45300-03-4D Lower Unit Assy |
6A1-45300-03-4D |
US $712.80 |
||
|
2
|
2
6A1-45181-00-4D Plate |
6A1-45181-00-4D |
US $41.86 |
||
| replacement | |||||
|
2
|
2
6GD-G5181-00-8D Plate |
6GD-G5181-00-8D |
US $56.81 |
||
|
3
|
3
6A1-45311-02-4D Casing, Lower |
6A1-45311-02-4D |
US $240.40 |
||
| replacement | |||||
|
3
|
3
6GD-G5311-00-8D Casing, Lower |
6GD-G5311-00-8D |
US $389 |
||
|
4
|
4
6L5-45251-02-00 Anode |
6L5-45251-02-00 |
US $12.47 |
||
| replacement | |||||
|
4
|
4
6L5-45251-03-00 Anode |
6L5-45251-03-00 |
from US $9.49 |
||
|
5
|
5
95895-06012-00 Bolt, Flange |
95895-06012-00 |
US $1.28 |
||
|
10
|
10
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
10
|
10
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.33 |
||
|
11
|
11
93605-18M04-00 Pin, Dowel |
93605-18M04-00 |
from US $2.41 |
||
|
21
|
21
93101-11M44-00 Oil Seal |
93101-11M44-00 |
from US $7.79 |
||
|
22
|
22
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
23
|
23
93604-09068-00 Pin, Dowel |
93604-09068-00 |
from US $3.12 |
||
|
24
|
24
646-44366-01-00 Damper, Water Seal 2 |
646-44366-01-00 |
US $3.26 |
||
|
27
|
27
646-44323-00-00 Outer Plate, Cartridge |
646-44323-00-00 |
from US $9.21 |
||
|
28
|
28
646-44322-00-00 Insert, Cartridge |
646-44322-00-00 |
US $12.18 |
||
| replacement | |||||
|
28
|
28
6GD-G4322-00-00 Insert, Cartridge |
6GD-G4322-00-00 |
from US $12.18 |
||
|
29
|
29
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
30
|
30
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
31
|
31
6A1-44361-00-00 Tube, Water 1 |
6A1-44361-00-00 |
from US $15.58 |
||
|
32
|
32
646-44365-00-00 Damper, Water Seal 1 |
646-44365-00-00 |
US $3.74 |
||
|
34
|
34
90201-11M49-00 Washer, Plate |
90201-11M49-00 |
from US $2.69 |
||
|
35
|
35
646-45534-00-03
Shim (T:0.30Mm)
|
646-45534-00-03 |
— | ||
|
35
|
35
646-45534-00-04
Shim (T:0.40Mm)
UR |
646-45534-00-04 |
— | ||
|
35
|
35
646-45534-00-05
Shim (T:0.50Mm)
UR |
646-45534-00-05 |
— | ||
|
36
|
36
646-45551-00-00 Pinion13T |
646-45551-00-00 |
from US $28.76 |
||
|
37
|
37
990-09066-00-00
Circlip
|
990-09066-00-00 |
— | ||
| replacement | |||||
|
37
|
37
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
38
|
38
646-45560-00-00 Gear27T |
646-45560-00-00 |
US $113.71 |
||
| replacements | |||||
|
38
|
38
6GD-G5560-00-00
Gear
27T |
6GD-G5560-00-00 |
— | ||
|
38
|
38
6GD-G5560-01-00 Gear27T |
6GD-G5560-01-00 |
US $139.93 |
||
|
39
|
39
646-45567-00-03 Shim (T:0.30Mm) |
646-45567-00-03 |
US $3.40 |
||
| replacement | |||||
|
39
|
39
646-45567-00-00 Shim (T:0.30Mm) |
646-45567-00-00 |
from US $3.40 |
||
|
39
|
39
646-45567-00-04 Shim (T:0.40Mm)UR |
646-45567-00-04 |
US $2.83 |
||
| replacement | |||||
|
39
|
39
646-45567-10-00 Shim (T:0.40Mm)UR |
646-45567-10-00 |
from US $2.83 |
||
|
39
|
39
646-45567-00-05 Shim (T:0.50Mm)UR |
646-45567-00-05 |
US $3.40 |
||
| replacement | |||||
|
39
|
39
646-45567-20-00 Shim (T:0.50Mm)UR |
646-45567-20-00 |
from US $3.40 |
||
|
40
|
40
90250-03M10-00 Pin, Straight |
90250-03M10-00 |
from US $2.35 |
||
|
41
|
41
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
42
|
42
6A1-45943-00-00 Propeller (Plastic 3x7-1/4"x4" -A)3X7-1/4"X4"-A |
6A1-45943-00-00 |
from US $34.57 |
||
|
42
|
42
646-45942-01-EL Propeller, Aluminum (5-1/2 X 7-1/4"- A)3X7-1/4"X5-1/2"-A; UR |
646-45942-01-EL |
US $96.16 |
||
| replacement | |||||
|
42
|
42
646-45942-01-00 Propeller (3X7-1/4 X5-1/2 -A)3X7-1/4"X5-1/2"-A; UR |
646-45942-01-00 |
from US $91.64 |
||
|
42
|
42
646-45944-01-EL Propeller, Aluminum (4-1/2 X 7-1/4"- A)3X7-1/4"X4-1/2"-A; UR |
646-45944-01-EL |
US $93.40 |
||
| replacement | |||||
|
42
|
42
646-45944-01-00 Propeller (3X7-1/4 X4-1/2 -A)3X7-1/4"X4-1/2"-A; UR |
646-45944-01-00 |
from US $91.64 |
||
|
43
|
43
646-28193-00-00
Plug, Water Check
|
646-28193-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
