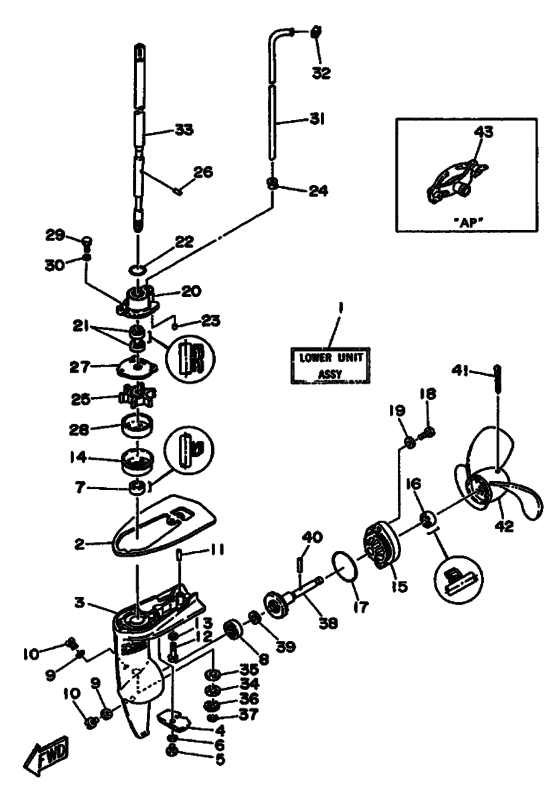

Lower casing & drive Diagram Yamaha 2 MHS
- Year
- 1995
- Model
- 2B
- Model code
- 6A1
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A1-45300-03-4D Lower Unit Assy |
6A1-45300-03-4D |
US $712.80 |
||
|
2
|
2
6A1-45181-00-4D Plate |
6A1-45181-00-4D |
US $41.86 |
||
| replacement | |||||
|
2
|
2
6GD-G5181-00-8D Plate |
6GD-G5181-00-8D |
US $56.81 |
||
|
3
|
3
6A1-45311-02-4D Casing, Lower |
6A1-45311-02-4D |
US $240.40 |
||
| replacement | |||||
|
3
|
3
6GD-G5311-00-8D Casing, Lower |
6GD-G5311-00-8D |
US $389 |
||
|
4
|
4
6L5-45251-02-00 Anode |
6L5-45251-02-00 |
US $12.47 |
||
| replacement | |||||
|
4
|
4
6L5-45251-03-00 Anode |
6L5-45251-03-00 |
from US $9.49 |
||
|
5
|
5
95895-06012-00 Bolt, Flange |
95895-06012-00 |
US $1.28 |
||
|
6
|
6
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
7
|
7
93103-11051-00 Oil Seal |
93103-11051-00 |
from US $7.08 |
||
|
8
|
8
933-06000-01-00 Bearing |
933-06000-01-00 |
from US $16.58 |
||
| replacement | |||||
|
8
|
8
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $12.46 |
||
|
9
|
9
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.39 |
||
| replacement | |||||
|
9
|
9
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
10
|
10
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
10
|
10
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.33 |
||
|
11
|
11
93605-18M04-00 Pin, Dowel |
93605-18M04-00 |
from US $2.41 |
||
|
12
|
12
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
12
|
12
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
6A1-44325-00-00 Protector, Oil Seal |
6A1-44325-00-00 |
US $10.77 |
||
| replacement | |||||
|
14
|
14
6GD-G4325-00-00 Protector, Oil Seal |
6GD-G4325-00-00 |
from US $10.27 |
||
|
15
|
15
6A1-45361-01-4D Cap, Lower Casing |
6A1-45361-01-4D |
US $46.70 |
||
| replacements | |||||
|
15
|
15
6GD-G5361-10-8D CAP, LOWER CASING |
6GD-G5361-10-8D |
US $37.86 |
||
|
15
|
15
6GD-G5361-00-8D Cap, Lower Casing |
6GD-G5361-00-8D |
US $66.22 |
||
|
16
|
16
93103-10052-00 Oil Seal |
93103-10052-00 |
from US $9.78 |
||
|
20
|
20
6A1-44312-01-94 Cover, Water Pump Housing |
6A1-44312-01-94 |
US $26.07 |
||
| replacement | |||||
|
20
|
20
6GD-G4312-00-00 Cover,water Pump Hou |
6GD-G4312-00-00 |
from US $24.66 |
||
|
26
|
26
93604-09066-00 Pin, Dowel |
93604-09066-00 |
from US $3.54 |
||
|
43
|
43
646-28193-00-00
Plug, Water Check
|
646-28193-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
