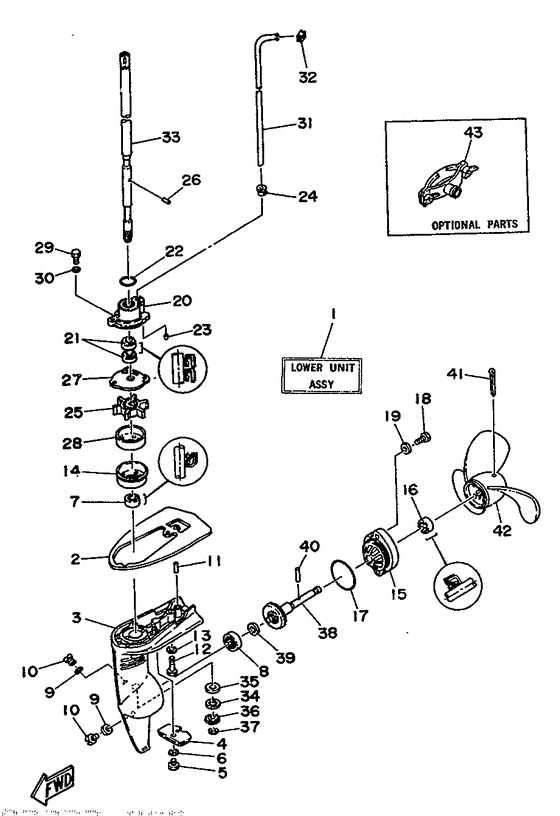

Lower casing drive 1 Diagram Yamaha 2 MHS
- Year
- 1993
- Model
- 2B
- Model code
- 6A1
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6A1-45300-03-EJ
Lower Unit Assy
|
6A1-45300-03-EJ |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6A1-45181-00-EJ
Plate
|
6A1-45181-00-EJ |
— | ||
|
03
|
03
6A1-45311-02-EJ
Casing, Lower
|
6A1-45311-02-EJ |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
6L5-45251-02-00 Anode |
6L5-45251-02-00 |
US $12.47 |
||
| replacement | |||||
|
04
|
04
6L5-45251-03-00 Anode |
6L5-45251-03-00 |
from US $9.49 |
||
|
05
|
05
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
05
|
05
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
07
|
07
93103-11051-00 Oil Seal |
93103-11051-00 |
from US $7.08 |
||
|
08
|
08
933-06000-01-00 Bearing |
933-06000-01-00 |
from US $16.58 |
||
| replacement | |||||
|
08
|
08
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $12.46 |
||
|
09
|
09
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
09
|
09
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
10
|
10
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
10
|
10
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
11
|
11
93605-08M04-00
Pin, Dowel
|
93605-08M04-00 |
— | ||
|
12
|
12
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
12
|
12
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
6A1-44325-00-00 Protector, Oil Seal |
6A1-44325-00-00 |
US $10.77 |
||
| replacement | |||||
|
14
|
14
6GD-G4325-00-00 Protector, Oil Seal |
6GD-G4325-00-00 |
from US $10.27 |
||
|
15
|
15
6A1-45361-01-EJ Cap, Lower Casing |
6A1-45361-01-EJ |
US $46.70 |
||
|
16
|
16
93103-10052-00 Oil Seal |
93103-10052-00 |
from US $9.78 |
||
|
17
|
17
93210-42101-00 O-Ring |
93210-42101-00 |
from US $2.77 |
||
|
18
|
18
97390-06014-00 Bolt |
97390-06014-00 |
US $1.56 |
||
| replacements | |||||
|
18
|
18
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
18
|
18
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
18
|
18
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
6A1-44312-01-94 Cover, Water Pump Housing |
6A1-44312-01-94 |
US $26.07 |
||
| replacement | |||||
|
20
|
20
6GD-G4312-00-00 Cover,water Pump Hou |
6GD-G4312-00-00 |
from US $24.66 |
||
|
23
|
23
93604-09068-00 Pin, Dowel |
93604-09068-00 |
from US $3.12 |
||
|
24
|
24
646-44366-01-00 Damper, Water Seal 2 |
646-44366-01-00 |
US $3.26 |
||
