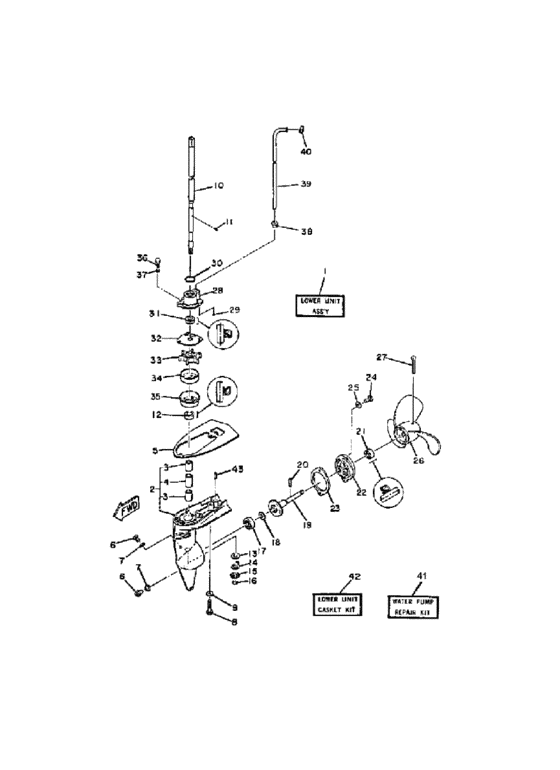

Lower drive Diagram Yamaha 2 MSH
- Year
- 1984
- Model
- 2
- Year
- 1984
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A1-45300-03-EK
Lower Unit Assembly
|
6A1-45300-03-EK |
— | ||
| replacement | |||||
|
1
|
1
6A1-45300-03-4D Lower Unit Assy |
6A1-45300-03-4D |
US $712.80 |
||
|
2
|
2
999-99018-68-00
Lower Casing Assembly
|
999-99018-68-00 |
— | ||
|
3
|
3
6A1-45316-09-00
Bushing, Dr. Shaft
|
6A1-45316-09-00 |
— | ||
|
4
|
4
6A1-45316-09-00
Bushing, Dr. Shaft
|
6A1-45316-09-00 |
— | ||
|
5
|
5
6A1-45181-00-EK
Plate
|
6A1-45181-00-EK |
— | ||
|
6
|
6
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
6
|
6
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
7
|
7
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
7
|
7
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
8
|
8
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
8
|
8
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
10
|
10
6A1-45510-01-00 Drive Shaft Assy |
6A1-45510-01-00 |
US $280.46 |
||
| replacement | |||||
|
10
|
10
6GD-G5510-00-00 Drive Shaft Assy |
6GD-G5510-00-00 |
from US $132.80 |
||
|
11
|
11
93604-09066-00 Pin, Dowel |
93604-09066-00 |
from US $3.54 |
||
|
12
|
12
93103-11051-00 Oil Seal |
93103-11051-00 |
from US $7.08 |
||
|
13
|
13
646-45534-00-03
Shim (T:0.30Mm)
|
646-45534-00-03 |
— | ||
|
13
|
13
646-45534-00-05
Shim (T:0.50Mm)
|
646-45534-00-05 |
— | ||
|
14
|
14
902-1411M-01-00
Washer, Claw
|
902-1411M-01-00 |
— | ||
|
15
|
15
646-45551-00-00 Pinion |
646-45551-00-00 |
from US $28.76 |
||
|
16
|
16
990-09066-00-00
Circlip
|
990-09066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
17
|
17
933-06000-01-00 Bearing |
933-06000-01-00 |
from US $16.58 |
||
| replacement | |||||
|
17
|
17
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $12.46 |
||
|
18
|
18
646-45567-00-03 Shim (T:0.30Mm) |
646-45567-00-03 |
US $3.40 |
||
| replacement | |||||
|
18
|
18
646-45567-00-00 Shim (T:0.30Mm) |
646-45567-00-00 |
from US $3.40 |
||
|
18
|
18
646-45567-00-05 Shim (T:0.50Mm) |
646-45567-00-05 |
US $3.40 |
||
| replacement | |||||
|
18
|
18
646-45567-20-00 Shim (T:0.50Mm) |
646-45567-20-00 |
from US $3.40 |
||
|
19
|
19
646-45560-00-00 Gear |
646-45560-00-00 |
US $113.71 |
||
| replacements | |||||
|
19
|
19
6GD-G5560-00-00
Gear
|
6GD-G5560-00-00 |
— | ||
|
19
|
19
6GD-G5560-01-00 Gear |
6GD-G5560-01-00 |
US $139.93 |
||
|
20
|
20
90250-03M10-00 Pin, Straight |
90250-03M10-00 |
from US $2.35 |
||
|
21
|
21
93103-10052-00 Oil Seal |
93103-10052-00 |
from US $9.78 |
||
|
22
|
22
646-45360-00-EK
Lowercasing Cap Ay
AY |
646-45360-00-EK |
— | ||
|
23
|
23
646-45363-00-00 Gkt, Lowercasing CpCP |
646-45363-00-00 |
US $8.64 |
||
| replacement | |||||
|
23
|
23
646-45363-A0-00 Gasket, Lower Casing CapCP |
646-45363-A0-00 |
from US $8.64 |
||
|
24
|
24
97390-06014-00 Bolt |
97390-06014-00 |
US $1.56 |
||
| replacements | |||||
|
24
|
24
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
24
|
24
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
24
|
24
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
26
|
26
6A1-45943-00-00 Propeller (Plastic 3x7-1/4"x4" -A)X 7-1/4"-A |
6A1-45943-00-00 |
from US $34.57 |
||
|
27
|
27
91490-30040-00 Pin. Cotter |
91490-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
27
|
27
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
28
|
28
999-99021-29-00 Cover |
999-99021-29-00 |
from US $40.62 |
||
|
29
|
29
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
30
|
30
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
31
|
31
93103-11051-00 Oil Seal |
93103-11051-00 |
from US $7.08 |
||
|
32
|
32
646-44323-00-00 Outer Plate, Cartridge |
646-44323-00-00 |
from US $9.21 |
||
|
33
|
33
646-44352-01-00 Impeller |
646-44352-01-00 |
from US $12.46 |
||
|
34
|
34
646-44322-00-00 Insert, Cartridge |
646-44322-00-00 |
US $12.18 |
||
| replacement | |||||
|
34
|
34
6GD-G4322-00-00 Insert, Cartridge |
6GD-G4322-00-00 |
from US $12.18 |
||
|
35
|
35
6A1-44325-00-00 Protector, Oil Seal |
6A1-44325-00-00 |
US $10.77 |
||
| replacement | |||||
|
35
|
35
6GD-G4325-00-00 Protector, Oil Seal |
6GD-G4325-00-00 |
from US $10.27 |
||
|
36
|
36
97390-05016-00 Bolt, Hexagon |
97390-05016-00 |
from US $1.10 |
||
| replacements | |||||
|
36
|
36
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
36
|
36
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
37
|
37
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
38
|
38
6E0-44366-00-00 Damper, Water Seal 2 |
6E0-44366-00-00 |
US $4.68 |
||
|
39
|
39
6A1-44361-00-00 Tube, Water 1 |
6A1-44361-00-00 |
from US $15.58 |
||
|
40
|
40
646-44365-00-00 Damper, Water Seal 1 |
646-44365-00-00 |
US $3.74 |
||
|
41
|
41
6A1-W0078-01-00 Water Pump Repair Kit |
6A1-W0078-01-00 |
from US $59.33 |
||
|
42
|
42
6A1-W0001-21-00 Lower Unit Gasket KitLower unit gasket kit |
6A1-W0001-21-00 |
US $26.29 |
||
| replacement | |||||
|
42
|
42
6A1-W0001-C1-00 Gasket Kit, Lower Unit |
6A1-W0001-C1-00 |
US $26.29 |
||
|
43
|
43
93605-18M04-00 Pin, Dowel |
93605-18M04-00 |
from US $2.41 |
||
