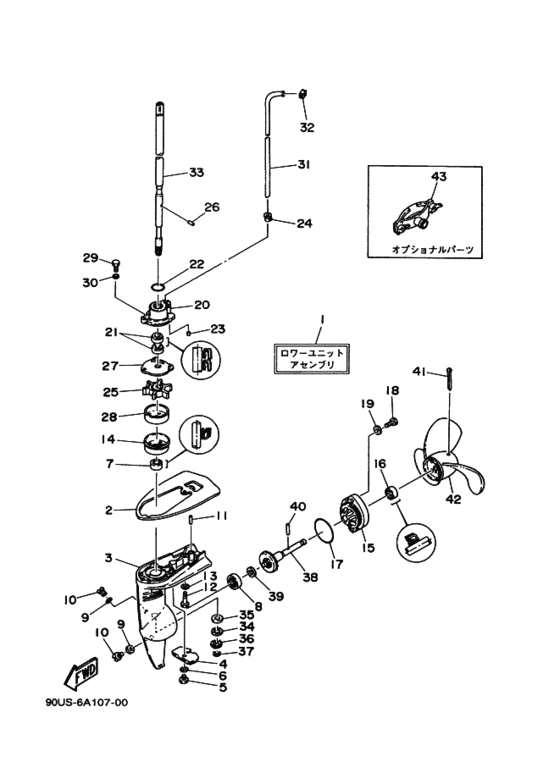

ﾛﾜｰｹｰｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 1 Diagram Yamaha 2 MHS
- Year
- 1994
- Model
- 2B
- Model code
- 6A1
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A1-45300-03-4D Lower Unit Assyロワーユニツトアセンブリ; ＊１ |
6A1-45300-03-4D |
US $712.80 |
||
|
2
|
2
6A1-45181-00-4D Plateプレート; |
6A1-45181-00-4D |
US $41.86 |
||
| replacement | |||||
|
2
|
2
6GD-G5181-00-8D Plateプレート; |
6GD-G5181-00-8D |
US $56.81 |
||
|
3
|
3
6A1-45311-02-4D Casing, Lowerケーシング，ロワー; |
6A1-45311-02-4D |
US $240.40 |
||
| replacement | |||||
|
3
|
3
6GD-G5311-00-8D Casing, Lowerケーシング，ロワー; |
6GD-G5311-00-8D |
US $389 |
||
|
4
|
4
6L5-45251-02-00 Anodeアノード; |
6L5-45251-02-00 |
US $12.47 |
||
| replacement | |||||
|
4
|
4
6L5-45251-03-00 Anodeアノード; |
6L5-45251-03-00 |
from US $9.49 |
||
|
5
|
5
95895-06012-00 Bolt, Flange |
95895-06012-00 |
US $1.28 |
||
|
6
|
6
92990-06300-00 Washer, Internal Toothワツシヤ，インターナルツース; |
92990-06300-00 |
from US $1.84 |
||
|
7
|
7
93103-11051-00 Oil Sealオイルシール; |
93103-11051-00 |
from US $7.08 |
||
|
8
|
8
933-06000-01-00 Bearing |
933-06000-01-00 |
from US $16.58 |
||
| replacement | |||||
|
8
|
8
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $12.46 |
||
|
9
|
9
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
9
|
9
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
10
|
10
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
10
|
10
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
11
|
11
93605-18M04-00 Pin, Dowel |
93605-18M04-00 |
from US $2.41 |
||
|
12
|
12
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
12
|
12
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
6A1-44325-00-00 Protector, Oil Sealプロテクタ，オイルシール; |
6A1-44325-00-00 |
US $10.77 |
||
| replacement | |||||
|
14
|
14
6GD-G4325-00-00 Protector, Oil Sealプロテクタ，オイルシール; |
6GD-G4325-00-00 |
from US $10.27 |
||
|
15
|
15
6A1-45361-01-4D Cap, Lower Casingキヤツプ，ロワーケーシング; |
6A1-45361-01-4D |
US $46.70 |
||
| replacements | |||||
|
15
|
15
6GD-G5361-10-8D CAP, LOWER CASINGキヤツプ，ロワーケーシング; |
6GD-G5361-10-8D |
US $37.86 |
||
|
15
|
15
6GD-G5361-00-8D Cap, Lower Casingキヤツプ，ロワーケーシング; |
6GD-G5361-00-8D |
US $66.22 |
||
|
16
|
16
93103-10052-00 Oil Sealオイルシール; |
93103-10052-00 |
from US $9.78 |
||
|
17
|
17
93210-42101-00 O-Ring |
93210-42101-00 |
from US $2.77 |
||
|
18
|
18
97390-06014-00 Bolt |
97390-06014-00 |
US $1.56 |
||
| replacements | |||||
|
18
|
18
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
18
|
18
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
18
|
18
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
6A1-44312-01-94 Cover, Water Pump Housingカバー，ウオータポンプハウジング; |
6A1-44312-01-94 |
US $26.07 |
||
| replacement | |||||
|
20
|
20
6GD-G4312-00-00 Cover,water Pump Houカバー，ウオータポンプハウジング; |
6GD-G4312-00-00 |
from US $24.66 |
||
|
21
|
21
93101-11M44-00 Oil Sealオイルシール; |
93101-11M44-00 |
from US $7.79 |
||
|
22
|
22
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
23
|
23
93604-09068-00 Pin, Dowel |
93604-09068-00 |
from US $3.12 |
||
|
24
|
24
646-44366-01-00 Damper, Water Seal 2ダンパ，ウオータシール; |
646-44366-01-00 |
US $3.26 |
||
|
25
|
25
646-44352-01-00 Impellerインペラ; |
646-44352-01-00 |
from US $12.46 |
||
|
26
|
26
93604-09066-00 Pin, Dowel |
93604-09066-00 |
from US $3.54 |
||
|
27
|
27
646-44323-00-00 Outer Plate, Cartridgeアウタプレート，カートリツジ; |
646-44323-00-00 |
from US $9.21 |
||
|
28
|
28
646-44322-00-00 Insert, Cartridgeインサート，カートリツジ; |
646-44322-00-00 |
US $12.18 |
||
| replacement | |||||
|
28
|
28
6GD-G4322-00-00 Insert, Cartridgeインサート，カートリツジ; |
6GD-G4322-00-00 |
from US $12.18 |
||
|
29
|
29
97390-05016-00 Bolt, Hexagon |
97390-05016-00 |
from US $1.10 |
||
| replacements | |||||
|
29
|
29
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
29
|
29
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
30
|
30
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
31
|
31
6A1-44361-00-00 Tube, Water 1チユーブ，ウオータ; |
6A1-44361-00-00 |
from US $15.58 |
||
|
32
|
32
646-44365-00-00 Damper, Water Seal 1ダンパ，ウオータシール; |
646-44365-00-00 |
US $3.74 |
||
|
33
|
33
6A1-45510-01-00 Drive Shaft Assyドライブシヤフトアセンブリ; |
6A1-45510-01-00 |
US $280.46 |
||
| replacement | |||||
|
33
|
33
6GD-G5510-00-00 Drive Shaft Assyドライブシヤフトアセンブリ; |
6GD-G5510-00-00 |
from US $132.80 |
||
|
34
|
34
90201-11M49-00 Washer, Plateワツシヤ，プレート; |
90201-11M49-00 |
from US $2.69 |
||
|
35
|
35
646-45534-00-03
Shim (T:0.30Mm)
．シム ; Ｔ：０３ＭＭ; ＵＲ |
646-45534-00-03 |
— | ||
|
35
|
35
646-45534-00-04
Shim (T:0.40Mm)
．シム ; Ｔ：０４ＭＭ; ＵＲ |
646-45534-00-04 |
— | ||
|
35
|
35
646-45534-00-05
Shim (T:0.50Mm)
．シム ; Ｔ：０５ＭＭ; ＵＲ |
646-45534-00-05 |
— | ||
|
36
|
36
646-45551-00-00 Pinion |
646-45551-00-00 |
from US $28.76 |
||
|
37
|
37
990-09066-00-00
Circlip
サークリツプ; |
990-09066-00-00 |
— | ||
| replacement | |||||
|
37
|
37
99001-06600-00 Circlipサークリツプ; |
99001-06600-00 |
from US $1.66 |
||
|
38
|
38
646-45560-00-00 Gearギヤ; |
646-45560-00-00 |
US $113.71 |
||
| replacements | |||||
|
38
|
38
6GD-G5560-00-00
Gear
ギヤ; |
6GD-G5560-00-00 |
— | ||
|
38
|
38
6GD-G5560-01-00 Gearギヤ; |
6GD-G5560-01-00 |
US $139.93 |
||
|
39
|
39
646-45567-00-03 Shim (T:0.30Mm)．シム ; Ｔ：０３ＭＭ; ＵＲ |
646-45567-00-03 |
US $3.40 |
||
| replacement | |||||
|
39
|
39
646-45567-00-00 Shim (T:0.30Mm)．シム ; Ｔ：０３ＭＭ; ＵＲ |
646-45567-00-00 |
from US $3.40 |
||
|
39
|
39
646-45567-00-04 Shim (T:0.40Mm)．シム ; Ｔ：０４ＭＭ; ＵＲ |
646-45567-00-04 |
US $2.83 |
||
| replacement | |||||
|
39
|
39
646-45567-10-00 Shim (T:0.40Mm)．シム ; Ｔ：０４ＭＭ; ＵＲ |
646-45567-10-00 |
from US $2.83 |
||
|
39
|
39
646-45567-00-05 Shim (T:0.50Mm)．シム ; Ｔ：０５ＭＭ; ＵＲ |
646-45567-00-05 |
US $3.40 |
||
| replacement | |||||
|
39
|
39
646-45567-20-00 Shim (T:0.50Mm)．シム ; Ｔ：０５ＭＭ; ＵＲ |
646-45567-20-00 |
from US $3.40 |
||
|
40
|
40
90250-03M10-00 Pin, Straight |
90250-03M10-00 |
from US $2.35 |
||
|
41
|
41
91490-30040-00 Pin. Cotter |
91490-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
41
|
41
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
42
|
42
646-45942-01-EL Propeller, Aluminum (5-1/2 X 7-1/4"- A)プロペラ ; ３Ｘ７−１／４ Ｘ５−１／２ −Ａ; ＵＲ |
646-45942-01-EL |
US $96.16 |
||
| replacement | |||||
|
42
|
42
646-45942-01-00 Propeller (3X7-1/4 X5-1/2 -A)プロペラ ; ３Ｘ７−１／４ Ｘ５−１／２ −Ａ; ＵＲ |
646-45942-01-00 |
from US $91.64 |
||
|
42
|
42
646-45944-01-EL Propeller, Aluminum (4-1/2 X 7-1/4"- A)プロペラ ; ３Ｘ７−１／４ Ｘ４−１／２ −Ａ; ＵＲ |
646-45944-01-EL |
US $93.40 |
||
| replacement | |||||
|
42
|
42
646-45944-01-00 Propeller (3X7-1/4 X4-1/2 -A)プロペラ ; ３Ｘ７−１／４ Ｘ４−１／２ −Ａ; ＵＲ |
646-45944-01-00 |
from US $91.64 |
||
|
42
|
42
6A1-45943-00-00 Propeller (Plastic 3x7-1/4"x4" -A)プロペラ ; ３Ｘ７−１／４ Ｘ４ −Ａ; ＵＲ |
6A1-45943-00-00 |
from US $34.57 |
||
|
43
|
43
646-28193-00-00
Plug, Water Check
プラグ，ウオータチエツク; ＡＰ |
646-28193-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
プラグ，ウオータチエツク; ＡＰ |
999-99999-99-00 |
— | ||
