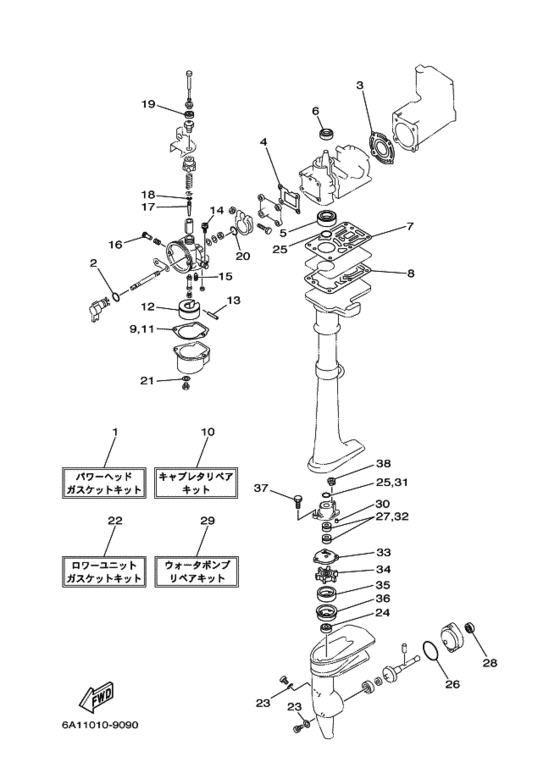

ﾘﾍﾟｱｷﾂﾄ Diagram Yamaha 2 MHS
- Year
- 2002
- Model
- 2B
- Model code
- 6A1
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A1-W0001-A2-00 Power Head Gasket Kitパワーヘツドガスケツトキツト; |
6A1-W0001-A2-00 |
from US $52.96 |
||
|
2
|
2
93210-08M29-00 O-Ring．Ｏ−リング; |
93210-08M29-00 |
from US $1.98 |
||
|
3
|
3
6A1-11181-A1-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
6A1-11181-A1-00 |
from US $25.52 |
||
|
4
|
4
6A1-13621-A0-00 Gasket, Valve Seat．ガスケツト，バルブシート; |
6A1-13621-A0-00 |
US $3.68 |
||
| replacement | |||||
|
4
|
4
6GD-E3621-00-00 Gasket, Valve Seat．ガスケツト，バルブシート; |
6GD-E3621-00-00 |
from US $3.26 |
||
|
5
|
5
93102-15M32-00 Oil Seal．オイルシール; |
93102-15M32-00 |
from US $6.94 |
||
|
6
|
6
931-02200-70-00
Oil Seal
．オイルシール; |
931-02200-70-00 |
— | ||
| replacement | |||||
|
6
|
6
931-02201-08-00 Oil Seal (20X30X7-371)．オイルシール; |
931-02201-08-00 |
from US $11.18 |
||
|
7
|
7
6A1-14613-A0-00 Gasket, Exhaust Pipe．ガスケツト，エキゾーストパイプ; |
6A1-14613-A0-00 |
from US $9.85 |
||
|
8
|
8
646-14623-A1-00 Gasket, Exhaust Pipe．ガスケツト，エキゾーストパイプ; |
646-14623-A1-00 |
from US $6.94 |
||
|
9
|
9
6A1-14384-00-00 Gasket, Float Chamber．ガスケツト，フロートチヤンバ; |
6A1-14384-00-00 |
from US $6.48 |
||
|
10
|
10
6A1-W0093-03-00 Carburetor Repair Kitキヤブレタリペアキツト; |
6A1-W0093-03-00 |
from US $102.51 |
||
|
11
|
11
6A1-14384-00-00 Gasket, Float Chamber．ガスケツト，フロートチヤンバ; |
6A1-14384-00-00 |
from US $6.48 |
||
|
12
|
12
6A1-14385-00-00 Float．フロート; |
6A1-14385-00-00 |
from US $26.49 |
||
|
13
|
13
6A1-14386-00-00 Pin, Float．ピン，フロート; |
6A1-14386-00-00 |
from US $5.81 |
||
|
14
|
14
97980-04110-00 Screw, With Washer．スクリユ，ウイズワツシヤ; |
97980-04110-00 |
from US $2.41 |
||
| replacement | |||||
|
14
|
14
985-80040-10-00 Screw, Pan Head．スクリユ，ウイズワツシヤ; |
985-80040-10-00 |
from US $1.07 |
||
|
15
|
15
6A1-14392-00-00 Valve, Needle．バルブ，ニードル; |
6A1-14392-00-00 |
from US $16.72 |
||
|
16
|
16
646-14211-02-00 Screw, Pilot Adjusting．スクリユ，パイロツトアジヤステイング; |
646-14211-02-00 |
from US $8.01 |
||
|
17
|
17
6A1-14116-10-00 Needle．ニードル; |
6A1-14116-10-00 |
from US $6.31 |
||
|
18
|
18
646-14137-00-00 Clip．クリツプ; |
646-14137-00-00 |
from US $3.12 |
||
|
19
|
19
646-14169-00-00
Cap
．キヤツプ; |
646-14169-00-00 |
— | ||
| replacement | |||||
|
19
|
19
626-14373-10-00
Cover, Plunger Cap
．キヤツプ; |
626-14373-10-00 |
— | ||
|
20
|
20
646-14229-01-00 O-Ring．Ｏ−リング; |
646-14229-01-00 |
from US $5.95 |
||
|
21
|
21
646-14198-01-00 Gasket．ガスケツト; |
646-14198-01-00 |
from US $3.26 |
||
|
22
|
22
6A1-W0001-23-00 Lower Unit Gasket Kitロワーユニツトガスケツトキツト; |
6A1-W0001-23-00 |
US $42.55 |
||
| replacement | |||||
|
22
|
22
6GD-W0001-20-00 LOWER UNIT GASKET KIロワーユニツトガスケツトキツト; |
6GD-W0001-20-00 |
from US $28.98 |
||
|
23
|
23
904-30080-20-00 Gasket．ガスケツト; |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
23
|
23
90430-08003-00 Gasket．ガスケツト; |
90430-08003-00 |
from US $1.36 |
||
|
24
|
24
93103-11051-00 Oil Seal．オイルシール; |
93103-11051-00 |
from US $7.08 |
||
|
25
|
25
932-10191-23-00 O-Ring．Ｏ−リング; |
932-10191-23-00 |
from US $1.81 |
||
|
26
|
26
93210-42101-00 O-Ring．Ｏ−リング; |
93210-42101-00 |
from US $2.77 |
||
|
27
|
27
93101-11M44-00 Oil Seal．オイルシール; |
93101-11M44-00 |
from US $7.79 |
||
|
28
|
28
93103-10052-00 Oil Seal．オイルシール; |
93103-10052-00 |
from US $9.78 |
||
|
29
|
29
6A1-W0078-02-00 Water Pump Repair Kitウオータポンプリペアキツト; |
6A1-W0078-02-00 |
US $83.45 |
||
| replacement | |||||
|
29
|
29
6GD-W0078-00-00 WATER PUMP REPAIR KIウオータポンプリペアキツト; |
6GD-W0078-00-00 |
from US $40.91 |
||
|
30
|
30
93604-09068-00 Pin, Dowel．ピン，ダウエル; |
93604-09068-00 |
from US $3.12 |
||
|
31
|
31
932-10191-23-00 O-Ring．Ｏ−リング; |
932-10191-23-00 |
from US $1.81 |
||
|
32
|
32
93101-11M44-00 Oil Seal．オイルシール; |
93101-11M44-00 |
from US $7.79 |
||
|
33
|
33
646-44323-00-00 Outer Plate, Cartridge．アウタプレート，カートリツジ; |
646-44323-00-00 |
from US $9.21 |
||
|
34
|
34
646-44352-01-00 Impeller．インペラ; |
646-44352-01-00 |
from US $12.46 |
||
|
35
|
35
646-44322-00-00 Insert, Cartridge．インサート，カートリツジ; |
646-44322-00-00 |
US $12.18 |
||
| replacement | |||||
|
35
|
35
6GD-G4322-00-00 Insert, Cartridge．インサート，カートリツジ; |
6GD-G4322-00-00 |
from US $12.18 |
||
|
36
|
36
6A1-44325-00-00 Protector, Oil Seal．プロテクタ，オイルシール; |
6A1-44325-00-00 |
US $10.77 |
||
| replacement | |||||
|
36
|
36
6GD-G4325-00-00 Protector, Oil Seal．プロテクタ，オイルシール; |
6GD-G4325-00-00 |
from US $10.27 |
||
|
37
|
37
970-95050-16-00 Bolt．ボルト; |
970-95050-16-00 |
from US $1.55 |
||
|
38
|
38
646-44366-01-00 Damper, Water Seal 2．ダンパ，ウオータシール; |
646-44366-01-00 |
US $3.26 |
||
