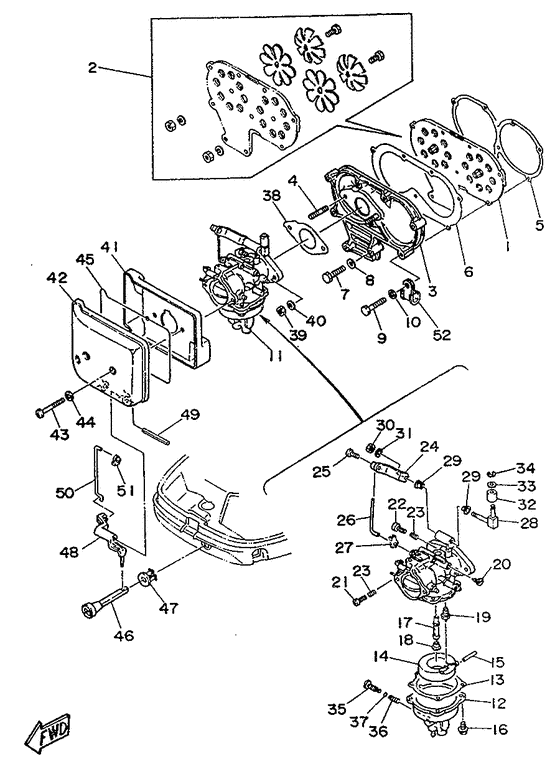

Intake Diagram Yamaha 20 MHS/L
- Year
- 1993
- Model
- 20C
- Model code
- 6A9
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
689-13610-01-00 Reed Valve Assembly |
689-13610-01-00 |
from US $200.48 |
||
|
02
|
02
689-W0004-00-00 Reed Set |
689-W0004-00-00 |
from US $45.46 |
||
|
03
|
03
648-13641-01-94 Manifold, Intake 1 |
648-13641-01-94 |
US $210 |
||
| replacement | |||||
|
03
|
03
648-13641-02-1S Manifold 1 |
648-13641-02-1S |
US $168.56 |
||
|
04
|
04
90116-06M30-00 Bolt, Stud |
90116-06M30-00 |
from US $1.98 |
||
|
05
|
05
648-13621-A0-00 Joint, Siege De Clapet |
648-13621-A0-00 |
US $8.50 |
||
| replacement | |||||
|
05
|
05
648-13621-A1-00 Gasket, Valve Seat |
648-13621-A1-00 |
from US $7.08 |
||
|
06
|
06
648-13645-A0-00 Gasket, Manifold 1 |
648-13645-A0-00 |
from US $3.04 |
||
|
07
|
07
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
07
|
07
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
09
|
09
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
6A9-14301-01-00
Carburetor Assy 1
|
6A9-14301-01-00 |
— | ||
|
12
|
12
664-14381-02-00 Body, Float Chamber |
664-14381-02-00 |
US $60.09 |
||
|
13
|
13
648-14384-01-00 Gasket, Float Chamber |
648-14384-01-00 |
from US $10.34 |
||
|
14
|
14
648-14385-00-00 Float |
648-14385-00-00 |
from US $28.76 |
||
|
15
|
15
6E5-14386-01-00 Pin, Float |
6E5-14386-01-00 |
from US $3.05 |
||
|
16
|
16
97980-04112-00 Screw, With Washer |
97980-04112-00 |
from US $2.13 |
||
| replacement | |||||
|
16
|
16
98580-04012-00 Screw, Pan Head (686) |
98580-04012-00 |
from US $1.28 |
||
|
17
|
17
6A9-14341-00-00
Nozzle, Main
|
6A9-14341-00-00 |
— | ||
|
18
|
18
689-14343-66-00 Jet, Main #133 |
689-14343-66-00 |
from US $14.73 |
||
|
19
|
19
61K-14390-00-00 Needle Valve Assembly |
61K-14390-00-00 |
from US $74.61 |
||
|
20
|
20
648-14342-31-00
Jet, Pilot (# 62)
|
648-14342-31-00 |
— | ||
|
21
|
21
664-14321-01-00 Screw, Throttle |
664-14321-01-00 |
from US $5.95 |
||
|
22
|
22
647-14323-00-00 Screw, Air Adjusting |
647-14323-00-00 |
from US $6.21 |
||
|
23
|
23
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
24
|
24
648-41210-01-00 Accel. Arm Assembly |
648-41210-01-00 |
US $32.75 |
||
|
25
|
25
650-14327-01-00 Screw |
650-14327-01-00 |
US $7.48 |
||
| replacement | |||||
|
25
|
25
664-14327-01-00 Screw |
664-14327-01-00 |
from US $7.48 |
||
|
26
|
26
656-41241-00-00 Rod, Link |
656-41241-00-00 |
from US $8.51 |
||
|
27
|
27
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
28
|
28
648-W4121-00-00 Sheave Shaft, Accel Link |
648-W4121-00-00 |
US $25.55 |
||
|
29
|
29
90386-05002-00 Bush |
90386-05002-00 |
from US $2.41 |
||
|
30
|
30
95380-05700-00 Nut |
95380-05700-00 |
from US $2.22 |
||
|
31
|
31
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
32
|
32
664-41231-00-00 Collar, Guide Pin |
664-41231-00-00 |
US $3.24 |
||
|
33
|
33
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
34
|
34
93430-04031-00 Circlip |
93430-04031-00 |
from US $2.83 |
||
|
35
|
35
646-14394-00-00 Valve, Drain |
646-14394-00-00 |
US $9.11 |
||
|
36
|
36
646-14223-01-00 Spring, Drain Valve |
646-14223-01-00 |
from US $5.14 |
||
|
37
|
37
646-14397-00-00 O-Ring |
646-14397-00-00 |
US $2.94 |
||
|
38
|
38
648-14198-A0-00 Gasket |
648-14198-A0-00 |
from US $3.40 |
||
|
39
|
39
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
40
|
40
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
41
|
41
695-14417-00-00
Cover 1
|
695-14417-00-00 |
— | ||
|
42
|
42
695-14418-01-00
Cover 2
|
695-14418-01-00 |
— | ||
|
43
|
43
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
44
|
44
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
45
|
45
695-14476-00-00 Seal |
695-14476-00-00 |
from US $16.57 |
||
| replacement | |||||
|
45
|
45
932-1162M-24-00 O-Ring |
932-1162M-24-00 |
from US $16.57 |
||
|
46
|
46
682-41271-00-00 Knob, Choke |
682-41271-00-00 |
US $4.96 |
||
| replacement | |||||
|
46
|
46
682-41271-01-00 Knob, Choke |
682-41271-01-00 |
from US $4.38 |
||
|
47
|
47
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
48
|
48
689-41252-01-00 Lever, Choke 1 |
689-41252-01-00 |
from US $11.76 |
||
|
49
|
49
91690-40048-00 Pin, Spring |
91690-40048-00 |
from US $2.98 |
||
|
50
|
50
695-41256-00-00
Rod, Choke 1
|
695-41256-00-00 |
— | ||
|
51
|
51
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
52
|
52
90461-06M01-00 Clamp |
90461-06M01-00 |
from US $5.95 |
||
