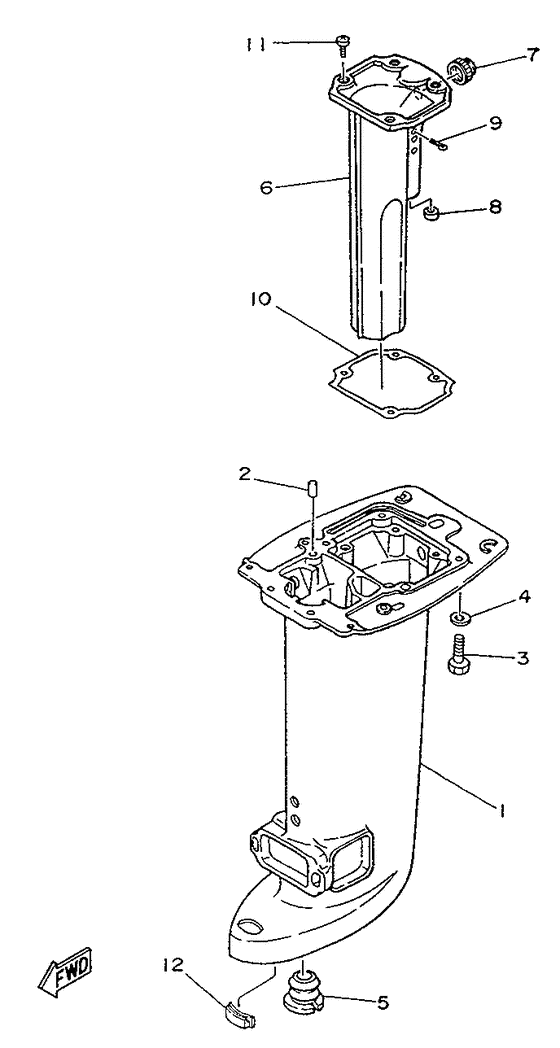

Upper casing Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
689-45111-02-4D
Casing, Upper
Ur long |
689-45111-02-4D |
— | ||
| replacements | |||||
|
01
|
01
689-45111-04-4D Casing, UpperUr long |
689-45111-04-4D |
US $429.70 |
||
|
01
|
01
689-45111-04-8D Casing, UpperUr long |
689-45111-04-8D |
US $533.59 |
||
|
01
|
01
689-45111-10-24
Casing, upper
Ur short |
689-45111-10-24 |
— | ||
|
02
|
02
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
03
|
03
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
03
|
03
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
04
|
04
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
05
|
05
689-45127-00-00
Seal
|
689-45127-00-00 |
— | ||
|
06
|
06
664-41131-01-94 Manifold, Ext. 1 |
664-41131-01-94 |
US $179.61 |
||
| replacement | |||||
|
06
|
06
664-41131-01-00 MANIFOLD, EXT. 1 |
664-41131-01-00 |
from US $99.25 |
||
|
07
|
07
664-41133-00-00 Gasket, Exhaust Manifold 1 |
664-41133-00-00 |
from US $15.80 |
||
|
08
|
08
664-41135-00-00 Gasket, Exhaust Manifold |
664-41135-00-00 |
from US $11.03 |
||
|
09
|
09
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
10
|
10
664-41134-AO-00
Gasket, exhaust manifold
|
664-41134-AO-00 |
— | ||
|
11
|
11
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
12
|
12
61N-45375-00-00 Damper, Seal |
61N-45375-00-00 |
US $6.38 |
||
