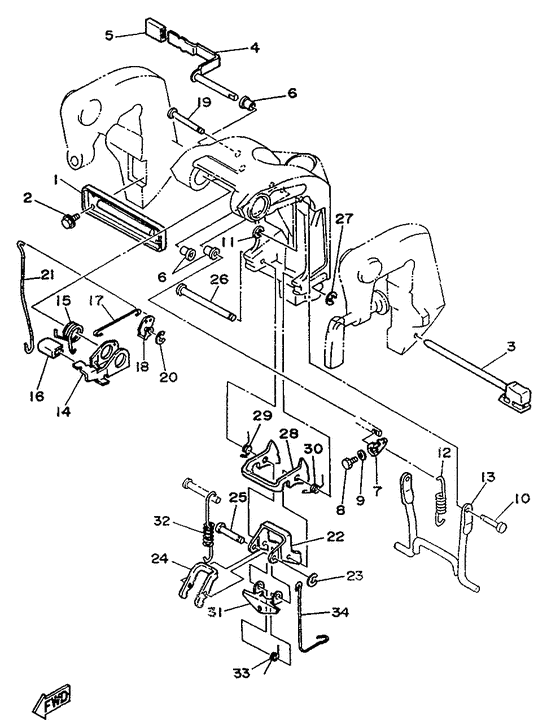

Bracket 2 Diagram Yamaha 20 MHOS/L
- Year
- 1996
- Model
- 20D
- Model code
- 6L3
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-43165-01-00 Plate, Tilt Lock |
6L2-43165-01-00 |
from US $20.97 |
||
|
03
|
03
6L2-43160-00-00 Tilt Rod Assy |
6L2-43160-00-00 |
US $24.65 |
||
| replacement | |||||
|
03
|
03
6L2-43160-01-00 Tilt Rod Assy |
6L2-43160-01-00 |
from US $18.52 |
||
|
04
|
04
6L2-43630-01-00 Tilt Lever Assy |
6L2-43630-01-00 |
from US $36.75 |
||
|
05
|
05
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.89 |
||
|
07
|
07
6L2-43682-01-00 Lever, Shallow Water Drive 2 |
6L2-43682-01-00 |
from US $5.81 |
||
|
10
|
10
6L2-43191-01-00 Shaft, Stopper |
6L2-43191-01-00 |
from US $6.23 |
||
|
13
|
13
6L2-43350-02-00 Receiver Assy |
6L2-43350-02-00 |
from US $103.76 |
||
|
14
|
14
6L2-43631-00-00 Lever, Tilt |
6L2-43631-00-00 |
from US $17.12 |
||
|
15
|
15
6L2-43188-00-00 Spring |
6L2-43188-00-00 |
from US $5.81 |
||
|
16
|
16
6L2-43633-10-00 Cover, Tilt Lever |
6L2-43633-10-00 |
from US $3.83 |
||
|
17
|
17
6L2-43611-00-00 Shaft, Tilt Lock |
6L2-43611-00-00 |
from US $3.26 |
||
|
18
|
18
6L2-43641-00-00 Lever, Tilt |
6L2-43641-00-00 |
from US $8.93 |
||
|
19
|
19
6L2-43659-00-00 Shaft, Reverse Lock |
6L2-43659-00-00 |
from US $10.48 |
||
|
21
|
21
6L2-43617-00-00 Rod, Tilt Lock |
6L2-43617-00-00 |
from US $8.64 |
||
|
22
|
22
6L2-43613-00-00 Arm, Tilt Lock |
6L2-43613-00-00 |
from US $20.54 |
||
|
24
|
24
6L2-43624-00-00 Plate, Tilt Rock |
6L2-43624-00-00 |
from US $21.82 |
||
|
25
|
25
6L2-43336-00-00 Pin |
6L2-43336-00-00 |
from US $5.81 |
||
|
26
|
26
6J8-43611-01-00 Shaft, Tilt Lock |
6J8-43611-01-00 |
from US $6.52 |
||
|
28
|
28
6L2-43614-00-00 Plate, Tilt Lock |
6L2-43614-00-00 |
from US $27.23 |
||
|
31
|
31
6L2-43615-00-00 Plate, Tilt Lock |
6L2-43615-00-00 |
from US $18.32 |
||
|
33
|
33
6L2-43657-00-00 Spring, Lock |
6L2-43657-00-00 |
from US $2.41 |
||
|
34
|
34
6L2-43676-00-00 Hook |
6L2-43676-00-00 |
from US $12.04 |
||
