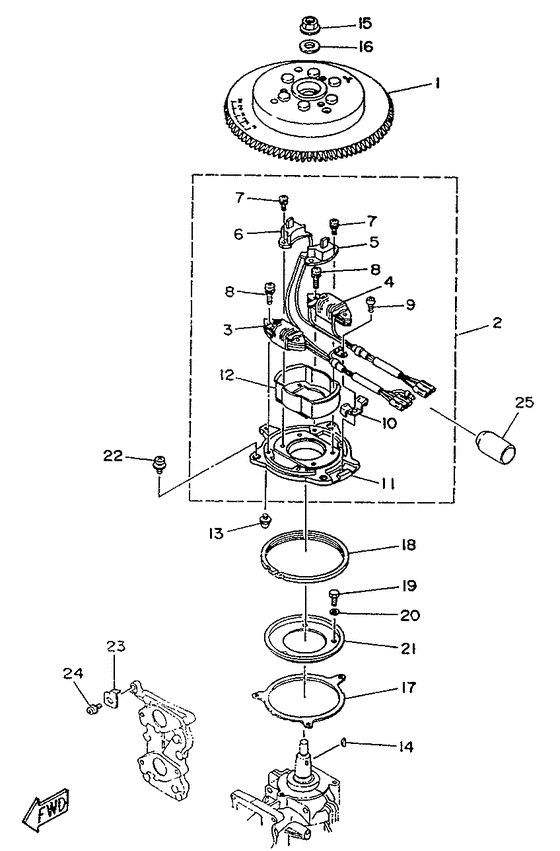

Generator Diagram Yamaha 20 MHOS/L
- Year
- 1996
- Model
- 20D
- Model code
- 6L3
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-85550-00-00 Rotor AssyUr 20dm0/25nm0 |
6L2-85550-00-00 |
US $1,077.12 |
||
| replacement | |||||
|
01
|
01
6L2-85550-10-00 Rotor AssyUr 20dm0/25nm0 |
6L2-85550-10-00 |
from US $1,077.12 |
||
|
01
|
01
6L2-85550-10-00 Rotor AssyUr 20de(r)0/25ne(r)0 |
6L2-85550-10-00 |
from US $1,077.12 |
||
|
02
|
02
6L2-85560-10-00 Base Assy |
6L2-85560-10-00 |
from US $613.80 |
||
|
03
|
03
6L2-85520-10-00 Coil, Charge |
6L2-85520-10-00 |
US $229.35 |
||
| replacement | |||||
|
03
|
03
6L2-85520-12-00 Coil, Charge |
6L2-85520-12-00 |
from US $229.35 |
||
|
04
|
04
6L2-85533-10-00 Coil, Lighting |
6L2-85533-10-00 |
from US $129.32 |
||
|
05
|
05
6L2-85580-10-00 Coil, Pulser |
6L2-85580-10-00 |
from US $248.69 |
||
|
06
|
06
6L2-85580-20-00 Coil, Pulser |
6L2-85580-20-00 |
from US $248.69 |
||
|
10
|
10
6E9-81328-70-00 Clamp |
6E9-81328-70-00 |
from US $6.23 |
||
|
11
|
11
6L2-85561-10-00 Base, Magneto |
6L2-85561-10-00 |
from US $158.26 |
||
|
12
|
12
61N-85537-00-00 Cover |
61N-85537-00-00 |
from US $29.89 |
||
|
13
|
13
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
17
|
17
6G1-41611-00-00 Retainer, Magneto Base |
6G1-41611-00-00 |
US $22.53 |
||
| replacement | |||||
|
17
|
17
6N0-G1611-00-00 Retainer Magneto |
6N0-G1611-00-00 |
from US $22.53 |
||
|
18
|
18
695-41613-00-00 Plate, Base Friction |
695-41613-00-00 |
from US $18.43 |
||
| replacement | |||||
|
18
|
18
6N0-G1613-00-00 Plate Base Friction |
6N0-G1613-00-00 |
US $19.27 |
||
|
21
|
21
6G1-41612-00-00 Retainer, Magneto Base |
6G1-41612-00-00 |
from US $20.12 |
||
|
23
|
23
6L2-81332-00-00 Plate, Timing |
6L2-81332-00-00 |
from US $6.89 |
||
|
25
|
25
6L2-82599-01-00 Cover, Connecter |
6L2-82599-01-00 |
from US $2.55 |
||
