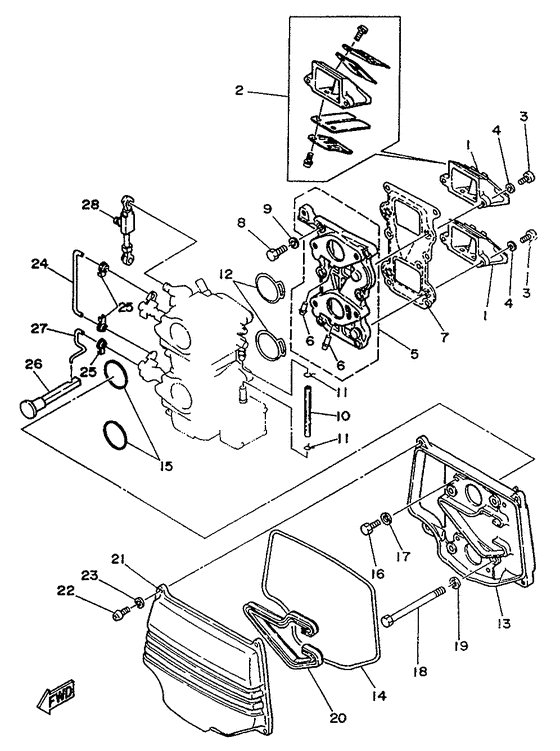

Intake Diagram Yamaha 20 MHOS/L
- Year
- 1996
- Model
- 20D
- Model code
- 6L3
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-13610-00-00 Reed Valve Assy |
6L2-13610-00-00 |
US $140.92 |
||
|
02
|
02
6L2-W0004-00-00 Reed Set |
6L2-W0004-00-00 |
US $42.54 |
||
|
05
|
05
6L2-13641-10-94 Manifold 1 |
6L2-13641-10-94 |
US $113.57 |
||
| replacement | |||||
|
05
|
05
6L2-13641-10-00 Manifold 1 |
6L2-13641-10-00 |
from US $60.86 |
||
|
06
|
06
676-14485-00-00 Pipe, Joint |
676-14485-00-00 |
from US $6.52 |
||
|
07
|
07
6L2-13621-00-00 Gasket, Valve Seat |
6L2-13621-00-00 |
from US $18.14 |
||
|
12
|
12
6L2-14198-00-00 Gasket |
6L2-14198-00-00 |
from US $3.89 |
||
|
13
|
13
6L2-14417-00-94 Cover 1 |
6L2-14417-00-94 |
US $44.21 |
||
| replacement | |||||
|
13
|
13
6L2-14417-00-00 Cover 1 |
6L2-14417-00-00 |
from US $44.21 |
||
|
14
|
14
6L2-14476-00-00 Seal |
6L2-14476-00-00 |
from US $6.23 |
||
|
20
|
20
6L2-14476-11-00 Seal |
6L2-14476-11-00 |
from US $6.23 |
||
|
21
|
21
6L2-14418-00-00 Cover 2 |
6L2-14418-00-00 |
from US $34.43 |
||
|
24
|
24
6J8-41259-00-00 Rod, Choke 3 |
6J8-41259-00-00 |
from US $4.53 |
||
|
25
|
25
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
26
|
26
6J8-41271-01-00 Knob, Choke |
6J8-41271-01-00 |
from US $8.93 |
||
|
27
|
27
6L2-41257-00-00 Rod, Choke 2 |
6L2-41257-00-00 |
from US $5.67 |
||
|
28
|
28
6L2-41217-00-00 Rod, Accel. Lever |
6L2-41217-00-00 |
from US $44.21 |
||
