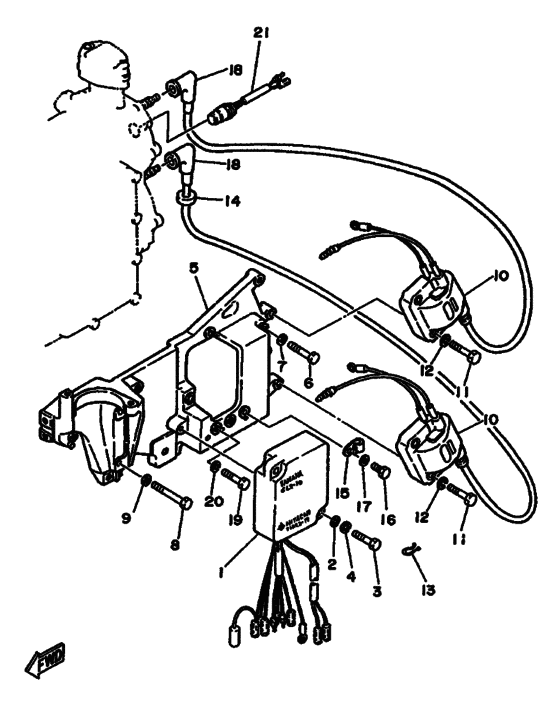

Electrical 1 Diagram Yamaha 20 MHS/L
- Year
- 1989
- Model
- 20D
- Model code
- 6L3
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-85540-10-00
Cdi Unit Assembly
|
6L2-85540-10-00 |
— | ||
|
2
|
2
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
3
|
3
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
3
|
3
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
4
|
4
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
6L2-85542-00-94 Bracket |
6L2-85542-00-94 |
US $171.32 |
||
| replacement | |||||
|
5
|
5
6L2-85542-02-00 Bracket |
6L2-85542-02-00 |
from US $171.32 |
||
|
6
|
6
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
6
|
6
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
90101-06M16-00 Bolt |
90101-06M16-00 |
from US $9.78 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
6L2-85570-M0-00
Ignition Coil Assy
|
6L2-85570-M0-00 |
— | ||
| replacement | |||||
|
10
|
10
6L2-85570-10-00
Ignition Coil Assembly
|
6L2-85570-10-00 |
— | ||
|
11
|
11
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
11
|
11
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
14
|
14
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
15
|
15
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
16
|
16
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
16
|
16
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
16
|
16
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
17
|
17
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
18
|
18
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
19
|
19
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
19
|
19
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
19
|
19
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
20
|
20
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
689-82560-00-00 Thermo Switch Assy(20DE0/25NE0 MODEL) |
689-82560-00-00 |
from US $68.25 |
||
