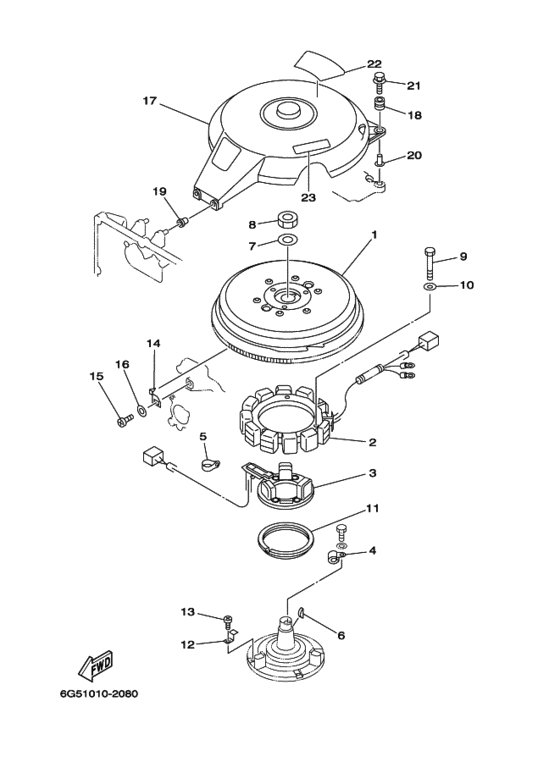

Generator Diagram Yamaha 200 ETL/XL
- Year
- 2006
- Model
- 200A
- Model code
- 60H
- Year
- 2006
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G6-85550-02-00 Rotor Assemblyロータアセンブリ; |
6G6-85550-02-00 |
US $1,257.96 |
||
|
2
|
2
6G6-85510-01-00 Stator Assyステータアセンブリ; |
6G6-85510-01-00 |
from US $710.39 |
||
|
3
|
3
6G6-85580-00-00 Coil, Pulserコイル，パルサ; |
6G6-85580-00-00 |
from US $887.04 |
||
|
4
|
4
90465-06M86-00 Clamp |
90465-06M86-00 |
from US $4.82 |
||
|
5
|
5
90464-12M00-00
Clamp
|
90464-12M00-00 |
— | ||
| replacement | |||||
|
5
|
5
90464-12158-00
Clamp
|
90464-12158-00 |
— | ||
|
6
|
6
902-80050-15-00
Key, Woodruff
キー，ウツドラフ; |
902-80050-15-00 |
— | ||
| replacement | |||||
|
6
|
6
90280-05049-00 Key, Woodruffキー，ウツドラフ; |
90280-05049-00 |
from US $5.06 |
||
|
7
|
7
90201-21M18-00 Washer, Plateワツシヤ，プレート; |
90201-21M18-00 |
from US $7.08 |
||
|
8
|
8
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
9
|
9
97013-06060-00 Boltボルト; |
97013-06060-00 |
from US $5.68 |
||
|
10
|
10
929-03066-00-00
Washer, Plate
ワツシヤ，プレート; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.39 |
||
|
11
|
11
688-41611-00-00 Retainer, Magneto Baseリテーナ，マグネツトベース; |
688-41611-00-00 |
from US $11.90 |
||
|
12
|
12
688-41612-00-00 Retainer, Magneto Baseリテーナ，マグネツトベース; |
688-41612-00-00 |
from US $5.67 |
||
|
13
|
13
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
14
|
14
6E5-81332-00-00 Plate, Timingプレート，タイミング; |
6E5-81332-00-00 |
from US $6.23 |
||
|
15
|
15
97885-06010-00 Screw, Pan Head |
97885-06010-00 |
US $1.98 |
||
| replacements | |||||
|
15
|
15
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
15
|
15
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.36 |
||
|
16
|
16
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
17
|
17
6G5-81337-00-00 Cover, Flywheelカバー，フライホイール; |
6G5-81337-00-00 |
from US $64.69 |
||
|
18
|
18
6G5-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
6G5-82317-00-00 |
from US $4.11 |
||
|
19
|
19
6A0-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
19
|
19
6A0-82317-01-00 DAMPER IGNITION COILダンパ，イグニツシヨンコイル; |
6A0-82317-01-00 |
from US $2.36 |
||
|
20
|
20
90387-06119-00 Collarカラー; |
90387-06119-00 |
from US $3.26 |
||
|
21
|
21
90119-06M65-00 Bolt,with Washer |
90119-06M65-00 |
US $3.83 |
||
| replacement | |||||
|
21
|
21
90119-06M95-00 Bolt, With Washer |
90119-06M95-00 |
US $3.83 |
||
|
22
|
22
6G5-14488-02-00 Label, Cautionラベル，コーシヨン; |
6G5-14488-02-00 |
from US $14.03 |
||
|
23
|
23
6A1-83625-01-00 Mark 5 |
6A1-83625-01-00 |
US $4.26 |
||
