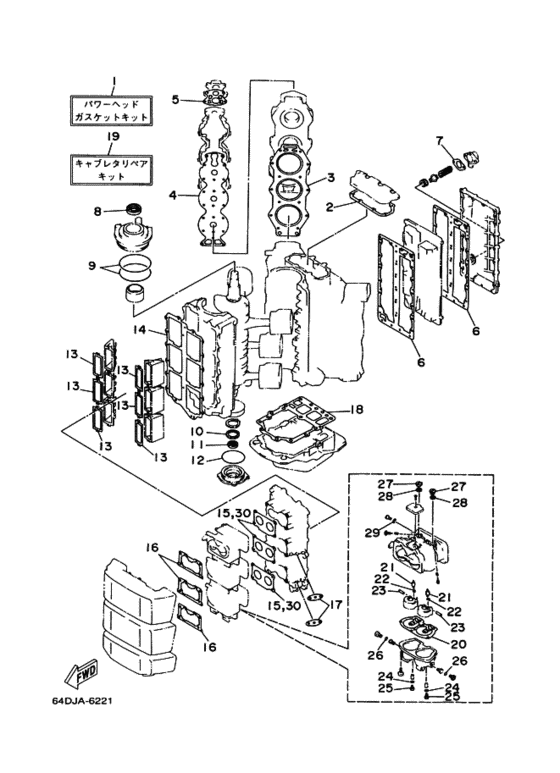

ﾘﾍﾟｱｷﾂﾄ 1 Diagram Yamaha 200 ETOL/XL
- Year
- 1998
- Model
- 200F
- Model code
- 64E
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64D-W0001-00-00 Power Head Gasket Kitパワーヘツドガスケツトキツト; |
64D-W0001-00-00 |
from US $526.09 |
||
|
2
|
2
6E5-11381-A2-00 Gasket 1．ガスケツト １; |
6E5-11381-A2-00 |
from US $8.08 |
||
|
3
|
3
6G5-11181-A1-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
6G5-11181-A1-00 |
US $84.42 |
||
| replacement | |||||
|
3
|
3
6G5-11181-A3-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
6G5-11181-A3-00 |
from US $56.22 |
||
|
4
|
4
6G5-11193-A0-00
Gasket, Head Cover 1
．ガスケツト，ヘツドカバ− １; |
6G5-11193-A0-00 |
— | ||
| replacement | |||||
|
4
|
4
6G5-11193-A2-00 Gasket, Head Cover 1．ガスケツト，ヘツドカバ− １; |
6G5-11193-A2-00 |
from US $34.29 |
||
|
5
|
5
688-12414-A1-00 Gasket, Cover．ガスケツト，カバ−; |
688-12414-A1-00 |
from US $3.04 |
||
|
6
|
6
6G5-41112-A1-00 Gasket, Exhaust Inner Cover．ガスケツト，エキゾ−ストインナカバ−; |
6G5-41112-A1-00 |
from US $20.26 |
||
|
7
|
7
6G5-11382-A1-00 Gasket 2．ガスケツト ２; |
6G5-11382-A1-00 |
from US $2.02 |
||
|
8
|
8
931-0240M-14-00
Oil Seal
．オイルシ−ル; |
931-0240M-14-00 |
— | ||
| replacement | |||||
|
8
|
8
93102-40M38-00 Oil Seal．オイルシ−ル; |
93102-40M38-00 |
from US $23.02 |
||
|
9
|
9
93211-04M36-00 O-Ring．Ｏ−リング; |
93211-04M36-00 |
US $6.80 |
||
| replacement | |||||
|
9
|
9
93211-04384-00 O-Ring (705)．Ｏ−リング; |
93211-04384-00 |
from US $4.72 |
||
|
10
|
10
93102-35M13-00 Oil Seal．オイルシ−ル; |
93102-35M13-00 |
from US $15.50 |
||
|
11
|
11
93101-22M15-00 Oil Seal．オイルシ−ル; |
93101-22M15-00 |
from US $6.40 |
||
|
12
|
12
93210-74M35-00 O-Ring．Ｏ−リング; |
93210-74M35-00 |
from US $7.08 |
||
|
13
|
13
6E5-13621-A1-00 Gasket, Valve Seat．ガスケツト，バルブシ−ト; |
6E5-13621-A1-00 |
from US $3.04 |
||
|
14
|
14
6G5-13645-A1-00 Gasket, Manifold 1．ガスケツト，マニホ−ルド １; |
6G5-13645-A1-00 |
US $17.85 |
||
| replacement | |||||
|
14
|
14
6G5-13645-A2-00 Gasket, Manifold 1．ガスケツト，マニホ−ルド １; |
6G5-13645-A2-00 |
from US $17.85 |
||
|
15
|
15
6E5-14198-A2-00 Gasket．ガスケツト; |
6E5-14198-A2-00 |
from US $6.74 |
||
|
16
|
16
6K7-14483-00-00 Gasket．ガスケツト; |
6K7-14483-00-00 |
from US $2.36 |
||
|
17
|
17
650-24431-A0-00 Gasket, Fuel Pump 1．ガスケツト，フユエルポンプ １; |
650-24431-A0-00 |
from US $1.70 |
||
|
18
|
18
6G5-45113-A1-00 Gasket, Upper Casing．ガスケツト，アツパ−ケ−シング; |
6G5-45113-A1-00 |
US $63.14 |
||
| replacement | |||||
|
18
|
18
6G5-45113-A2-00 Gasket, Upper Casing．ガスケツト，アツパ−ケ−シング; |
6G5-45113-A2-00 |
from US $49.01 |
||
|
19
|
19
64D-W0093-00-00 Carburetor Repair Kitキヤブレタリペアキツト; |
64D-W0093-00-00 |
US $221.06 |
||
| replacement | |||||
|
19
|
19
64D-W0093-01-00 Carburetor Repair Kitキヤブレタリペアキツト; |
64D-W0093-01-00 |
from US $195.82 |
||
|
20
|
20
64D-14384-00-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
64D-14384-00-00 |
US $45.59 |
||
| replacement | |||||
|
20
|
20
64D-14384-01-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
64D-14384-01-00 |
from US $45.59 |
||
|
21
|
21
6E5-14546-00-00 Valve, Needle．バルブ，ニ−ドル; |
6E5-14546-00-00 |
from US $10.82 |
||
|
22
|
22
6E5-14159-00-00 Clip．クリツプ; |
6E5-14159-00-00 |
from US $5.74 |
||
|
23
|
23
6E5-14386-02-00 Pin, Float．ピン，フロ−ト; |
6E5-14386-02-00 |
from US $4.96 |
||
|
24
|
24
61U-14959-00-00 Gasket．ガスケツト; |
61U-14959-00-00 |
from US $6.40 |
||
|
25
|
25
64D-14394-00-00 Valve, Drain．バルブ，ドレン; |
64D-14394-00-00 |
from US $20.97 |
||
|
26
|
26
6E5-14398-01-00 Gasket．ガスケツト; |
6E5-14398-01-00 |
from US $2.69 |
||
|
27
|
27
6E5-14328-01-00 Plug．プラグ; |
6E5-14328-01-00 |
from US $17.57 |
||
|
28
|
28
6E5-14979-00-00 Gasket．ガスケツト; |
6E5-14979-00-00 |
from US $3.12 |
||
|
29
|
29
6J8-14995-00-00 Gasket．ガスケツト; |
6J8-14995-00-00 |
from US $2.41 |
||
|
30
|
30
6E5-14198-A2-00 Gasket．ガスケツト; |
6E5-14198-A2-00 |
from US $6.74 |
||
