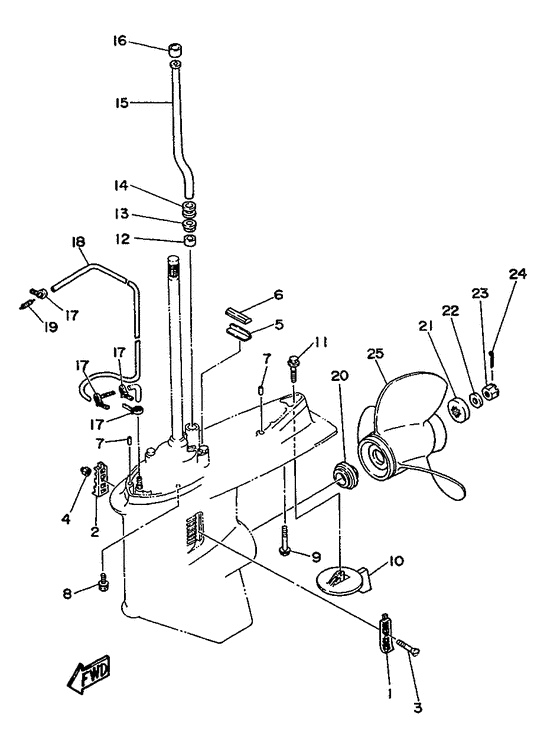

Lower casing. drive 2 Diagram Yamaha 200 ETOL/XL
- Year
- 1992
- Model
- P200
- Model code
- 61H
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Europe (General) (999)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J9-45214-01-00
Cover, Water Inlet
|
6J9-45214-01-00 |
— | ||
|
02
|
02
6J9-45215-00-00 Cover, Water Inlet 2 |
6J9-45215-00-00 |
from US $5.06 |
||
|
03
|
03
90142-05M04-00 Screw |
90142-05M04-00 |
US $3.26 |
||
| replacement | |||||
|
03
|
03
90152-05M08-00 Screw, Countersunk |
90152-05M08-00 |
from US $3.04 |
||
|
04
|
04
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
04
|
04
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
05
|
05
663-45376-00-94
Guide, Seal Damper
|
663-45376-00-94 |
— | ||
| replacement | |||||
|
05
|
05
663-45376-00-00 Guide, Seal Damper |
663-45376-00-00 |
from US $5.82 |
||
|
06
|
06
688-45375-00-00 Damper, Seal |
688-45375-00-00 |
from US $6.66 |
||
|
07
|
07
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
08
|
08
90101-10M70-00 Bolt |
90101-10M70-00 |
from US $10.34 |
||
|
09
|
09
90119-10M89-00 Bolt, With Washer |
90119-10M89-00 |
from US $9.07 |
||
| replacement | |||||
|
09
|
09
901-19100-71-00 BOLT WITH WASHER |
901-19100-71-00 |
from US $7.70 |
||
|
10
|
10
6J9-45371-01-00 Tab-Trim |
6J9-45371-01-00 |
from US $28.17 |
||
|
11
|
11
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $6.40 |
||
|
12
|
12
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
12
|
12
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.93 |
||
|
13
|
13
6E5-44312-00-00 Cover, Water Pump Housing |
6E5-44312-00-00 |
from US $2.70 |
||
|
14
|
14
6E5-44366-00-00 Damper, Water Seal 2 |
6E5-44366-00-00 |
US $5.55 |
||
|
15
|
15
6E5-44361-00-00 Tube, Water 1 |
6E5-44361-00-00 |
from US $36.70 |
||
|
16
|
16
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
16
|
16
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.93 |
||
|
17
|
17
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
17
|
17
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
17
|
17
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
18
|
18
90445-07MF0-00 Hose (L1030) |
90445-07MF0-00 |
US $27.06 |
||
| replacement | |||||
|
18
|
18
904-4507M-21-00 Hose (L1160) |
904-4507M-21-00 |
from US $16 |
||
|
19
|
19
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $6.23 |
||
|
20
|
20
6E5-45987-00-00 Spacer 1 |
6E5-45987-00-00 |
US $97.26 |
||
| replacement | |||||
|
20
|
20
63P-45987-00-00 Spacer 1 |
63P-45987-00-00 |
from US $69.77 |
||
|
21
|
21
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $27.28 |
||
|
22
|
22
92990-18200-00 Washer |
92990-18200-00 |
from US $3.69 |
||
|
23
|
23
90171-18M04-00 Nut, Castle |
90171-18M04-00 |
from US $12.46 |
||
|
24
|
24
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.36 |
||
|
25
|
25
6J9-45970-01-00 Ss Prop.14-1/2X25 (3X14-1/2""x25""-M)Propeller assy (3x14-1/2"x25"-m) Ur |
6J9-45970-01-00 |
US $1,452 |
||
| replacements | |||||
|
25
|
25
6J9-45970-B0-00 Propeller, Pro Series (27 X 14-1/2"-M)Ur |
6J9-45970-B0-00 |
US $1,452 |
||
|
25
|
25
66K-45972-B0-00 Propeller (3X14-1/2"x25")Ur |
66K-45972-B0-00 |
from US $1,308.15 |
||
|
25
|
25
6J9-45972-01-00 Propeller (3X14-1/2""x23""-M)Ur |
6J9-45972-01-00 |
US $1,452 |
||
| replacement | |||||
|
25
|
25
66K-45974-B0-00 Propeller (3X 14-1/2"x23")Ur |
66K-45974-B0-00 |
from US $1,308.15 |
||
|
25
|
25
6J9-45974-01-00 Propeller (3X14-1/2"x27"-M)Ur |
6J9-45974-01-00 |
US $1,452 |
||
| replacement | |||||
|
25
|
25
66K-45970-B0-00 Propeller (3X14-1/2"x27")Ur |
66K-45970-B0-00 |
from US $1,308.15 |
||
|
25
|
25
6J9-45976-00-00 Propeller (3X14-1/2"x21"-M)Ur |
6J9-45976-00-00 |
US $1,452 |
||
| replacement | |||||
|
25
|
25
66K-45976-B0-00 Propeller (3X14-1/2"x 21")Ur |
66K-45976-B0-00 |
from US $1,308.15 |
||
